SKU: DOMO20VXT

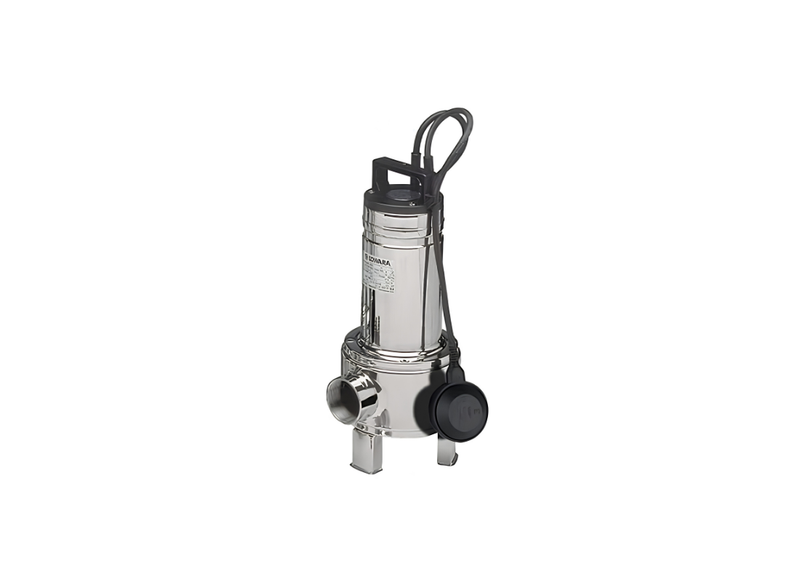

Lowara DOMO20VXT Stainless Steel IPX8 Rated Submersible Drainage Pump for Heavy Waste with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Addressing facility workloads and long-term operating costs, the DOMO 20VXT Vortex impeller model delivers an efficient fluid extraction rate. The Lowara DOMO 20VXT incorporates an optimized pathway to support heavy-duty wastewater processing without excessive energy loss. This configuration mitigates clogging during continuous duty cycles.
The electrical drive assembly utilizes a powerful 1.5 kW Three-phase 415v motor, managing heavy loads while drawing a steady 3.59 Amps. The dry motor design relies on the ambient liquid medium for vital thermal dissipation. This layout enables continuous pumping safely within the strict maximum 35°C liquid temperature boundary.
Engineered for massive hydraulic output, this unit achieves a maximum flow of approximately 550 L/Min and a max head of 10.6 m. The 50 mm port dimensions facilitate the rapid transfer of contaminated fluids. The advanced vortex impeller safely maneuvers liquids containing suspended solids up to 50 mm without structural degradation.
The exterior architecture features a 304 Stainless Steel casting, delivering a defensive layer against abrasive environments. Internal components are tightly protected from moisture infiltration by the DRIVELUB multiple seal system. This setup incorporates an oil chamber, a V-ring, and a silicon carbide mechanical seal for barrier protection.
Features
- Features a heavy-duty Vortex Impeller allowing unobstructed fluid passage.
- Engineered with strict IPX8 moisture protection standards.
- Designed to safely operate continuously at a 5-meter maximum immersion depth.
- Includes a specialized DRIVELUB oil chamber for lip seal lubrication.
- Constructed with standard Class 155°C (F) motor insulation.
- Equipped with an extreme-barrier silicon carbide mechanical seal.
SPECIFICATIONS
| Max Flow | 550 L/Min |
| Max Head | 10.6 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.59 Amps |
| Suitable For | Effluent, Septic tanks |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Under standard power distribution, what motor power in kilowatts and operating voltage feed energize this submersible sewage wastewater pump?
Employing by facility power panels, the DOMO20VXT connects to 380–415 V, 50 Hz, three-phase with an electric motor rated at 1.5 kW (2.0 HP) requiring 3.59 A.
Across wet pit installations, what immersion depth boundaries and fluid operating temperature apply to this submersible sewage wastewater pump?
Supporting under wet well operations, the DOMO-20-VXT sustains a maximum 5 m immersion depth with liquid operating temperatures up to 35°C and manages 50 mm solids passage.
How high can water be elevated upward through vertical lines by this submersible sewage wastewater pump?
Discharging across building service lines, the DOMO 20 VXT generates a peak dynamic lift head of approximately 10.6 m under upward push.
What peak fluid flow rate in liters per minute and connection port dimensions govern this submersible sewage wastewater pump?
Displacing across facility piping networks, the DOMO_20_VXT discharges a maximum delivery flow volume of approximately 550 L/Min utilizing Rp 2" (50 mm) discharge threaded port.
How do the alloy casing components and mechanical seal metallurgy prevent corrosion in this submersible sewage wastewater pump?
Supplied with corrosion-resistant alloy materials, the DOMO20VXT combines alloy metallurgy of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals with precision mechanical seals to defend against chemical attack.
