SKU: DOMO7VX

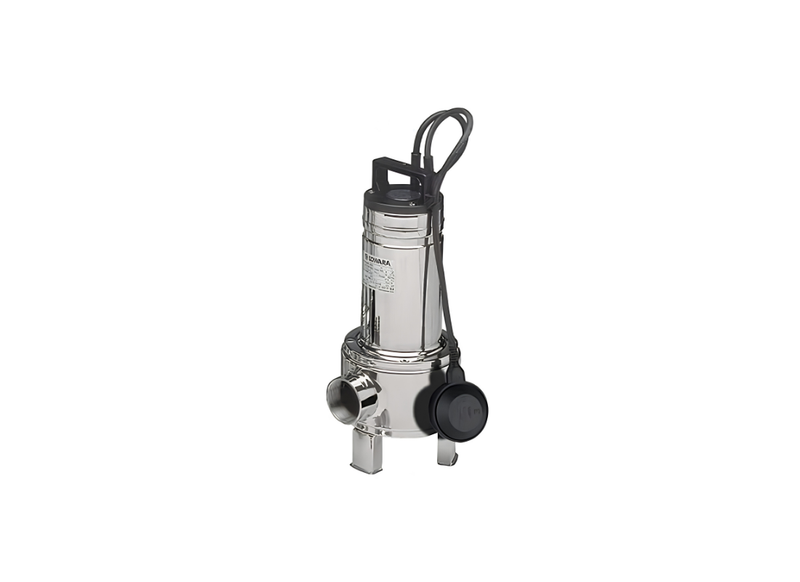

Lowara DOMO7VX Stainless Steel IPX8 Rated Submersible Drainage Pump for Sump Systems with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Focusing on minimizing operational blockages and long-term operating costs, this DOMO 7VX Vortex Impeller, Auto Float system is a specialized solution for heavily contaminated fluids. The Lowara DOMO 7VX incorporates a highly specific low-friction hydraulic pathway intended to support the draining of flooded basements. By maintaining a stable internal current, the assembly effectively mitigates wear patterns.
This unit utilizes a Vortex Impeller to generate a powerful internal fluid vortex, allowing suspended solids to pass through the casing with minimal direct contact. The entire external casting is composed of 304 Stainless Steel, creating a highly resilient structural boundary that resists both chemical and physical degradation. This material strategy is configured for continuous submersion.
The electrical core is driven by a 0.55 kW Single-phase 240v motor that draws a rated current of 3.91 Amps. The dry motor design effectively dissipates internal heat through the surrounding fluid, enabling extended operational cycles without breaching the maximum 35°C liquid temperature limitation. This electrical calibration delivers dependable mechanical torque.
Through precision fluid dynamics, the pump can reach a maximum flow capacity of approximately 260 L/Min and sustain a maximum head of 7.1 m. The 40 mm inlet and outlet parameters are precisely dimensioned to handle liquids efficiently. Furthermore, the unit is protected by the sophisticated DRIVELUB multiple seal system, utilizing an oil chamber and a robust silicon carbide mechanical seal.
Features
- Engineered with a high-performance Vortex Impeller.
- Constructed utilizing a heavy-duty 304 Stainless Steel housing.
- Incorporates a DRIVELUB multiple seal system to prevent fluid infiltration.
- Equipped with an advanced silicon carbide mechanical seal.
- Specifically developed to handle liquids containing suspended solids.
- Pre-assembled with an integrated float switch.
- Designed with IPX8 protection and Class 155°C (F) electrical insulation.
SPECIFICATIONS
| Max Flow | 260 L/Min |
| Max Head | 7.1 m |
| Power | 0.55 kW / 240v |
| Rated Current | 3.91 Amps |
| Suitable For | Flooded basements |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
For secure power installation, what electrical supply voltage and motor kilowatt rating are specified on this submersible sewage wastewater pump?
Featuring under steady electrical current, the DOMO7VX connects to 220–240 V, 50 Hz, single-phase with an electric motor rated at 0.55 kW (0.75 HP) requiring 3.91 A.
Under sustained submergence, what maximum immersion depth and fluid operating temperature apply to this submersible sewage wastewater pump?
Certified across submerged utility sumps, the DOMO-7-VX operates with a maximum 5 m immersion depth across operating liquid temperatures up to 35°C and manages 35 mm solids passage.
What peak upward elevation head is developed by this submersible sewage wastewater pump under nominal operation?
Achieving in commercial piping networks, the DOMO 7 VX generates a peak dynamic lift head of approximately 7.1 m under upward push.
What volumetric delivery in liters per minute and discharge port sizing are certified for this submersible sewage wastewater pump?
Issuing into plant fluid networks, the DOMO_7_VX discharges a maximum delivery flow volume of approximately 260 L/Min utilizing Rp 1-1/2" (40 mm) discharge threaded port.
Which alloy metallurgy specifications and mechanical face seal metallurgy deliver corrosion protection in this submersible sewage wastewater pump?
Created against corrosive liquid exposure, the DOMO7VX combines alloy metallurgy of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals with precision mechanical seals to defend against chemical attack.
