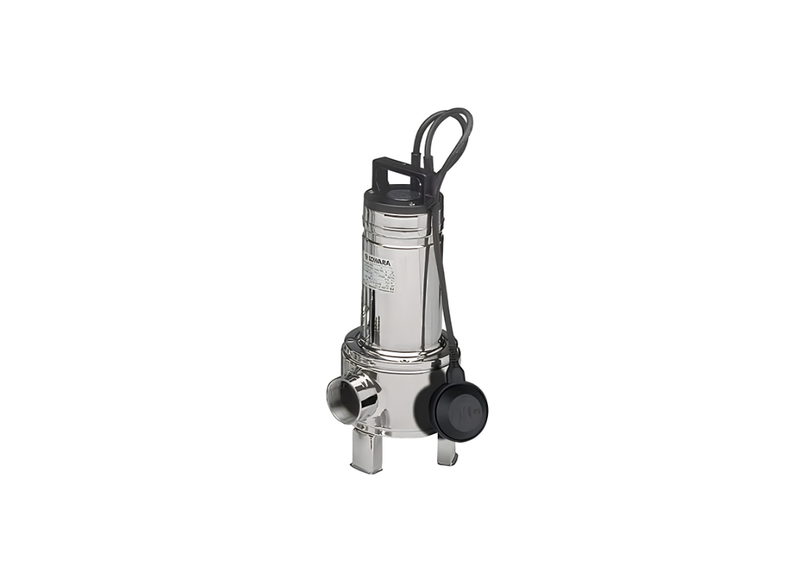

Lowara DOMO7VXT Stainless Steel Three-Phase Submersible Drainage Pump for Flood Relief with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Addressing extreme particulate build-up and challenging environments, the DOMO 7VXT Vortex Impeller model safely processes contaminated wastewater. The Lowara DOMO 7VXT utilizes a specialized hydraulic pathway intended to support uninterrupted fluid transit. The internal configuration accommodates demanding extraction without experiencing mechanical clogging.
The drive system relies on a 0.55 kW Three-phase 415v power configuration pulling 1.48 Amps. This dry motor assembly effectively transfers operational heat into the surrounding liquid medium, ensuring thermodynamic stability. The motor is engineered to sustain continuous submersion within the maximum 35°C liquid temperature boundary.
Delivering steady hydraulic performance, this unit achieves a maximum flow of approximately 260 L/Min and maintains a max head of 7.1 m. The 40 mm port dimensions facilitate the passage of complex effluents containing suspended solids up to 35 mm. This design protects the housing from abrasive elements during extended operations.
Constructed from heavy-duty 304 Stainless Steel, the outer casing forms a defensive layer against physical degradation. A DRIVELUB multiple seal system safeguards the drive shaft from moisture infiltration. Integrating an advanced silicon carbide mechanical seal and an oil chamber, the pump provides a continuous barrier against harsh environments.
Features
- Features a highly durable Vortex Impeller configuration.
- Engineered with an IPX8 protection classification.
- Equipped with a lip seal continuously lubricated by the DRIVELUB system.
- Includes standard Class 155°C (F) electrical insulation.
- Designed to operate safely up to a maximum immersion depth of 5 meters.
- Incorporates a specialized V-ring for added moisture defense.
SPECIFICATIONS
| Max Flow | 260 L/Min |
| Max Head | 7.1 m |
| Power | 0.55 kW / 415v |
| Rated Current | 1.48 Amps |
| Suitable For | Effluent, Septic tanks |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 35°C |
| Outlet Size | 40 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Through elevated distribution lines, what dynamic elevation head does this submersible sewage wastewater pump provide?
Attaining in multi-story elevation loops, the DOMO7VXT produces a maximum dynamic head of approximately 7.1 m to lift fluid upward.
Across plant water pipework, what peak flow volume and outlet connection diameter does this submersible sewage wastewater pump sustain?
Transmitting into building service circuits, the DOMO-7-VXT delivers a peak delivery flow rate of approximately 260 L/Min discharging through Rp 1-1/2" (40 mm) discharge threaded port.
Which alloy construction standards and mechanical face seal materials ensure corrosion resistance in this submersible sewage wastewater pump?
Furnished against fluid chemical attack, the DOMO 7 VXT features alloy construction of AISI 304 stainless steel motor casing and pump body with Drivelub mechanical seals with mechanical face seals to resist corrosion and chemical attack.
What electrical supply voltage and motor kilowatt power rating are featured on this submersible sewage wastewater pump?
Utilizing under nominal voltage supply, the DOMO_7_VXT is powered by an electric motor rated at 0.55 kW (0.75 HP) running on 380–415 V, 50 Hz, three-phase with a current draw of 1.48 A.
What permissible operating liquid temperature and maximum immersion depth limit in meters are supported by this submersible sewage wastewater pump?
Supporting in wet sump installations, the DOMO7VXT operates with a maximum 5 m immersion depth across operating liquid temperatures up to 35°C and manages 35 mm solids passage.
