SKU: TLCN 25-6L

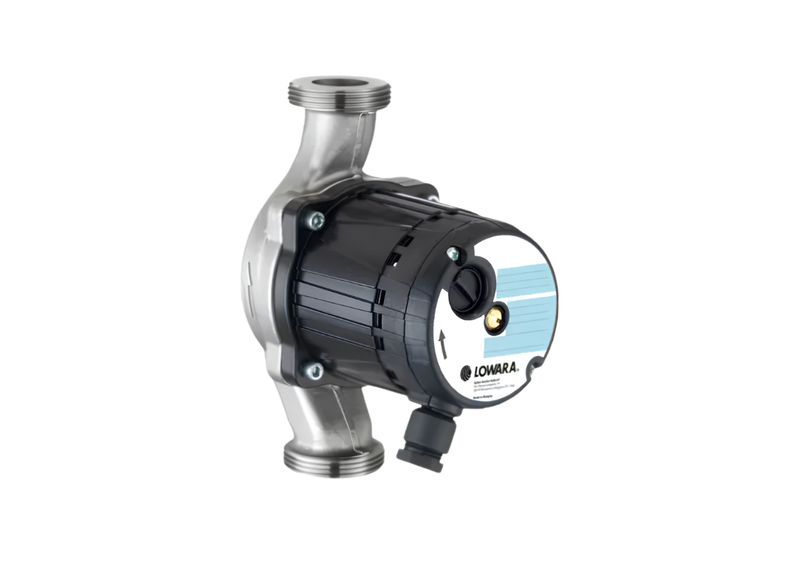

Lowara TLCN 25-6L Stainless Steel Extended Circulator for Residential Hot Water with Composite Impeller
Australia-Wide
(08) 9240 2992
Official Lowara
Peace of Mind
Product Overview
Residential sanitary hot water circulation with 180 mm port-to-port installation dimensions is addressed by the Lowara TLCN 25-6L. This wet rotor circulator pump is specifically designed for higher volume installations and specialised retrofit applications where extended connection spacing is required.
Three speed manual selector enables performance matching to system requirements. On 240 V single-phase supply at Speed 3, the pump consumes 80 W drawing 0.34 A. Maximum head is approximately 6.2 m with flow reaching 70 L/Min at the rated operating point.
The pump body is manufactured from stainless steel with composite material impeller. Ceramic axial and radial bearings are lubricated by the pumped liquid, while the ceramic wear ring provides wear resistance. The extended 180 mm port-to-port configuration accommodates installations with specific dimensional requirements.
Installation is suitable for horizontal or vertical piping with motor axis horizontal. Threaded connections are available in multiple sizes. Liquid temperature capability ranges from +2°C to +110°C with recommended maximum of 65°C for sanitary water. Maximum operating pressure is 10 bar PN10 with IP44 protection class.
FEATURES
- Extended 180 mm port-to-port design for retrofit installations
- Stainless steel pump body for potable water compatibility
- Three speed manual selector for operational flexibility
- Ceramic bearings and wear ring for extended service life
- Composite impeller for hydraulic efficiency
- Wet rotor design with pumped liquid lubrication
- Integrated terminal box for simplified electrical connection
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the port-to-port dimension of this replacement circulator?
The TLCN 25-6L features an extended 180 mm port-to-port spacing designed specifically for retrofit plumbing installations.
How much power does this pump draw at maximum speed?
Operating at Speed 3 on a 240 V supply, the TLCN-25-6L consumes 80 W while drawing 0.34 A.
Is this circulator body suitable for continuous potable water contact?
A robust stainless steel pump casing ensures the TLCN 25 6L is completely compatible with sanitary domestic drinking water.
How are the internal bearings lubricated during operation?
Ceramic axial and radial bearings in the TLCN_25_6L are continuously lubricated by the pumped liquid.
What maximum head and flow does this retrofit pump provide?
At maximum output, the TLCN 25-6L produces a head of approximately 6.2 m and a flow rate of 70 L/Min.
