SKU: 96104205

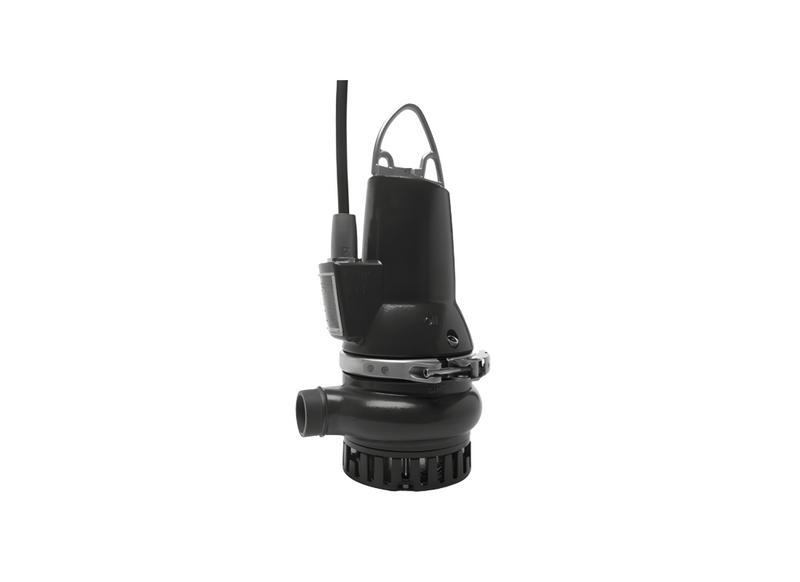

Grundfos DP10.50.09.Ex.2.50B Cast Iron Explosion-Proof Wastewater Pump for Groundwater with Semi Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Engineered to assist with severe operational loads in commercial wastewater networks, the DP10.50.09.Ex.2.50B Grundfos DP pump is a portable pump for both domestic and industrial applications. This robust unit helps manage incoming fluid accumulation, maintaining stability during continuous submerged deployment in extraction setups.
Fluid dynamics within the volute are calibrated to handle a maximum flow rate of approximately 708 L/Min alongside a maximum vertical head of 13.8 meters. The primary pathway utilizes a precision semi-open impeller maintaining a 10 mm free passage, developed to process particulates securely without causing internal blockages.
Constructed from EN-GJL-250 cast iron, the primary housing assists in resisting abrasive wear. An intermediate oil chamber pre-filled with non-toxic oil is intended to support the 0.9 kW three-phase motor by providing thermal buffering. A double shaft seal cartridge facilitates field replacements without specialized hydraulic tools.
Registering a net weight of 44.5 kg, this explosion-proof machine is suitable for deployment in hazardous zones. The system supports guide rail installations utilizing an automatic coupling arrangement keyed to P/N 97644486 to grant maintenance access without wet well entry. A hermetically sealed plug employs polyurethane potting to restrict ambient moisture.
Features
- Engineered for maximum operating pressures reaching up to 6 bar
- Operational liquid temperature tolerance extending from 0 to 40 °C
- Specified to securely handle up to 30 cyclic motor starts per hour
- Standard operational current load accurately specified at 2.8 Amps
- Classified strictly with an IP68 enclosure and Class F insulation
- Internal kinetic impeller components cast from EN-GJS-500-7 iron
- Fitted internally with premium deep-groove greased-for-life bearings
SPECIFICATIONS
| Max Flow | 708 L/Min |
| Max Head | 13.8 m |
| Power | 0.9 kW / 415v |
| Rated Current | 2.8 Amps |
| Suitable For | Groundwater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across heavy effluent collection pits, what peak volumetric throughput is maintained under pressure?
During peak fluid influx, Grundfos DP10.50.09.Ex.2.50B maintains an operational volumetric throughput of 708 L/Min.
In municipal stormwater lift chambers, what peak dynamic lift is reached during active evacuation?
Municipal collection wet wells deploy DP10.50.09.Ex.2.50B to achieve a peak dynamic elevation of 13.8 m.
What power capacity, supply line connection, and full-load current run this submersible motor?
Powering this submerged assembly, DP10-50-09-Ex-2-50B features a 0.9 kW motor connected to a three-phase 415 V supply line drawing 2.8 Amps.
What internal clearance protects this semi-open drainage pump from debris accumulation?
The semi-open runner in DP10 50 09 Ex 2 50B provides a dedicated 10 mm free spherical passage, allowing waste to clear without lodging.
What guide rail auto-coupling part number secures this unit to wet pit discharge elbows?
Wet pit deployment of DP10/50/09/Ex/2/50B utilizes the dedicated Grundfos auto-coupling system (97644486) for dual guide rail mounting.
