SKU: 96877504

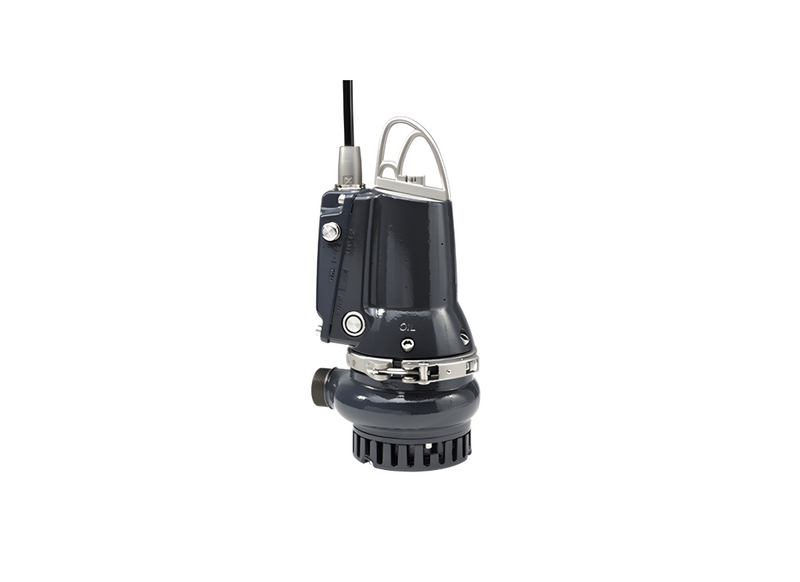

Grundfos DP10.50.15.E.Ex.2.50B Cast Iron AUTOADAPT Wastewater Pump for Surface Water with Semi Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Calibrated for highly stable internal fluid routing across complex evacuation setups, the DP10.50.15.E.Ex.2.50B Grundfos DP AUTOADAPT pump is a portable pump for both domestic and industrial applications. This intelligent model dynamically manages level sensing and dry-running protection, engineered to function autonomously without external float switches.
System flow parameters are optimized to deliver a highly consistent output of approximately 714 L/Min, complemented by a maximum vertical head of 19.5 meters. The central pathway is driven by a precision semi-open impeller maintaining a 10 mm free passage, developed specifically to process commercial wastewater without stalling kinetic operation.
A resilient EN-JL-1030 cast iron casing is utilized to shield sensitive electronic components from abrasive fluid impacts. To properly support the 1.5 kW three-phase motor during continuous cycles, an intermediate non-toxic oil chamber provides proactive thermal cooling. This reservoir also actively lubricates the fast-replacement double shaft seal.
Weighing 49.1 kg, this explosion-proof machine integrates safely into heavily regulated hazardous industrial zones. It is configured to facilitate guide rail installations using an automatic coupling base requiring P/N 97644486, enabling technicians to conduct service extraction without wet well entry. A hermetically sealed plug restricts external moisture.
Features
- Safe operational capability in maximum liquid temperatures up to 40 °C
- Engineered for maximum internal operating pressures reaching up to 6 bar
- Standard dynamic current draw formally established at 3.8 Amps
- Internal impeller constructed entirely from durable EN-GJS-500-7 cast iron
- Integrated random start delay logic helps manage general power recovery
- Alarm relay output available for required external acoustic or visual indicators
- Self-calibrating functionality integrated directly into the core sensor controller
SPECIFICATIONS
| Max Flow | 714 L/Min |
| Max Head | 19.5 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.8 Amps |
| Suitable For | Surface Water |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In municipal stormwater lift chambers, what peak volumetric rate is evacuated per minute?
Municipal collection wet wells utilize Grundfos DP10.50.15.E.Ex.2.50B to displace wastewater at a peak rate of 714 L/Min.
Within municipal wastewater pumping chambers, what peak vertical lift is developed during cycles?
Deep collection wet wells operate with DP10.50.15.E.Ex.2.50B attaining a maximum hydraulic lift of 19.5 m.
What are the electrical power consumption, operating voltage rating, and full-load amperage of this pump?
Submerged electrical specs for DP10-50-15-E-Ex-2-50B feature a 1.5 kW motor connected to a three-phase 415 V feed drawing 3.8 Amps.
What spherical passage dimension accommodates particulates across this semi-open assembly?
Large wastewater solids traverse DP10 50 15 E Ex 2 50B freely thanks to an expansive 10 mm spherical through-let designed into the semi-open channel.
What integrated electronic monitoring features eliminate external switchgear cabinets in drainage pits?
Intelligent control routines in DP10/50/15/E/Ex/2/50B regulate automated alternation between units, interfacing directly with the Grundfos auto-coupling system (97644486) for rigid wet well mounting.
