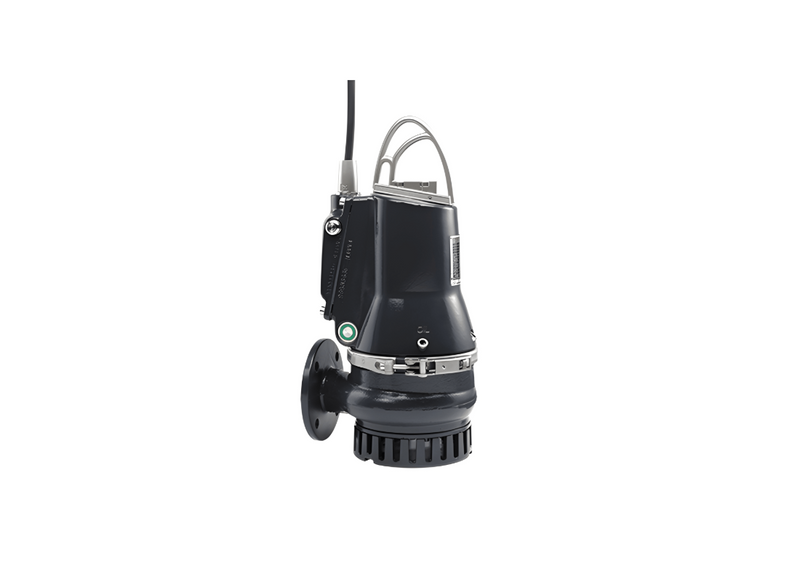

Grundfos DP10.65.26.E.Ex.2.50B Cast Iron AUTOADAPT Wastewater Pump for Groundwater with Semi Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing the severe operational parameters found in autonomous fluid evacuation systems, the DP10.65.26.E.Ex.2.50B Grundfos DP AUTOADAPT pump is a portable pump for both domestic and industrial applications. Tailored for complex groundwater extraction, this unit utilizes advanced control logic to help regulate pump alternation securely without floats.
Fluid translation pathways are tightly controlled to generate a maximum flow output of approximately 666 L/Min, complemented by a maximum vertical lift of 24.9 meters. A heavily reinforced semi-open impeller serves as the primary kinetic component, retaining a rigid 10 mm free passage to move small particulate matter efficiently through the system.
An industrial-grade EN-JL-1030 cast iron housing is deployed to shield internal electronics from abrasive sub-surface impacts. To support the 2.6 kW three-phase motor during continuous cycles, an intermediate oil chamber actively dissipates mechanical heat. This thermal management helps the double shaft seal cartridge receive reliable lubrication.
Weighing exactly 66.8 kg, this model complies with necessary explosion-proof protection standards for integration into commercial facilities. It is configured to facilitate guide rail installations utilizing an automatic coupling arrangement tied to P/N 96090992, ensuring service extraction without wet well entry. A hermetically sealed plug limits moisture.
Features
- Electrical current consumption securely rated at 5.8 Amps
- Industrial grade 65 mm diameter DIN flanged discharge port
- Primary internal impeller constructed from EN-GJS-500-7 cast iron
- Safe operational capability in liquid temperatures up to 40 °C
- Maximum hydraulic system pressure tolerance specified at 6 bar
- Self-calibrating functionality with an integrated alarm relay output
- Built-in anti-seizing system designed to help prevent impeller stalling
SPECIFICATIONS
| Max Flow | 666 L/Min |
| Max Head | 24.9 m |
| Power | 2.6 kW / 415v |
| Rated Current | 5.8 Amps |
| Suitable For | Groundwater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
For regional sewage collection networks, what peak volumetric flow throughput is sustained each minute?
Displacing fluid through municipal mains, Grundfos DP10.65.26.E.Ex.2.50B maintains a maximum discharge throughput of 666 L/Min.
In municipal lift stations, what peak dynamic elevation does this submersible sewage pump achieve?
Municipal sewage lift stations utilize DP10.65.26.E.Ex.2.50B to develop a peak delivery head of 24.9 m.
What motor power rating, electrical supply connection, and operational current drive this assembly?
The motor in DP10-65-26-E-Ex-2-50B produces a power capacity of 2.6 kW when connected to a three-phase 415 V line at 5.8 Amps.
What internal clearance dimension prevents particulate obstruction in this drainage volute?
Smooth solids movement is facilitated in DP10 65 26 E Ex 2 50B by its semi-open runner, providing a generous 10 mm spherical clearance.
How does the built-in control logic manage automated alternation across wet well sumps?
Integrated electronic level sensors in DP10/65/26/E/Ex/2/50B regulate automated cycles directly, docking precision-sealed onto the Grundfos auto-coupling system (96090992) in wet wells.
