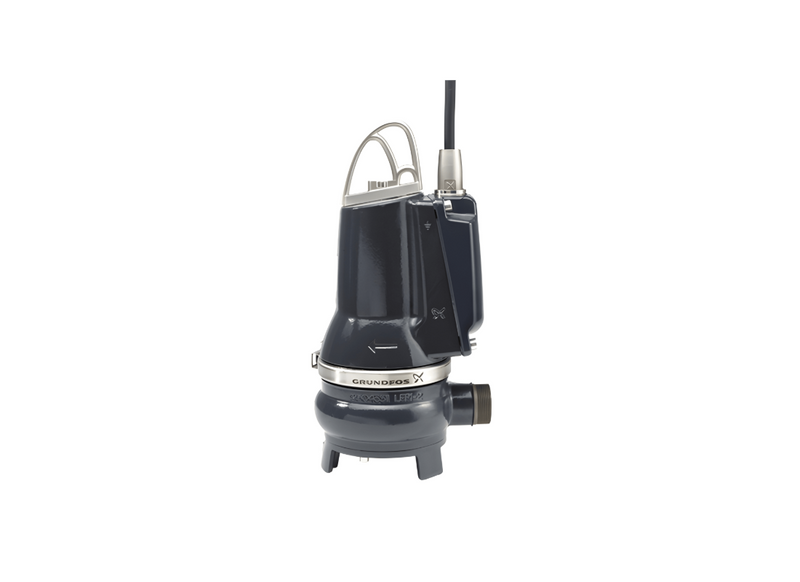

Grundfos EF30.50.06.E.Ex.2.1.502 Cast Iron AUTOADAPT Wastewater Pump for Laundries with Semi Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Built to shield sensitive internal electronics from abrasive sub-surface environments, the EF30.50.06.E.Ex.2.1.502 Grundfos EF AUTOADAPT pump is a portable pump for both domestic and industrial applications. It is configured to assist facilities with heavy-duty autonomous extraction, actively managing fluid levels without traditional external floats.
Flow dynamics are strictly tuned to generate a stable flow rate of approximately 466.8 L/Min alongside an impressive maximum vertical lift of 12.6 meters. Processing commercial fluids effectively, the system utilizes a single-vane semi-open impeller that maintains a 30 mm free passage, helping to mitigate the buildup of thick fibrous materials.
The architectural framework features a resilient EN-JL-1030 cast iron casing intended to protect internal sensors. To preserve the 0.6 kW single-phase 240v motor during cyclic loads, an intermediate oil chamber provides thermal dissipation while simultaneously lubricating the fast-replacement double shaft seal cartridge mechanism.
Weighing 46.5 kg, this explosion-proof certified machine is developed for safe deployment in regulated hazardous industrial facilities. It is suitable for guide rail installations utilizing an automatic coupling arrangement aligned to P/N 97644486 to enable service extraction without wet well entry. High-grade polyurethane potting secures the main cable.
Features
- Safe operational capability in maximum liquid temperatures up to 40 °C
- Engineered for maximum internal operating pressures reaching up to 6 bar
- Standard dynamic current draw formally established at 6.5 Amps
- Internal impeller constructed entirely from durable EN-GJS-500-7 cast iron
- Integrated random start delay logic helps manage general power recovery
- Alarm relay output available for required external acoustic or visual indicators
- Self-calibrating functionality integrated directly into the core sensor controller
SPECIFICATIONS
| Max Flow | 466.8 L/Min |
| Max Head | 12.6 m |
| Power | 0.6 kW / 240v |
| Rated Current | 6.5 Amps |
| Suitable For | Laundries |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across deep collection wet wells, what maximum fluid displacement is achieved under full load?
Under peak inflow conditions, Grundfos EF30.50.06.E.Ex.2.1.502 delivers a maximum volumetric throughput of 466.8 L/Min.
Within municipal drainage stations, what peak hydraulic elevation is reached during active discharge?
Operating in regional wastewater sumps, EF30.50.06.E.Ex.2.1.502 sustains an operational dynamic head of 12.6 m.
What are the motor kilowatt capacity, operating voltage feed, and full-load amperage of this assembly?
The electric drive in EF30-50-06-E-Ex-2-1-502 delivers 0.6 kW across a single-phase 240 V operational feed, drawing 6.5 Amps at full load.
What spherical through-let dimension protects this drainage pump from solids obstruction?
Internal volute geometry in EF30 50 06 E Ex 2 1 502 sustains a 30 mm spherical through-let, preventing particulate accumulation in collection sumps.
What intelligent self-monitoring functions protect this autonomous pump from dry-running?
Self-monitoring routines in EF30/50/06/E/Ex/2/1/502 eliminate separate starter cabinets, while compatibility with the Grundfos auto-coupling system (97644486) facilitates rapid hoist maintenance.
