Roll over image to zoom
SKU: 96877514

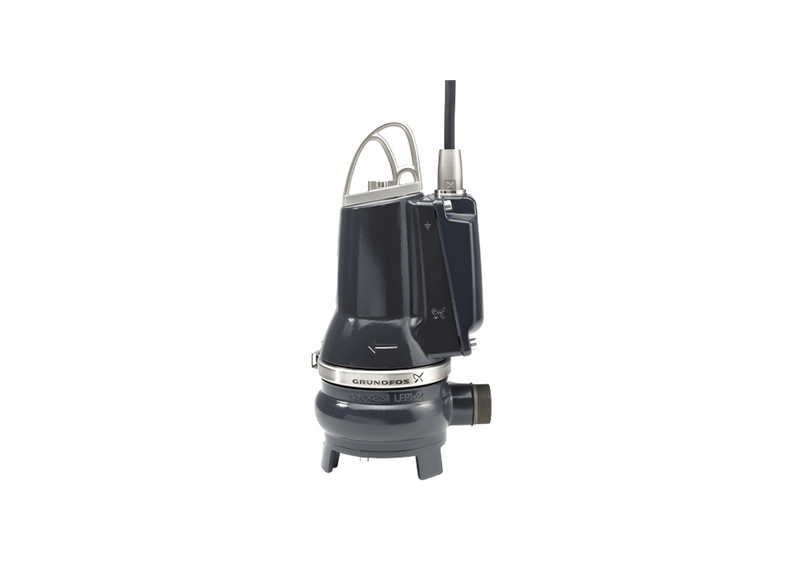

Grundfos EF30.50.06.E.Ex.2.50B Cast Iron AUTOADAPT Wastewater Pump for Surface Water with Semi Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Constructed with a highly resilient primary casing to prevent abrasive degradation, the EF30.50.06.E.Ex.2.50B Grundfos EF AUTOADAPT pump is a portable pump for both domestic and industrial applications. This smart drainage unit utilizes an internal controller to actively help manage multi-unit alternation in complex wastewater networks.
Flow dynamics are explicitly tuned to generate a stable flow rate of approximately 466.8 L/Min alongside an impressive maximum vertical lift of 12.6 meters. Processing commercial fluids effectively, the system utilizes a single-vane semi-open impeller that maintains a 30 mm free passage, helping to mitigate the buildup of thick fibrous materials.
The architectural framework relies on an EN-JL-1030 cast iron structure intended to protect internal electronic sensors from environmental stress. To preserve the 0.6 kW three-phase 415v motor during cyclic loads, an intermediate oil chamber provides thermal dissipation while simultaneously lubricating the fast-replacement double shaft seal cartridge.
Weighing 46.5 kg, this explosion-proof certified machine is developed for safe deployment in regulated hazardous industrial facilities. It is suitable for guide rail installations utilizing an automatic coupling arrangement aligned to P/N 97644486 to enable service extraction without wet well entry. High-grade polyurethane potting secures the main cable.
Features
- Safe operational capability in maximum liquid temperatures up to 40 °C
- Engineered for maximum internal operating pressures reaching up to 6 bar
- Standard dynamic current draw formally established at 2.3 Amps
- Internal impeller constructed entirely from durable EN-GJS-500-7 cast iron
- Integrated random start delay logic helps manage general power recovery
- Alarm relay output available for required external acoustic or visual indicators
- Self-calibrating functionality integrated directly into the core sensor controller
SPECIFICATIONS
| Max Flow | 466.8 L/Min |
| Max Head | 12.6 m |
| Power | 0.6 kW / 415v |
| Rated Current | 2.3 Amps |
| Suitable For | Surface Water |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In municipal sewage lift stations, what peak volumetric displacement is sustained per minute?
Municipal collection wet wells utilize Grundfos EF30.50.06.E.Ex.2.50B to displace wastewater at a peak rate of 466.8 L/Min.
Across regional sewer collection sumps, what maximum discharge elevation does this submersible pump achieve?
Deep collection wet wells operate with EF30.50.06.E.Ex.2.50B attaining a maximum hydraulic lift of 12.6 m.
What are the motor kilowatt rating, line voltage feed, and full-load current for this submerged unit?
Submerged electrical specs for EF30-50-06-E-Ex-2-50B feature a 0.6 kW motor connected to a three-phase 415 V feed drawing 2.3 Amps.
What spherical passage rating allows suspended solids to move through this hydraulic casing?
Large wastewater solids traverse EF30 50 06 E Ex 2 50B freely thanks to an expansive 30 mm spherical through-let designed into the semi-open channel.
How does the autonomous control system prevent impeller seizing during long idle periods?
Intelligent control routines in EF30/50/06/E/Ex/2/50B regulate automated alternation between units, interfacing directly with the Grundfos auto-coupling system (97644486) for rigid wet well mounting.
