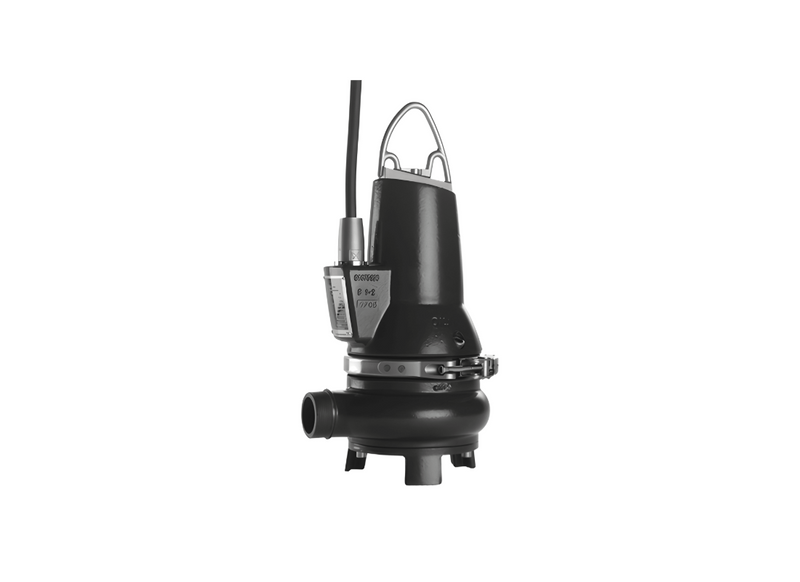

Grundfos EF30.50.11.Ex.2.50B Cast Iron Explosion-Proof Wastewater Pump for Surface Water with Semi Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Engineered to assist with processing heavy fluid volumes in rigorous industrial setups, the EF30.50.11.Ex.2.50B Grundfos EF pump is a portable pump for both domestic and industrial applications. It operates smoothly under intense mechanical stress, helping to manage commercial wastewater safely across complex elevation changes.
Hydraulic mechanics are specifically tuned to deliver a maximum flow output of approximately 738 L/Min combined with a maximum vertical head of 20.9 meters. Processing fluids through a 50 mm port, the system utilizes a single-vane semi-open impeller maintaining a rigid 30 mm free passage, helping to prevent the accumulation of fibrous materials.
Built primarily from heavy-duty EN-GJL-250 cast iron, the external housing is designed to assist in preventing abrasive degradation. An intermediate non-toxic oil chamber serves as a dependable thermal buffer, intended to support the 1.1 kW three-phase 415v motor. This internal reservoir continuously lubricates the double shaft seal cartridge mechanism.
With a verified net weight of 42.0 kg, this explosion-proof certified unit operates securely within hazardous environments. It supports guide rail installations utilizing an automatic coupling base matching P/N 97644486, permitting rapid extraction access without requiring personnel entry. A polyurethane potted cable plug tightly limits moisture intrusion.
Features
- Engineered for a maximum safe hydraulic operating pressure of 6 bar
- Verified operational capability in continuous liquid temperatures up to 40 °C
- Classified strictly with IP68 enclosure protection and Class F insulation
- Standard electrical current consumption accurately rated at 3.1 Amps
- Internal multi-vane impeller structurally cast from EN-GJS-500-7 iron
- Capable of successfully managing up to 30 cyclic motor starts per hour
- Fitted internally with long-life deep-groove greased ball bearings
SPECIFICATIONS
| Max Flow | 738 L/Min |
| Max Head | 20.9 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.1 Amps |
| Suitable For | Surface Water |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Within municipal drainage networks, what maximum fluid displacement volume is delivered per minute?
Operating in collection wet wells, Grundfos EF30.50.11.Ex.2.50B sustains a peak fluid displacement volume of 738 L/Min.
Across subterranean collection vaults, what vertical elevation limit applies to this submersible unit?
Subterranean collection vaults rely on EF30.50.11.Ex.2.50B to attain a maximum vertical elevation of 20.9 m.
Which electrical specifications, line voltage parameters, and running amperage drive this pump?
Driving this pump, EF30-50-11-Ex-2-50B utilizes a 1.1 kW motor operating from a three-phase 415 V electrical feed at 3.1 Amps.
What spherical through-let dimension allows suspended solids to traverse this drainage casing?
Suspended waste containing solids up to 30 mm passes cleanly through EF30 50 11 Ex 2 50B via its precision semi-open impeller.
What installation part number secures this wastewater pump to the guide rail auto-coupling base?
Deep wet well retrieval for EF30/50/11/Ex/2/50B is supported by the dedicated Grundfos auto-coupling component (97644486).
