SKU: 96104197

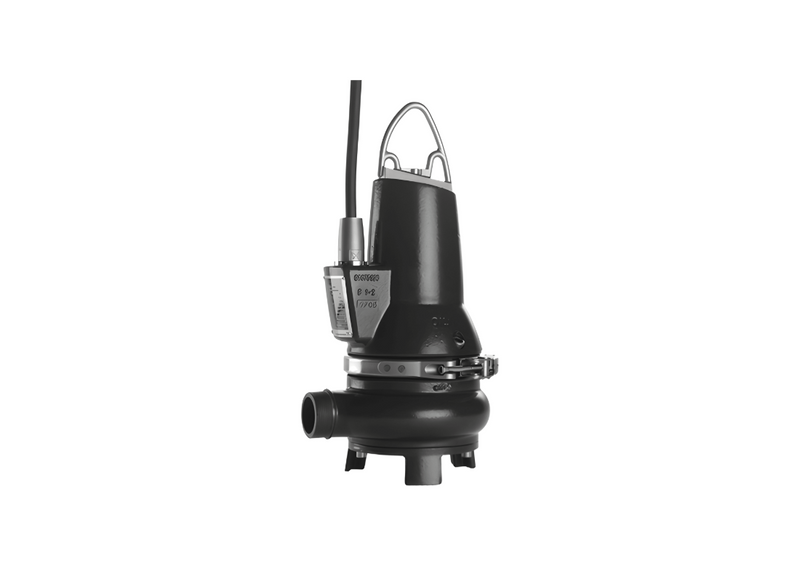

Grundfos EF30.50.15.Ex.2.50B Cast Iron Explosion-Proof Wastewater Pump for Buildings with Semi Open Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Delivering exceptionally stable hydraulic force for deep well networks, the EF30.50.15.Ex.2.50B Grundfos EF pump is a portable pump for both domestic and industrial applications. The system helps manage the continuous transfer of untreated effluents, providing predictable routing for facilities facing volatile sub-surface challenges.
Hydraulic mechanics are specifically tuned to deliver a maximum flow output of approximately 774 L/Min combined with a maximum vertical head of 22.5 meters. Processing fluids through a 50 mm port, the system utilizes a single-vane semi-open impeller maintaining a rigid 30 mm free passage, helping to prevent the accumulation of fibrous materials.
Built primarily from heavy-duty EN-GJL-250 cast iron, the external housing is designed to assist in preventing abrasive degradation. An intermediate non-toxic oil chamber serves as a dependable thermal buffer, intended to support the 1.5 kW three-phase 415v motor. This internal reservoir continuously lubricates the double shaft seal cartridge mechanism.
With a verified net weight of 42.0 kg, this explosion-proof certified unit operates securely within hazardous environments. It supports guide rail installations utilizing an automatic coupling base matching P/N 97644486, permitting rapid extraction access without requiring personnel entry. A polyurethane potted cable plug tightly limits moisture intrusion.
Features
- Engineered for a maximum safe hydraulic operating pressure of 6 bar
- Verified operational capability in continuous liquid temperatures up to 40 °C
- Classified strictly with IP68 enclosure protection and Class F insulation
- Standard electrical current consumption accurately rated at 3.8 Amps
- Internal multi-vane impeller structurally cast from EN-GJS-500-7 iron
- Capable of successfully managing up to 30 cyclic motor starts per hour
- Fitted internally with long-life deep-groove greased ball bearings
SPECIFICATIONS
| Max Flow | 774 L/Min |
| Max Head | 22.5 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.8 Amps |
| Suitable For | Buildings |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across centralized collection wet wells, what peak volumetric flow rate does this submersible unit evacuate?
Across heavy drainage cycles, Grundfos EF30.50.15.Ex.2.50B evacuates wastewater at a maximum rate of 774 L/Min.
In centralized municipal lift vaults, what maximum discharge head does this pump attain?
Centralized lift vaults operate with EF30.50.15.Ex.2.50B maintaining a vertical discharge elevation of 22.5 m.
Which electrical power draw, operational voltage feed, and full-load amperage support this motor?
Electrical parameters for EF30-50-15-Ex-2-50B specify a 1.5 kW motor operating from a three-phase 415 V power line at 3.8 Amps.
How does the semi-open runner geometry facilitate smooth solids transit across drainage sumps?
Hydraulic contours of the semi-open runner in EF30 50 15 Ex 2 50B maintain an unobstructed corridor that accommodates solid waste up to 30 mm.
Which Grundfos auto-coupling part number and guide rail system facilitate wet pit deployment?
Rigid guide rail positioning for EF30/50/15/Ex/2/50B is secured using the Grundfos auto-coupling assembly (97644486) in collection vaults.
