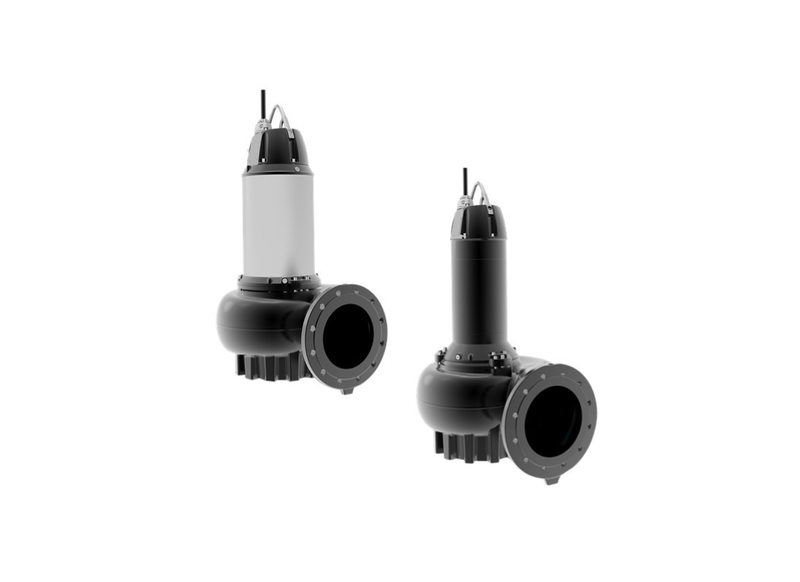

Grundfos SEV.80.80.130.2.52H.N.51D.A.T Cast Iron 2-Pole Sewage Pump for industries with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The rigorous operational load challenges encountered in municipal wastewater treatment plants and heavy-duty industrial effluent processing demand robust fluid management architecture, effectively addressed by the SEV.80.80.130.2.52H.N.51D.A.T 80 mm outlet submersible wastewater pump. Engineered to manage continuous sewage transfer, this unit supports operation in environments subject to unpredictable solid influxes. By accommodating raw wastewater handling, the system helps manage extensive fluid displacement tasks required in underground car parks, dedicated drainage infrastructure, and commercial lift stations.
Operating with a 13 kW / 415v configuration, the three-phase power unit generates a capacity to handle a maximum head of 42 m and a maximum flow reaching approximately 2286 L/Min. The hydraulic configuration features a 100 mm inlet alongside an 80 mm outlet, maintaining fluid velocity pathways that are carefully structured to optimize large-scale water transfer. The integration of continuous duty capabilities ensures steady displacement of high-volume effluent across extended distances.
Constructed with a primary focus on longevity within submerged environments, the pump casing utilizes cast iron EN 1561 EN-GJL-250 for robust environmental protection. The internal assembly operates effectively in liquid temperatures ranging from 0 to 40 degrees Celsius. This unit is suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well, enhancing maintenance procedures in permanent facility setups.
The unit features a substantial net weight of 287 kg, providing foundational stability during active fluid processing. Mechanical integrity is supported by a specialized double shaft seal housed in a unique cartridge design, developed to streamline field replacement. The integration of advanced cable entry connectors facilitates safe electrical decoupling without necessitating the removal of the primary motor top enclosure, optimizing technical interventions.
Features
- Silicon carbide primary and secondary shaft seals for enhanced mechanical durability.
- Built-in thermal protection thermistors for active motor temperature monitoring.
- Class H electrical insulation rating compliant with stringent industry standards.
- IP68 enclosure class rating for continuous submersible operations.
- Integrated moisture sensor components for internal cavity protection.
- Two-pole motor configuration designed for consistent rotational performance.
SPECIFICATIONS
| Max Flow | 2286 L/Min |
| Max Head | 42 m |
| Power | 13 kW / 415v |
| Rated Current | 26 Amps |
| Suitable For | Wastewater Treatment Plants |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across municipal wastewater utility sumps, what maximum fluid displacement rate does this submerged unit sustain?
During peak fluid influx, Grundfos SEV.80.80.130.2.52H.N.51D.A.T maintains an operational volumetric throughput of 2286 L/Min.
Within municipal wastewater utility sumps, what maximum dynamic head does this submerged unit provide?
Municipal collection wet wells deploy SEV.80.80.130.2.52H.N.51D.A.T to achieve a peak dynamic elevation of 42 m.
What power capacity, supply line rating, and full-load current run this heavy submersible motor?
Powering this submerged assembly, SEV-80-80-130-2-52H-N-51D-A-T features a 13 kW motor connected to a three-phase 415 V supply line drawing 26 Amps.
How does the recessed vortex hydraulic profile prevent solids clogging across deep wet wells?
The SuperVortex runner in SEV 80 80 130 2 52H N 51D A T provides a dedicated 80 mm free spherical passage, allowing waste to clear without lodging.
Which mounting system provides automatic sealing against wet well discharge elbows?
For rapid pit positioning, SEV/80/80/130/2/52H/N/51D/A/T connects directly to standard guide rail auto-coupling pedestals for fast hoist extraction.
