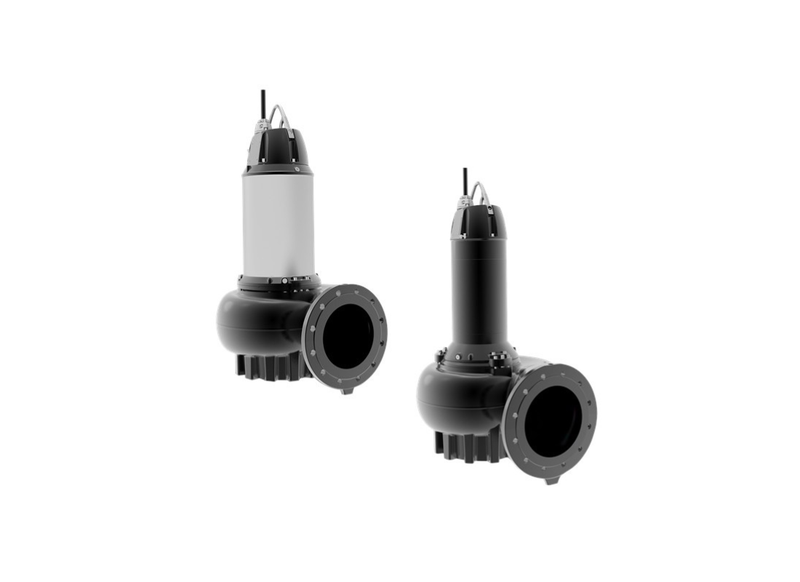

Grundfos SEV.80.80.150.2.52H.N.51D.A.T Cast Iron 2-Pole Sewage Pump for hotels with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Highlighting a primary structural material choice characterized by dense cast iron EN 1561 EN-GJL-250 casting, the SEV.80.80.150.2.52H.N.51D.A.T 80 mm outlet submersible wastewater pump is configured for rigorous public building drainage and municipal pumping stations. The heavy-duty architectural design provides essential containment strength required for continuous sewage treatment protocols. This unit is specifically developed for high-volume fluid processing in industrial garages and commercial basements.
The internal hydraulic loop is powered by a robust 15 kW / 415v electrical assembly, enabling the pump to achieve a maximum head of 45 m alongside a maximum fluid displacement of approximately 2400 L/Min. Liquid velocity is managed through a 100 mm inlet and an 80 mm outlet port configuration, supporting steady pressure maintenance within dedicated hydrotherapy distribution or standard wastewater transfer lines. The active current draw is rated at 29 Amps during peak operational thresholds.
To assist with complex facility layouts, the pump is suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well. The system is designed to support fluid handling with liquid temperatures up to 40 degrees Celsius, maintaining structural tolerances under sustained thermal exposure. The solid cast iron construction offers the necessary mass to suppress operational vibrations across permanent municipal setups.
Integrating a net weight of 288 kg, the physical footprint of the pump is anchored securely within the wet well environment. The mechanical infrastructure incorporates a specialized double shaft seal within a quick-change cartridge layout, intended to support rapid field maintenance. Additionally, the top-mounted cable entry connector is engineered to permit straightforward dismantling of electrical lines without requiring the extraction of the motor head.
Features
- Cast iron SuperVortex impeller component featuring an 80 mm free passage tolerance.
- Integrated moisture sensors for internal fluid ingress detection.
- IP68 continuous submersion rating for deep environmental deployment.
- Standardized Class H insulation supporting internal electrical integrity.
- Dual silicon carbide shaft sealing mechanisms for primary and secondary containment.
- Thermistor-based built-in motor protection circuitry.
SPECIFICATIONS
| Max Flow | 2400 L/Min |
| Max Head | 45 m |
| Power | 15 kW / 415v |
| Rated Current | 29 Amps |
| Suitable For | Municipal Pumping Stations |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What is the maximum water volume this pump can discharge?
Fluid evacuation capacity for the Grundfos SEV.80.80.150.2.52H.N.51D.A.T peaks at approximately 2400 L/Min, providing dependable high-volume drainage.
How high can this pump push fluid through discharge risers?
Pumping performance for the SEV.80.80.150.2.52H.N.51D.A.T provides up to 45 m of vertical dynamic lift, depending on system friction and line sizing.
What are the power requirements and running amperage for this pump?
Under full load conditions, the motor in the SEV-80-80-150-2-52H-N-51D-A-T delivers 15 kW on a 415 V three-phase line drawing 29 Amps.
What metallurgy is selected for the pump body to resist abrasive wear?
Built with a resilient high-grade alloy body, the SEV 80 80 150 2 52H N 51D A T maintains material durability against fluid abrasion and wear.
What connection layout and port dimensions are featured on this unit?
Plumbing integration on the SEV/80/80/150/2/52H/N/51D/A/T utilizes a dedicated guide rail auto-coupling layout for reliable pipeline connection.
