SKU: 99774773

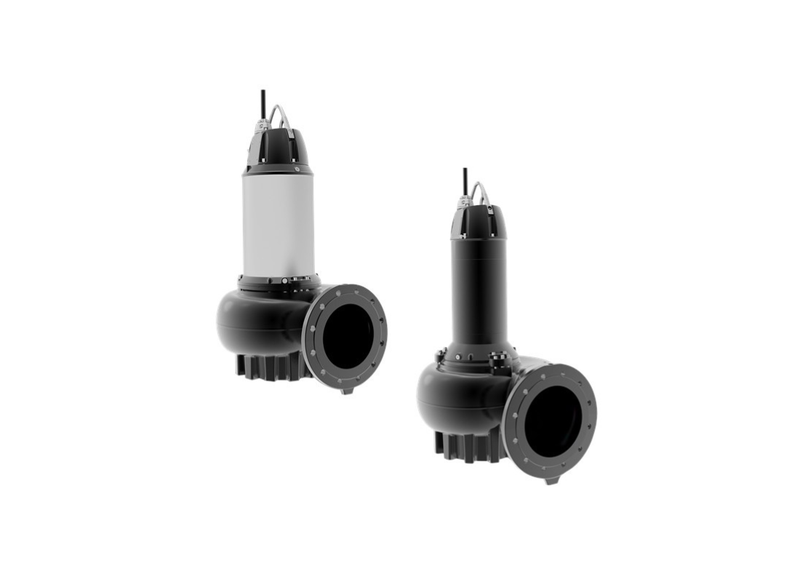

Grundfos SEV.80.80.220.2.52H.N.51D.A.T Cast Iron 2-Pole Sewage Pump for car parks with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Highlighting a primary structural material choice defined by heavy-duty cast iron EN 1561 EN-GJL-250, the SEV.80.80.220.2.52H.N.51D.A.T 80 mm outlet submersible wastewater pump is developed for demanding industrial effluent sectors. This robust casing is engineered for continuous deployment in municipal sewage treatment facilities and underground commercial spaces. The dense metal housing helps manage the physical stress of continuous, large-scale wastewater transfer.
With a powerful 22 kW / 415v three-phase power unit, the system produces sufficient torque to generate a maximum head of 59 m and an extensive maximum flow reaching approximately 2934 L/Min. The hydraulic interface features a 100 mm inlet and an 80 mm outlet to direct raw sewage securely. Electrical draw is rigorously maintained at a rated current of 41 Amps.
The pump exhibits a net weight of 314 kg, establishing absolute stability during peak fluid surges. Thermal handling capabilities allow it to process liquids up to 40 degrees Celsius without structural degradation. In terms of permanent setups, the unit is suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well, optimizing public utility workflows.
Servicing procedures are highly supported by a unique cartridge-based double shaft seal, which is designed to assist rapid field replacement protocols. Additionally, a specialized cable entry connector provides a secure method to detach the main power array without requiring the removal of the critical motor top assembly, keeping internal electronics isolated from environmental exposure during maintenance.
Features
- SuperVortex style impeller cast from resilient EN 1563 EN-GJS-500-7 iron.
- Moisture sensing components built directly into the stator housing.
- IP68 continuous immersion rating for total wet well protection.
- High-temperature Class H insulation for internal electrical integrity.
- Silicon carbide sealing interfaces for supreme mechanical wear resistance.
- Built-in motor protection utilizing thermistor safety arrays.
SPECIFICATIONS
| Max Flow | 2934 L/Min |
| Max Head | 59 m |
| Power | 22 kW / 415v |
| Rated Current | 41 Amps |
| Suitable For | Restaurants And Hotels |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In municipal trunk sewer wet wells, what maximum volumetric displacement is maintained during peak periods?
Operating in collection wet wells, Grundfos SEV.80.80.220.2.52H.N.51D.A.T sustains a peak fluid displacement volume of 2934 L/Min.
In municipal sewer lift vaults, what maximum dynamic head is maintained during high inflow cycles?
Subterranean collection vaults rely on SEV.80.80.220.2.52H.N.51D.A.T to attain a maximum vertical elevation of 59 m.
Which motor kilowatt capacity, line voltage rating, and full-load current drive this assembly?
Driving this pump, SEV-80-80-220-2-52H-N-51D-A-T utilizes a 22 kW motor operating from a three-phase 415 V electrical feed at 41 Amps.
What spherical through-let passage does the SuperVortex runner maintain for large wastewater solids?
Suspended waste containing solids up to 80 mm passes cleanly through SEV 80 80 220 2 52H N 51D A T via its precision SuperVortex impeller.
What guide rail auto-coupling arrangement simplifies hoist servicing in municipal wet wells?
Rapid hoist retrieval in wet wells is supported by SEV/80/80/220/2/52H/N/51D/A/T mounting directly onto standard auto-coupling base pedestals.
