SKU: 99774844

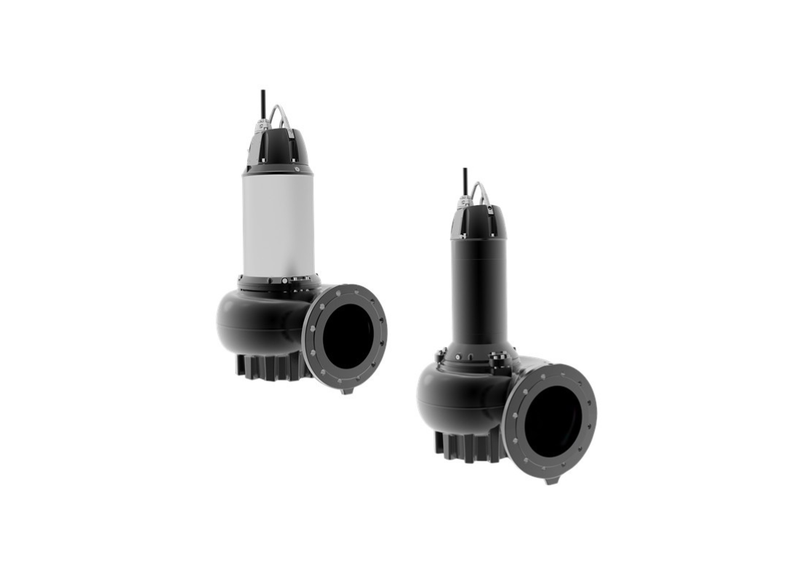

Grundfos SEV.80.80.240.2.52H.N.51D.A.T Cast Iron 2-Pole Wastewater Pump for sewage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Detailing stable internal fluid velocity paths and robust hydraulic configurations, the SEV.80.80.240.2.52H.N.51D.A.T 80 mm outlet submersible wastewater pump is configured for extreme fluid dynamics within municipal pumping stations. This system is developed for continuous industrial effluent routing, securely managing raw sewage displacement. The unit helps manage demanding hydraulic loads found in commercial blocks of flats and complex underground processing zones.
The internal motor delivers an intensive 24 kW / 415v output, providing the necessary mechanical force to achieve a maximum head of 63 m. Liquid displacement reaches an approximate maximum flow of 3000 L/Min, channeled securely via a 100 mm inlet and an 80 mm outlet port system. The electrical array draws a sustained rated current of 49 Amps under heavy-duty performance curves.
Securing the installation is a net weight of 304 kg, grounding the cast iron EN 1561 EN-GJL-250 chassis against heavy vibration. The system is certified to handle fluid temperatures up to 40 degrees Celsius. For established municipal networks, the system is suitable for guide rail installations using an automatic coupling arrangement that allows service access without entering the wet well, streamlining service operations.
The mechanical design includes a precision double shaft seal secured within an interchangeable cartridge to support immediate field servicing. Additionally, the external cable entry connector is engineered for safe power disconnection, completely bypassing the need to unbolt the main motor top casing. These features are intended to support critical infrastructure uptime and safety.
Features
- Cast iron SuperVortex impeller boasting an 80 mm free-passage gap.
- Internal moisture sensor technology for continuous operational feedback.
- IP68 ingress protection classification for deep wet well applications.
- Electrical Class H insulation protecting internal wiring arrays.
- Premium silicon carbide shaft seals for advanced wear prevention.
- Thermal protection protocols managed by integrated motor thermistors.
SPECIFICATIONS
| Max Flow | 3000 L/Min |
| Max Head | 63 m |
| Power | 24 kW / 415v |
| Rated Current | 49 Amps |
| Suitable For | Car Wash Areas |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across centralized wastewater lift stations, what peak fluid throughput is delivered per minute?
Under peak inflow conditions, Grundfos SEV.80.80.240.2.52H.N.51D.A.T delivers a maximum volumetric throughput of 3000 L/Min.
Across municipal sewage retention basins, what peak delivery elevation does this submerged unit achieve?
Operating in regional wastewater sumps, SEV.80.80.240.2.52H.N.51D.A.T sustains an operational dynamic head of 63 m.
What are the electrical specifications, operating voltage feed, and running current draw of this motor?
The electric drive in SEV-80-80-240-2-52H-N-51D-A-T delivers 24 kW across a three-phase 415 V operational feed, drawing 49 Amps at full load.
How does the recessed SuperVortex runner profile enable large spherical waste to clear without contact?
Internal volute geometry in SEV 80 80 240 2 52H N 51D A T sustains a 80 mm spherical through-let, preventing particulate accumulation in collection sumps.
Which guide rail auto-coupling pedestal connects this heavy pump to wet well risers?
Guide rail mounting in collection wells is supported by SEV/80/80/240/2/52H/N/51D/A/T through direct compatibility with standard auto-coupling bases.
