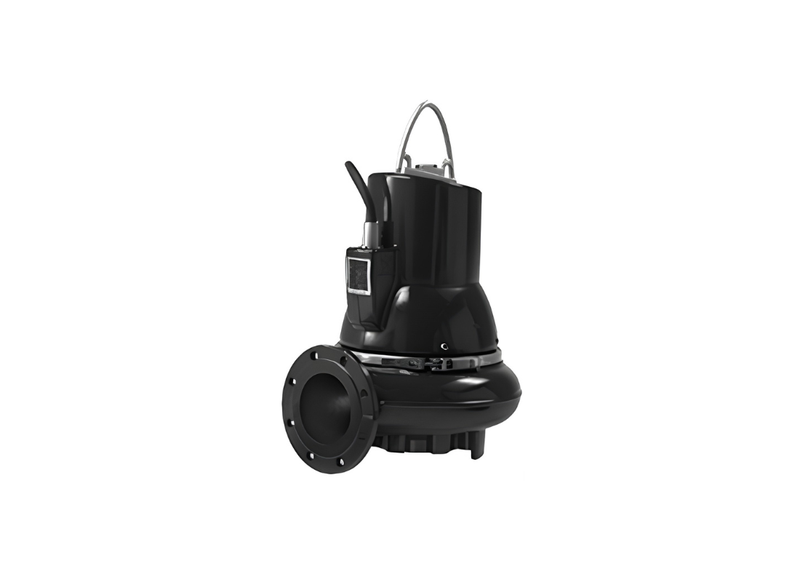

Grundfos SL1.100.100.40.4.50B.C Cast Iron 4-Pole Wastewater Pump for Municipal Networks with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High-volume transfer in municipal networks is the domain of the Grundfos SL1.100.100.40.4.50B.C, suitable for large-scale drainage and handling untreated wastewater. Certified under CE EN12050-1, this cast iron model is intended for permanent installation in high-demand infrastructure. It is designed for untreated wastewater containing large solids in civil collection environments.
A 4 kW 4-pole motor operating on a 3 x 415V supply with a rated current of 9.6 Amps powers the unit at 1464 rpm. It achieves a maximum flow up to 3816 L/min and maximum head up to 11.7 m. The motor is calibrated for continuous S1 duty in untreated wastewater at temperatures between 0°C and 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller is designed for untreated wastewater containing solids up to 100 mm while helping reduce the risk of clogging. The hydraulic design features a DN 150 inlet and a 4" (100 mm) outlet with DIN flange standards. This configuration supports consistent fluid handling in municipal wastewater networks.
Construction consists of an EN-GJL-250 cast iron pump housing and motor casing. Shaft protection is provided by a double SIC/SIC mechanical seal system and integrated PTC sensors for motor protection. Integrated moisture sensors are used for seal and motor monitoring, along with 10 metres of LYNIFLEX power cable and an IP68 enclosure. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 100 mm free passage for reliable transit of wastewater containing large solids.
- 4 kW 4-pole motor operating at 1464 rpm on a 3 x 415V three-phase supply with 9.6 Amps rated current.
- DN 150 inlet and 4" (100 mm) discharge connection for massive fluid trajectories in municipal networks.
- Double mechanical SIC/SIC shaft seals with an oil chamber for redundant moisture defence for the motor.
- Integrated PTC sensors and moisture detection for advanced motor health and thermal monitoring.
- Winding-integrated thermal switches for automatic motor safety and overheating protection.
- 10-metre rugged LYNIFLEX power cable and IP68 moisture protection for deep submerged service.
- CE EN12050-1 certified for use in high-volume municipal wastewater transfer and collection systems.
SPECIFICATIONS
| Max Flow | 3816 L/Min |
| Max Head | 11.7 m |
| Power | 4 kW / 415v |
| Rated Current | 9.6 Amps |
| Suitable For | High-Volume Transfer |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 150 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What spherical through-let passage does the heavy S-tube impeller maintain for massive wastewater solids?
Massive wastewater solids up to 100 mm move freely through Grundfos SL1.100.100.40.4.50B.C via its heavy single-channel S-tube through-let.
Which large-bore auto-coupling system connects this pump to wet well discharge risers?
Wet well discharge risers interface directly with SL1.100.100.40.4.50B.C through a heavy-duty auto-coupling pedestal designed for large-bore pumps.
In civil effluent management schemes, what maximum fluid displacement volume does this pump provide?
Civil effluent schemes incorporate SL1-100-100-40-4-50B-C to supply a maximum fluid displacement volume of 3816 L/Min.
In civil wastewater schemes, what peak dynamic elevation does this submersible unit reach?
Civil wastewater schemes utilize SL1 100 100 40 4 50B C to reach a peak dynamic elevation of 11.7 m.
What are the motor power output, supply voltage, and running current specifications for this pump?
Specifications for SL1/100/100/40/4/50B/C include a 4 kW motor operating on a three-phase 415 V connection drawing an amperage of 9.6 Amps.
