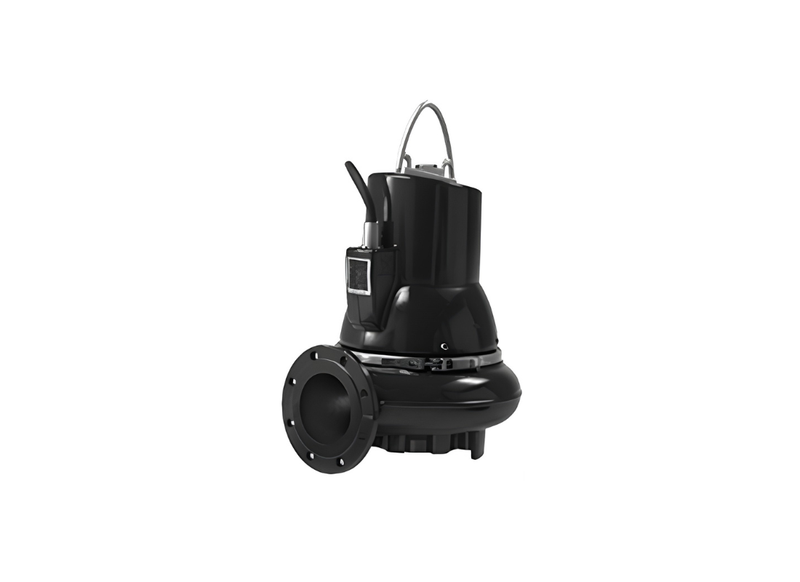

Grundfos SL1.100.100.55.4.50B.C Cast Iron 4-Pole Wastewater Pump for Industrial Facilities with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Industrial wastewater transfer facilities utilise the Grundfos SL1.100.100.55.4.50B.C for processing sumps and civil wet wells. Holding CE EN12050-1 approval, this model is built for permanent submerged installation and is intended for handling untreated wastewater containing large solids in centralized collection systems.
Operating on a 3 x 415V supply with a rated current of 10.9 Amps, the 5.5 kW 4-pole motor runs at 1463 rpm. It reaches a maximum head up to 16.6 m and maximum flow up to 4284 L/min. This model is rated for continuous S1 submerged service in liquids between 0°C and 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
Solids handling is facilitated by an S-tube impeller providing a 100 mm free passage for untreated wastewater while helping reduce the risk of clogging. The hydraulic design features a DN 150 inlet and a 4" (100 mm) outlet with DIN flange connections. This supports the discharge of contaminated media in industrial processing sumps.
Construction features an EN-GJL-250 cast iron pump housing and motor casing. Protection includes a double SIC/SIC mechanical seal and integrated PTC thermal sensors for motor protection. Integrated moisture sensors are included for seal and motor monitoring, along with 10 metres of LYNIFLEX power cable and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 100 mm free passage for processing wastewater containing large solids.
- 5.5 kW 4-pole motor operating at 1463 rpm on a 3 x 415V three-phase supply with 10.9 Amps rated current.
- DN 150 inlet and 4" (100 mm) discharge connection for high-volume wastewater transfer in industrial sumps.
- Double SIC/SIC mechanical seals in an oil chamber providing a watertight boundary for the shaft.
- Integrated PTC sensors and moisture detection for promonitoring of seal and motor integrity.
- Built-in thermal switches within the stator windings for active protection against electrical overheating.
- 10-metre heavy-duty LYNIFLEX power cable and IP68 rated enclosure for deep submerged service.
- CE EN12050-1 certified for use in industrial wastewater transfer and processing facilities.
SPECIFICATIONS
| Max Flow | 4284 L/Min |
| Max Head | 16.6 m |
| Power | 5.5 kW / 415v |
| Rated Current | 10.9 Amps |
| Suitable For | Industrial Facilities |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 150 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What guide rail mounting arrangement supports rapid hoist extraction for this heavy pump?
Rapid hoist extraction for this heavy pump is enabled by Grundfos SL1.100.100.55.4.50B.C docking onto dual guide rail auto-coupling brackets.
Within metropolitan drainage reservoirs, what peak volumetric throughput is displaced during peak influx periods?
Peak influx periods in drainage reservoirs are managed by SL1.100.100.55.4.50B.C discharging up to 4284 L/Min.
Within metropolitan drainage reservoirs, what maximum discharge head does this heavy pump provide?
Metropolitan drainage reservoirs receive a maximum discharge head of 16.6 m from SL1-100-100-55-4-50B-C.
Which motor kilowatt rating, line voltage feed, and running current draw support this assembly?
Supporting this assembly, SL1 100 100 55 4 50B C incorporates a 5.5 kW motor powered by a three-phase 415 V feed drawing 10.9 Amps.
How does the large-bore S-tube runner prevent clogging during high-volume municipal pumping?
High-volume municipal pumping is shielded from blockages by SL1/100/100/55/4/50B/C, which provides a wide 100 mm spherical clearance.
