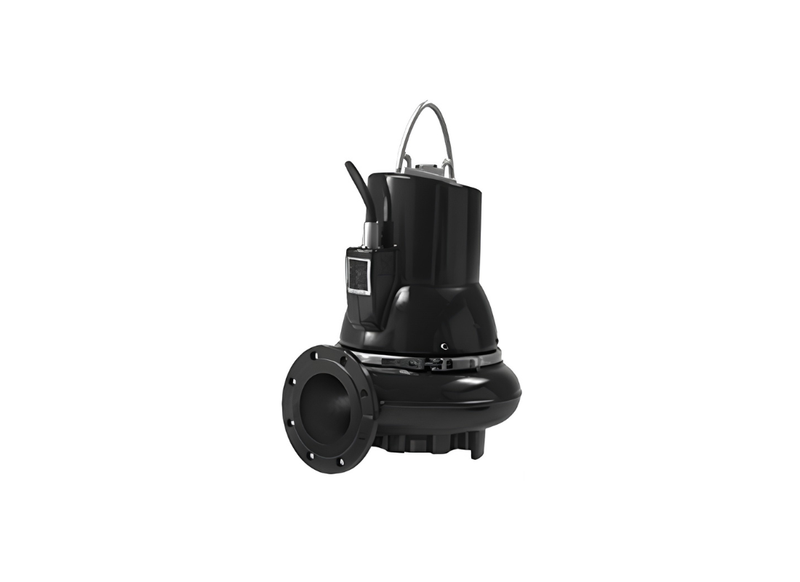

Grundfos SL1.100.100.75.4.50B.C Cast Iron 4-Pole Wastewater Pump for Municipal Systems with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Municipal wastewater systems and centralized lift stations are the primary applications for the Grundfos SL1.100.100.75.4.50B.C, a high-capacity submersible pump certified under CE EN12050-1. This cast iron unit is intended for permanent installation in civil wet wells and is developed for handling raw effluents containing large solids in high-demand municipal networks.
The unit features a 7.5 kW 4-pole motor operating at 1462 rpm on a 3 x 415V supply with a rated current of 14.4 Amps. It achieves a maximum head up to 19.5 m and maximum flow up to 4866 L/min. The motor is designed for continuous S1 duty in untreated wastewater with temperatures between 0°C and 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
An S-tube impeller provides a 100 mm free passage for untreated wastewater containing solids while helping reduce the risk of clogging. Hydraulic connections include a DN 150 inlet and a 4" (100 mm) outlet with DIN flanges. This single-vane hydraulic path facilitates the conveying of raw effluents through municipal discharge piping.
Built with an EN-GJL-250 cast iron pump housing and motor casing, the unit includes a double mechanical SIC/SIC seal system. Integrated PTC sensors and moisture sensors are used for seal and motor monitoring. Motor safety is provided by winding-embedded thermal switches, 10 metres of LYNIFLEX power cable, and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 100 mm free passage for processing wastewater with high solids content.
- 7.5 kW 4-pole motor operating at 1462 rpm on a 3 x 415V three-phase supply with 14.4 Amps rated current.
- DN 150 inlet and 4" (100 mm) discharge connection for high-volume fluid trajectories in municipal networks.
- Double SIC/SIC mechanical shaft seals with an oil chamber for redundant moisture defence for the stator.
- Integrated PTC sensors and moisture detection for advanced motor health and thermal monitoring.
- Built-in thermal switches within the stator windings for automatic protection against electrical damage.
- 10-metre rugged LYNIFLEX power cable and IP68 enclosure for continuous operation in deep wet wells.
- CE EN12050-1 certified for use in municipal wastewater systems and centralized lift stations.
SPECIFICATIONS
| Max Flow | 4866 L/Min |
| Max Head | 19.5 m |
| Power | 7.5 kW / 415v |
| Rated Current | 14.4 Amps |
| Suitable For | Municipal Wastewater |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 150 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
For regional wastewater drainage vaults, what maximum fluid displacement volume does this submerged unit achieve?
Regional drainage vaults deploy Grundfos SL1.100.100.75.4.50B.C to achieve an operational displacement volume of 4866 L/Min.
For regional wastewater pumping sumps, what peak vertical lift is maintained during intensive runoff evacuation?
Intensive runoff evacuation in pumping sumps is maintained by SL1.100.100.75.4.50B.C with a vertical lift of 19.5 m.
What electrical power capacity, operational voltage, and full-load amperage drive this submerged pump?
Driving this pump, SL1-100-100-75-4-50B-C features a 7.5 kW submerged motor operating from a three-phase 415 V line drawing 14.4 Amps.
What internal clearance dimension prevents solids obstruction in this primary collection volute?
Primary collection wet wells benefit from SL1 100 100 75 4 50B C, which maintains a generous 100 mm internal clearance through the casing.
Which physical installation base facilitates submerged connection in municipal sumps?
Submerged connection in municipal sumps is facilitated by SL1/100/100/75/4/50B/C through direct compatibility with auto-coupling bases.
