SKU: 98625971

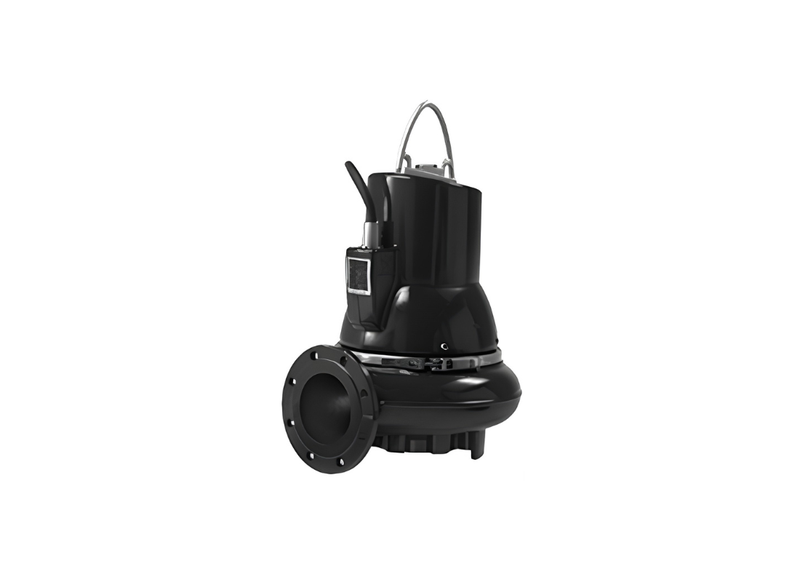

Grundfos SL1.100.150.40.4.50B.C Cast Iron 4-Pole Wastewater Pump for Pumping Stations with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Large-scale pumping stations and civil infrastructure utilise the Grundfos SL1.100.150.40.4.50B.C for handling untreated wastewater containing large solids. Holding CE EN12050-1 approval, this cast iron unit is built for submerged installation in storm basins and wet wells. It is designed for high-volume environments requiring reliable wastewater transfer.
Performance is driven by a 4 kW 4-pole motor operating at 1464 rpm on a 3 x 415V supply with a rated current of 9.6 Amps. It achieves a maximum head up to 11.2 m and flow up to 3864 L/min. The unit is rated for continuous S1 submerged service in untreated wastewater at temperatures up to 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The hydraulic design incorporates an S-tube impeller providing a 100 mm free passage for untreated wastewater while helping reduce the risk of clogging. The pump utilises a DN 150 inlet and a 6" (150 mm) outlet with DIN flange standards. This configuration supports the transfer of raw effluents in municipal collection networks.
Construction consists of an EN-GJL-250 cast iron pump housing and motor casing. Shaft protection is provided by a double mechanical SIC/SIC arrangement and integrated PTC thermal sensors for motor monitoring. Integrated moisture sensors are used for seal and motor monitoring, along with 10 metres of LYNIFLEX power cable and an IP68 rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 100 mm free passage for handling large solids-laden wastewater without clogging.
- 4 kW 4-pole motor operating at 1464 rpm on a 3 x 415V three-phase supply with 9.6 Amps rated current.
- DN 150 inlet and 6" (150 mm) discharge connection for rapid high-volume fluid relocation.
- Double SIC/SIC mechanical shaft seals in an oil chamber for redundant moisture defence for the motor.
- Integrated PTC sensors and moisture detection for advanced motor health and active thermal monitoring.
- Winding-integrated thermal switches for automatic motor safety and overheating protection in wet wells.
- 10-metre heavy-duty LYNIFLEX power cable and IP68 protection classification for deep-well operation.
- CE EN12050-1 certified for use in large-scale pumping stations and volume-intensive wastewater networks.
SPECIFICATIONS
| Max Flow | 3864 L/Min |
| Max Head | 11.2 m |
| Power | 4 kW / 415v |
| Rated Current | 9.6 Amps |
| Suitable For | Pumping Stations |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In low-lying municipal drainage works, what maximum hydraulic elevation does this pump attain?
Low-lying drainage works deploy Grundfos SL1.100.150.40.4.50B.C to attain an operational hydraulic elevation of 11.2 m.
Which motor output rating, grid voltage connection, and running amperage run this unit?
Running this unit, SL1.100.150.40.4.50B.C utilizes a 4 kW motor designed for a three-phase 415 V grid line drawing 9.6 Amps.
What spherical passage rating allows unscreened sewage solids to move through this wide discharge casing?
Unscreened sewage solids up to 100 mm pass smoothly through the wide discharge casing of SL1-100-150-40-4-50B-C.
What auto-coupling pedestal supports this wide discharge connection in wet wells?
Wide discharge connections in wet wells are supported by SL1 100 150 40 4 50B C docking onto dedicated auto-coupling base pedestals.
In low-lying civil collection pits, what peak volumetric flow rate does this pump evacuate?
Low-lying civil collection pits utilize SL1/100/150/40/4/50B/C for an evacuation rate reaching 3864 L/Min.
