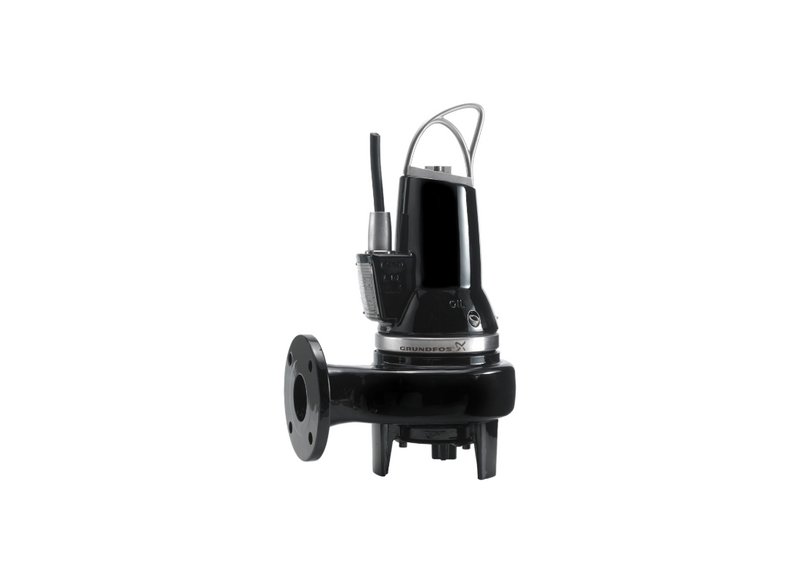

Grundfos SL1.50.65.30.A.EX.2.50B.C Cast Iron 2-Pole Wastewater Pump for High-Head Transfer with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Designed for high-head wastewater transfer in municipal infrastructure, the Grundfos SL1.50.65.30.A.EX.2.50B.C holds CE EN12050-2 and IECEX certifications for explosive environments. The pump is suitable for permanent submerged installation in wet wells and basins where untreated wastewater containing solids must be handled.
The pump is powered by a 3 kW 2-pole motor with a rated speed of 2909 rpm. Operating on a 3 x 415V supply with a rated current of 6.4 Amps, it achieves a maximum head up to 22 m and a maximum flow up to 1164 L/min. It is rated for continuous S1 submerged duty in wastewater with a temperature range of 0°C to 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller provides a 50 mm free passage for untreated wastewater containing solids while helping reduce the risk of clogging. Connection sizes include a DN 65 inlet and a DN 65 (2.5") outlet with DIN flanges. The single-vane hydraulic design facilitates the conveying of raw effluents through discharge piping.
Construction includes an EN-GJL-250 cast iron pump housing and motor casing with double SIC/SIC mechanical shaft seals. Integrated moisture and water-in-oil sensors are used for seal and motor monitoring. Winding-embedded thermal switches protect the stator, and the unit includes 10 metres of LYNIFLEX power cable and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- Explosion-proof EX certified motor housing for safe operation in hazardous environments and explosive atmospheres.
- S-tube impeller with 50 mm free passage for pumping untreated wastewater containing solids without clogging.
- 3 kW 2-pole motor operating at 2909 rpm on a 3 x 415V three-phase supply with 6.4 Amps rated current.
- High-head performance up to 22 m for demanding wastewater transfer applications in municipal infrastructure.
- DN 65 inlet and DN 65 (2.5") discharge connection with DIN flanges for standard municipal piping systems.
- Double mechanical SIC/SIC seals in an oil chamber providing redundant shaft protection against moisture ingress.
- Integrated water-in-oil and moisture sensors for promonitoring of seal and motor integrity.
- 10-metre heavy-duty LYNIFLEX power cable and IP68 enclosure for reliable submerged service in deep sumps.
SPECIFICATIONS
| Max Flow | 1164 L/Min |
| Max Head | 22 m |
| Power | 3 kW / 415v |
| Rated Current | 6.4 Amps |
| Suitable For | High-Head Wastewater |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum vertical water column can this pump maintain?
Pumping performance for the Grundfos SL1.50.65.30.A.EX.2.50B.C provides up to 22 m of vertical dynamic lift, depending on system friction and line sizing.
How much power does the motor consume during standard operation?
Under full load conditions, the motor in the SL1.50.65.30.A.EX.2.50B.C delivers 3 kW on a 415 V three-phase line drawing 6.4 Amps.
What size solids can pass through this pump without clogging?
Equipped with a non-clogging S-tube runner, the SL1-50-65-30-A-EX-2-50B-C facilitates free spherical passage for solid waste up to 50 mm.
What size discharge flange or connection is fitted to this pump?
Plumbing integration on the SL1 50 65 30 A EX 2 50B C utilizes a dedicated guide rail auto-coupling layout for reliable pipeline connection.
How much water volume can this unit move through the pipework?
Discharge throughput on the SL1/50/65/30/A/EX/2/50B/C reaches a maximum flow rate of approximately 1164 L/Min under standard operating conditions.
