SKU: 98626082

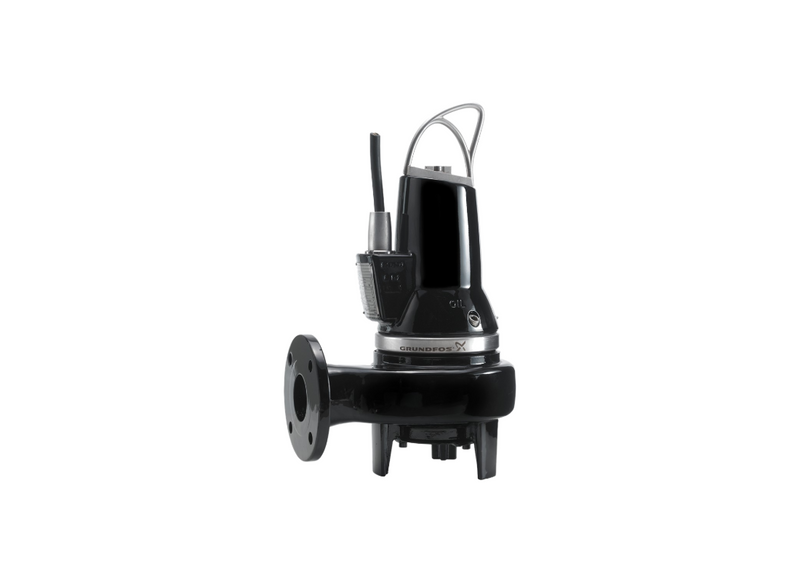

Grundfos SL1.50.80.22.2.50B.C Cast Iron 2-Pole Wastewater Pump for Transfer Stations with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Built for municipal wastewater pumping, the Grundfos SL1.50.80.22.2.50B.C is a submersible pump certified under CE EN12050-2 for permanent installation in wet wells and basins. This model is intended for the drainage and transfer of untreated wastewater in civil and industrial networks.
A 2.2 kW 2-pole motor powers the unit at 2900 rpm on a 3 x 415V supply with a rated current of 4.7 Amps. It achieves a maximum flow up to 1248 L/min and a maximum head up to 17.5 m. The motor is designed for continuous S1 duty in untreated wastewater at temperatures between 0°C and 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller provides a 50 mm free passage for untreated wastewater containing solids while helping reduce the risk of clogging. Connection sizes include a DN 65 inlet and a DN 80 (3") outlet with DIN flange standards. This configuration supports consistent fluid discharge in municipal wastewater piping systems.
Construction features an EN-GJL-250 cast iron pump housing and motor casing. The shaft is protected by a double mechanical SIC/SIC seal arrangement in an oil chamber. Protection includes moisture sensors and winding-embedded thermal switches for motor monitoring, along with a 10-metre 07RN8-F power cable and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 50 mm free passage for reliable handling of solids-laden wastewater without clogging.
- 2.2 kW 2-pole motor operating at 2900 rpm on a 3 x 415V three-phase supply with 4.7 Amps rated current.
- DN 65 inlet and DN 80 (3") discharge connection with DIN flange standards for municipal infrastructure.
- Double mechanical SIC/SIC shaft seals in an oil chamber providing a redundant moisture barrier for the motor.
- Integrated moisture sensors for monitoring of seal integrity during submerged service in wet wells.
- Winding-integrated thermal switches for automatic motor safety and protection against overheating.
- 10-metre 07RN8-F power cable and IP68 enclosure for reliable continuous submerged operation in deep sumps.
- CE EN12050-2 certified for use in municipal wastewater collection systems and pumping stations.
SPECIFICATIONS
| Max Flow | 1248 L/Min |
| Max Head | 17.5 m |
| Power | 2.2 kW / 415v |
| Rated Current | 4.7 Amps |
| Suitable For | Transfer Stations |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What spherical passage dimension accommodates unscreened sewage across this S-tube assembly?
Unscreened sewage containing solids up to 50 mm passes cleanly through Grundfos SL1.50.80.22.2.50B.C via its precision-machined S-tube impeller.
Which guide rail auto-coupling base supports secure wet well positioning and rapid hoist retrieval?
Rapid hoist retrieval in wet wells is supported by SL1.50.80.22.2.50B.C mounting directly onto standard auto-coupling base pedestals.
During demanding wastewater transfer cycles, what maximum fluid volume passes through this submersible assembly?
Under demanding wastewater transfer cycles, SL1-50-80-22-2-50B-C conveys a maximum fluid volume of 1248 L/Min.
During heavy municipal transfer cycles, what peak delivery head can this submersible sewage assembly attain?
Heavy transfer cycles see SL1 50 80 22 2 50B C attain a peak delivery head of 17.5 m across discharge lines.
Which electrical specifications, line voltage parameters, and running amperage drive this pump?
Driving this pump, SL1/50/80/22/2/50B/C utilizes a 2.2 kW motor operating from a three-phase 415 V electrical feed at 4.7 Amps.
