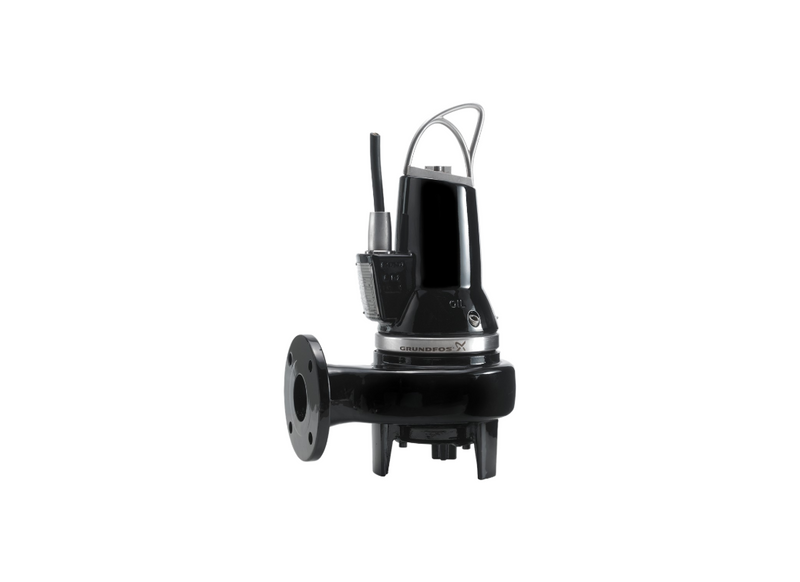

Grundfos SL1.50.80.30.2.50B.C Cast Iron 2-Pole Wastewater Pump for Collection Networks with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Intended for permanent submerged installation, the Grundfos SL1.50.80.30.2.50B.C is designed to maintain wastewater levels and prevent overflows in civil basins. It holds CE EN12050-2 approval and is suitable for collection stations and municipal utility sites. The pump is engineered for handling untreated wastewater in submerged applications.
The pump is powered by a 3 kW 2-pole motor operating at 2909 rpm on a 3 x 415V supply with a rated current of 6.4 Amps. It achieves a maximum head up to 21.6 m and a maximum flow up to 1164 L/min. This model is rated for continuous S1 duty in untreated wastewater containing solids at temperatures up to 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller is designed for untreated wastewater containing solids up to 50 mm while helping reduce the risk of clogging. The unit is equipped with a DN 65 inlet and a DN 80 (3") outlet connection. This single-vane hydraulic design supports the discharge of raw effluents in municipal collection networks.
Construction features an EN-GJL-250 cast iron pump housing and motor casing. Shaft sealing is provided by a double mechanical SIC/SIC arrangement with integrated moisture sensors. The unit includes thermal switches in the windings, Class H insulation, a 10-metre 07RN8-F power cable, and an IP68 rated enclosure. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 50 mm free passage for processing wastewater containing solids in collection networks.
- 3 kW 2-pole motor operating at 2909 rpm on a 3 x 415V three-phase supply with 6.4 Amps rated current.
- High-head performance up to 21.6 m for efficient wastewater relocation in municipal collection systems.
- DN 65 inlet and DN 80 (3") discharge connection with DIN flange standards for standard infrastructure piping.
- Double mechanical SIC/SIC shaft seals in an oil chamber providing redundant moisture defence for the motor.
- Winding-integrated thermal switches for automatic electrical safety and protection against overheating.
- Integrated moisture sensors for monitoring of seal integrity in deep wet well installations.
- 10-metre 07RN8-F power cable and IP68 enclosure for continuous submerged service in collection systems.
SPECIFICATIONS
| Max Flow | 1164 L/Min |
| Max Head | 21.6 m |
| Power | 3 kW / 415v |
| Rated Current | 6.4 Amps |
| Suitable For | Drainage Networks |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which auto-coupling mounting base connects this pump unit to permanent discharge piping?
Permanent discharge piping interfaces cleanly with Grundfos SL1.50.80.30.2.50B.C via a dedicated auto-coupling mounting base for submersible sumps.
For regional sewage collection networks, what peak volumetric flow throughput is maintained per minute?
Across regional sewage networks, SL1.50.80.30.2.50B.C sustains an operational throughput reaching 1164 L/Min.
For demanding wastewater collection networks, what maximum hydraulic lift is developed during peak pumping?
Demanding collection networks rely on SL1-50-80-30-2-50B-C to develop a maximum hydraulic lift of 21.6 m.
What electrical power capacity, operating line voltage, and full-load current run this motor?
The motor in SL1 50 80 30 2 50B C produces a power capacity of 3 kW when connected to a three-phase 415 V grid line at 6.4 Amps.
How does the closed S-tube design facilitate smooth solids movement through municipal discharge lines?
Smooth solids movement is facilitated in SL1/50/80/30/2/50B/C by its closed S-tube runner, providing a generous 50 mm spherical clearance.
