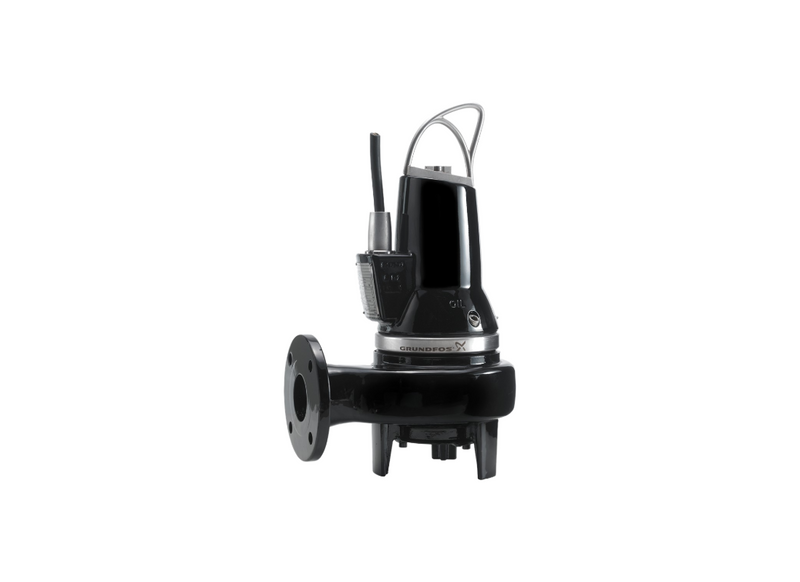

Grundfos SL1.50.80.40.2.50B.C Cast Iron 2-Pole Wastewater Pump for Industrial Effluent with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Industrial effluent transfer and municipal wastewater collection systems are the focus of the Grundfos SL1.50.80.40.2.50B.C. This cast iron submersible pump holds CE EN12050-2 approval and is built for treatment plants and centralized sumps. It is suitable for conveying untreated wastewater through discharge piping in civil environments.
This model features a 4 kW 2-pole motor running at 2930 rpm. Operating on a 3 x 415V supply with a rated current of 8.2 Amps, it provides a maximum head up to 26 m and a maximum flow up to 1164 L/min. The motor is rated for continuous S1 duty in untreated wastewater with a temperature range of 0°C to 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller is designed for untreated wastewater containing solids up to 50 mm while helping reduce the risk of clogging. The unit includes a DN 65 inlet and a DN 80 (3") outlet with DIN flanges. This configuration supports the transfer of untreated effluents in industrial transfer sequences.
Built with an EN-GJL-250 cast iron pump housing and motor casing, the unit features a double SIC/SIC mechanical shaft seal arrangement. Integrated moisture sensors are used for seal and motor monitoring. Protection includes PTC sensors, winding-embedded thermal switches, 10 metres of LYNIFLEX power cable, and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 50 mm free passage for reliable transit of solids-laden water in industrial applications.
- 4 kW 2-pole motor operating at 2930 rpm on a 3 x 415V three-phase supply with 8.2 Amps rated current.
- High-head performance up to 26 m for high-pressure wastewater relocation in treatment plants and sumps.
- DN 65 inlet and DN 80 (3") discharge connection with DIN flange standards for industrial piping infrastructure.
- Double mechanical SIC/SIC shaft seals with an oil chamber for redundant moisture defence against fluid infiltration.
- Integrated PTC sensors and moisture detection for advanced motor health and active thermal monitoring.
- Class H stator insulation and IP68 protection classification for safe, deep-well submerged operation.
- 10-metre heavy-duty LYNIFLEX power cable for flexible installation in deep wastewater sumps and wet wells.
SPECIFICATIONS
| Max Flow | 1164 L/Min |
| Max Head | 26 m |
| Power | 4 kW / 415v |
| Rated Current | 8.2 Amps |
| Suitable For | Effluent Systems |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 65 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across subterranean sewage gathering vaults, what maximum fluid discharge rate does this submersible unit displace?
Subterranean sewage vaults utilize Grundfos SL1.50.80.40.2.50B.C to displace wastewater at a peak rate of 1164 L/Min.
Across subterranean collection vaults, what vertical elevation limit applies to this submersible unit?
Subterranean collection vaults operate with SL1.50.80.40.2.50B.C delivering a vertical elevation reaching 26 m.
Which motor kilowatt output, supply line rating, and operational current power this unit?
Configured for utility supplies, SL1-50-80-40-2-50B-C incorporates a 4 kW motor that operates on a three-phase 415 V line drawing 8.2 Amps.
What free internal passage clearance protects this wastewater pump from solids obstruction?
Solids obstruction is prevented by SL1 50 80 40 2 50B C through an internal S-tube passage clearance measuring 50 mm in diameter.
What physical mounting hardware facilitates guide rail installation in collection wet wells?
Guide rail installation in collection wet wells is facilitated by SL1/50/80/40/2/50B/C connecting smoothly to automatic coupling brackets.
