SKU: 98626021

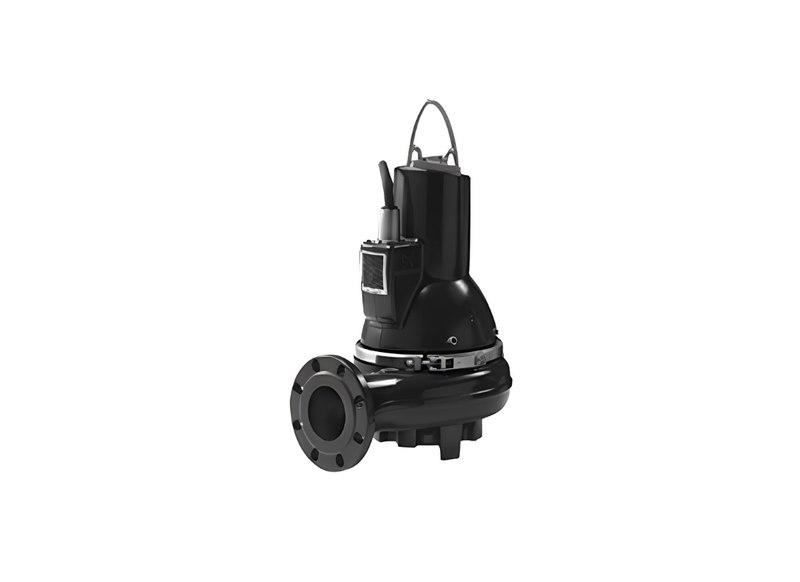

Grundfos SL1.80.100.15.4.50B.C Cast Iron 4-Pole Wastewater Pump for Transfer Stations with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Industrial wastewater transfer stations utilise the Grundfos SL1.80.100.15.4.50B.C for pumping untreated wastewater containing large solids. Holding CE EN12050-1 approval, this cast iron model is intended for permanent installation in wet wells and basins in municipal and industrial applications.
Operating on a 3 x 415V supply with a rated current of 3.9 Amps, the 1.5 kW 4-pole motor runs at 1451 rpm. It achieves a maximum head up to 8.4 m and maximum flow up to 2118 L/min. This model is rated for continuous S1 submerged duty in untreated wastewater at temperatures up to 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The hydraulic design incorporates an S-tube impeller providing an 80 mm free passage for untreated wastewater containing solids. The pump features a DN 100 inlet and a DN 100 (4") outlet with DIN flange standards. This configuration supports the discharge of contaminated media through high-volume transfer systems.
The pump housing and motor casing are constructed from EN-GJL-250 cast iron. Sealing is provided by a double SIC/SIC mechanical arrangement in a primary oil chamber. Integrated moisture sensors are used for seal and motor monitoring, along with winding-embedded thermal switches and 10 metres of 07RN8-F power cable. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 80 mm free passage for handling solids-laden wastewater without clogging in transfer stations.
- 1.5 kW 4-pole motor operating at 1451 rpm on a 3 x 415V three-phase supply with 3.9 Amps rated current.
- DN 100 inlet and DN 100 (4") discharge connection for volume-intensive fluid relocation in transfer networks.
- Double mechanical SIC/SIC shaft seals in an oil chamber providing a redundant moisture barrier for the motor.
- Integrated moisture sensors for monitoring of internal mechanical components during deep submersion.
- Built-in thermal switches within the motor winding for automatic electrical safety and heat regulation.
- 10-metre heavy-duty 07RN8-F power cable and IP68 enclosure for reliable deep-well operation in transfer stations.
- CE EN12050-1 certified for use in industrial wastewater transfer and municipal collection stations.
SPECIFICATIONS
| Max Flow | 2118 L/Min |
| Max Head | 8.4 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.9 Amps |
| Suitable For | Transfer Stations |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What electrical power rating, supply voltage connection, and operational amperage run this unit?
The power configuration of Grundfos SL1.80.100.15.4.50B.C includes a 1.5 kW motor operating on a three-phase 415 V connection with a current draw of 3.9 Amps.
What spherical clearance protects this large wastewater pump from solids obstruction in deep wells?
Deep well installations are protected from solids obstruction by SL1.80.100.15.4.50B.C through an expansive 80 mm spherical clearance.
Which guide rail mounting base supports rapid servicing retrieval in deep collection wells?
Deep collection wells deploy SL1-80-100-15-4-50B-C on guide rail mounting bases that support rapid hoist retrieval for inspection.
In municipal treatment screening intakes, what maximum fluid throughput is displaced per minute during heavy loading?
At municipal screening intakes, SL1 80 100 15 4 50B C discharges wastewater at a maximum rate of 2118 L/Min.
In regional treatment plant intake sumps, what peak discharge elevation is reached during heavy sewage transfer?
Intake sumps in treatment plants reach a discharge elevation of 8.4 m when operating with SL1/80/100/15/4/50B/C.
