SKU: 98626025

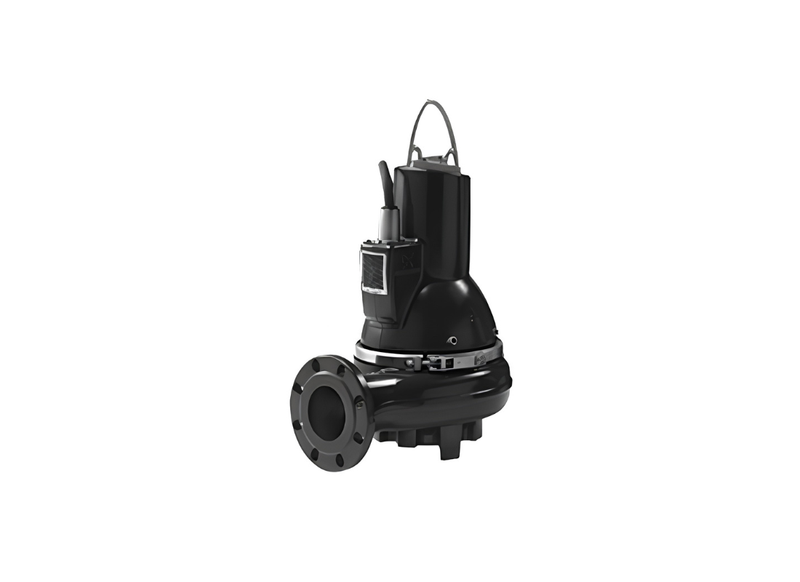

Grundfos SL1.80.100.22.4.50B.C Cast Iron 4-Pole Wastewater Pump for Lift Stations with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Municipal lift stations and wastewater handling are the primary applications for the Grundfos SL1.80.100.22.4.50B.C. Certified under CE EN12050-1, this submersible pump is designed for permanent installation in basins and wet wells. It is intended for conveying raw effluents containing large solids in high-volume municipal environments.
The model features a 2.2 kW 4-pole motor operating at 1462 rpm on a 3 x 415V supply with a rated current of 5.4 Amps. It provides a maximum head up to 11.4 m and maximum flow up to 2334 L/min. The motor is designed for continuous S1 submerged service in liquids between 0°C and 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller is designed for untreated wastewater containing solids up to 80 mm while helping reduce the risk of clogging. The hydraulic design features a DN 100 inlet and a DN 100 (4") outlet with DIN flange connections. This single-vane design supports consistent fluid transfer in municipal collection networks.
Built with an EN-GJL-250 cast iron pump housing and motor casing, the unit includes a double mechanical SIC/SIC seal arrangement. Integrated moisture sensors are used for seal and motor monitoring. Protection also includes thermal switches in the windings, 10 metres of 07RN8-F power cable, and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 80 mm free passage for processing contaminated fluids without clogging in lift stations.
- 2.2 kW 4-pole motor operating at 1462 rpm on a 3 x 415V three-phase supply with 5.4 Amps rated current.
- DN 100 inlet and DN 100 (4") discharge connection for volume-intensive wastewater relocation.
- Double SIC/SIC mechanical shaft seals in an oil chamber for redundant moisture defence for the stator.
- Integrated moisture sensors for promonitoring of seal and motor integrity in deep sumps.
- Built-in thermal switches within the stator windings for active protection against electrical overheating.
- 10-metre heavy-duty 07RN8-F power cable and IP68 moisture protection for reliable submerged service.
- CE EN12050-1 certified for use in municipal lift stations and high-volume wastewater collection networks.
SPECIFICATIONS
| Max Flow | 2334 L/Min |
| Max Head | 11.4 m |
| Power | 2.2 kW / 415v |
| Rated Current | 5.4 Amps |
| Suitable For | Lift Stations |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What everyday water supply duties are best performed by this pump?
Everyday water management duties for the Grundfos SL1.80.100.22.4.50B.C focus on Smooth passage of unscreened waste is achieved in via a specialized S-tube channel accommodating solids up to 80 mm, providing reliable pumping performance.
What pipe connection or mounting system does this pump use?
Connecting via a standard auto-coupling, the SL1.80.100.22.4.50B.C aligns cleanly with system plumbing headers.
How much fluid can this pump evacuate during peak demand?
Peak fluid displacement on the SL1-80-100-22-4-50B-C delivers up to 2334 L/Min under rated operating conditions.
How many meters of dynamic lift does this pump provide?
Fluid elevation through vertical risers reaches up to 11.4 m with the SL1 80 100 22 4 50B C under standard duty points.
How much electricity and current does this pump draw under load?
It operates on 415 V three-phase power, with the SL1/80/100/22/4/50B/C utilizing a durable 2.2 kW motor rated at 5.4 Amps.
