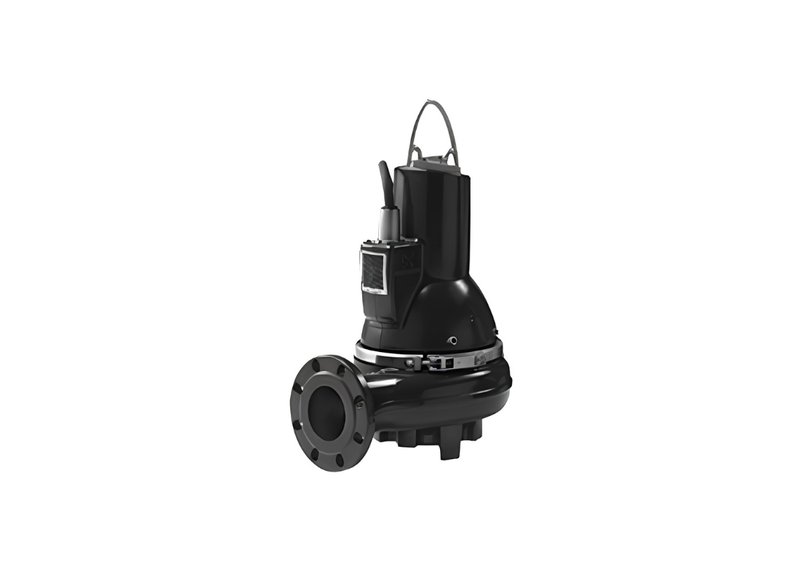

Grundfos SL1.80.100.55.4.50B.C Cast Iron 4-Pole Wastewater Pump for Industrial Effluent with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Industrial effluent management relies on the Grundfos SL1.80.100.55.4.50B.C for permanent submerged installation in collection reservoirs and sumps. This cast iron model holds CE EN12050-1 approval and is designed for untreated wastewater transfer in heavy-duty utility sites. It is suitable for handling contaminated liquids in demanding processing environments.
A 5.5 kW 4-pole motor operating on a 3 x 415V supply with a rated current of 10.9 Amps powers the unit at 1463 rpm. It achieves a maximum head up to 19.1 m and a maximum flow up to 3414 L/min. The motor is designed for continuous S1 duty in untreated wastewater with a temperature range of 0°C to 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller provides an 80 mm free passage for untreated wastewater containing solids while helping reduce the risk of clogging. The hydraulic design features a DN 100 inlet and a 4" (100 mm) outlet with DIN flange standards. This configuration supports consistent fluid discharge in industrial networks.
Construction includes an EN-GJL-250 cast iron pump housing and motor casing. Protection features a double SIC/SIC mechanical shaft seal and integrated PTC sensors for motor protection. Integrated moisture sensors are used for seal and motor monitoring, along with 10 metres of LYNIFLEX power cable and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 80 mm free passage for reliable transit of wastewater with high solids content.
- 5.5 kW 4-pole motor operating at 1463 rpm on a 3 x 415V three-phase supply with 10.9 Amps rated current.
- DN 100 inlet and 4" (100 mm) discharge connection for high-volume industrial wastewater transfer.
- Double mechanical SIC/SIC shaft seals with an oil chamber for redundant moisture defence for the motor.
- Integrated PTC sensors and moisture detection for advanced motor health and thermal monitoring.
- Class H stator insulation and IP68 protection classification for safe, deep-well submerged operation.
- 10-metre rugged LYNIFLEX power cable for flexible installation in deep wastewater sumps and wet wells.
- CE EN12050-1 certified for use in industrial effluent management and demanding disposal tasks.
SPECIFICATIONS
| Max Flow | 3414 L/Min |
| Max Head | 19.1 m |
| Power | 5.5 kW / 415v |
| Rated Current | 10.9 Amps |
| Suitable For | Industrial Effluent |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
For high-capacity municipal sewage sumps, what peak hydraulic elevation does this pump achieve?
High-capacity sewage sumps rely on Grundfos SL1.80.100.55.4.50B.C to achieve a peak hydraulic elevation of 19.1 m.
What motor rating, voltage supply connection, and full-load current run this submerged assembly?
Running this submerged unit, SL1.80.100.55.4.50B.C features a 5.5 kW motor connected across a three-phase 415 V supply at 10.9 Amps.
What free solids passage clearance supports dependable sewage movement across this large volute?
Dependable sewage movement is supported in SL1-80-100-55-4-50B-C through an expansive 80 mm free solids passage clearance across the volute.
Which guide rail pedestal arrangement facilitates submerged deployment in collection sumps?
Submerged deployment in collection sumps is facilitated by SL1 80 100 55 4 50B C connecting directly to automatic coupling pedestals.
For high-capacity sewage sumps, what maximum fluid displacement volume does this heavy unit achieve?
High-capacity sewage sumps utilize SL1/80/100/55/4/50B/C to achieve a fluid displacement volume of 3414 L/Min.
