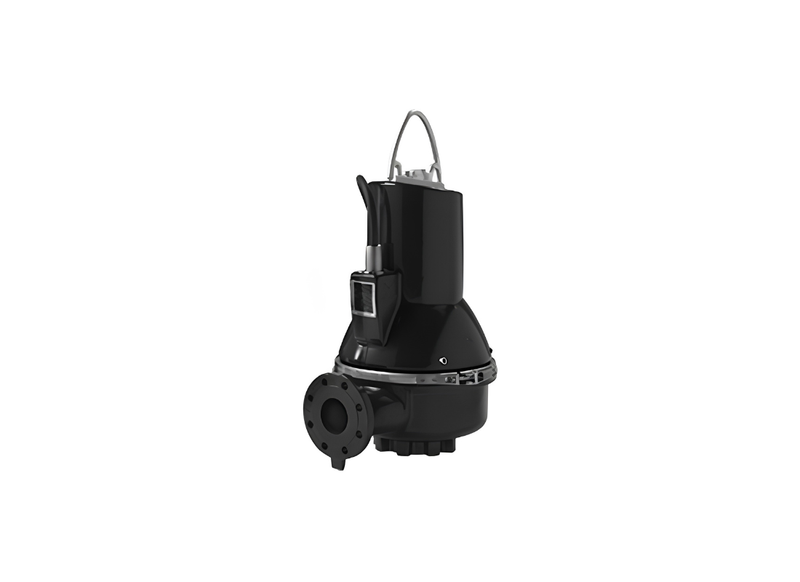

Grundfos SL1.80.80.15.4.50B.C Cast Iron 4-Pole Wastewater Pump for Pump Stations with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Pumping stations and low-lift industrial sumps are the primary applications for the Grundfos SL1.80.80.15.4.50B.C. This submersible wastewater pump holds CE EN12050-1 approval and is intended for untreated wastewater containing large solids. It is suitable for permanent submerged installation in municipal wet wells and basins.
A 1.5 kW 4-pole motor powers the unit at 1451 rpm on a 3 x 415V supply with a rated current of 3.9 Amps. It delivers a maximum head up to 8.1 m and a maximum flow up to 2052 L/min. The motor is calibrated for continuous S1 duty in untreated wastewater with a maximum liquid temperature of 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller is designed for untreated wastewater containing solids up to 80 mm while helping reduce the risk of clogging. The hydraulic design features a DN 100 inlet and a DN 80 (3") outlet connection. This supports the conveying of large solids in treatment plants and municipal pumping stations.
Construction includes an EN-GJL-250 cast iron pump housing and motor casing. Protection features a double SIC/SIC mechanical seal arrangement and winding-integrated thermal switches for motor protection. The unit is equipped with moisture sensors, 10 metres of 07RN8-F power cable, and an IP68 enclosure rating for submerged service. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 80 mm free passage for handling large solids-laden wastewater in pump stations.
- 1.5 kW 4-pole motor operating at 1451 rpm on a 3 x 415V three-phase supply with 3.9 Amps rated current.
- DN 100 inlet and DN 80 (3") discharge connection for high-volume fluid relocation in municipal networks.
- Double mechanical SIC/SIC shaft seals in an oil chamber providing redundant moisture defence for the motor.
- Integrated moisture sensors for monitoring of internal pump core and seal integrity during service.
- Built-in thermal switches within the motor winding for automatic overheating protection and electrical safety.
- 10-metre heavy-duty 07RN8-F power cable and IP68 enclosure for continuous operation in deep wet wells.
- CE EN12050-1 certified for use in municipal pumping stations and low-lift industrial sump applications.
SPECIFICATIONS
| Max Flow | 2052 L/Min |
| Max Head | 8.1 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.9 Amps |
| Suitable For | Pump Stations |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In municipal sewage lift stations, what peak dynamic lift does this heavy submersible pump maintain?
Municipal sewage lift stations utilize Grundfos SL1.80.80.15.4.50B.C to maintain a peak dynamic lift of 8.1 m.
What are the motor kilowatt rating, line voltage feed, and full-load current for this submerged unit?
Electrical ratings for SL1.80.80.15.4.50B.C specify a 1.5 kW submersible motor fed by a three-phase 415 V connection at 3.9 Amps.
What spherical through-let dimension allows large solids to traverse this wastewater casing?
Large wastewater solids traverse SL1-80-80-15-4-50B-C freely thanks to an expansive 80 mm spherical through-let designed into the S-tube channel.
Which guide rail auto-coupling arrangement enables rapid hoist extraction for servicing?
Routine servicing is simplified with SL1 80 80 15 4 50B C, which docks onto guide rail auto-coupling bases for rapid hoist extraction.
In municipal pumping stations, what peak volumetric displacement is sustained per minute?
Within municipal pumping stations, SL1/80/80/15/4/50B/C maintains a peak volumetric displacement of 2052 L/Min.
