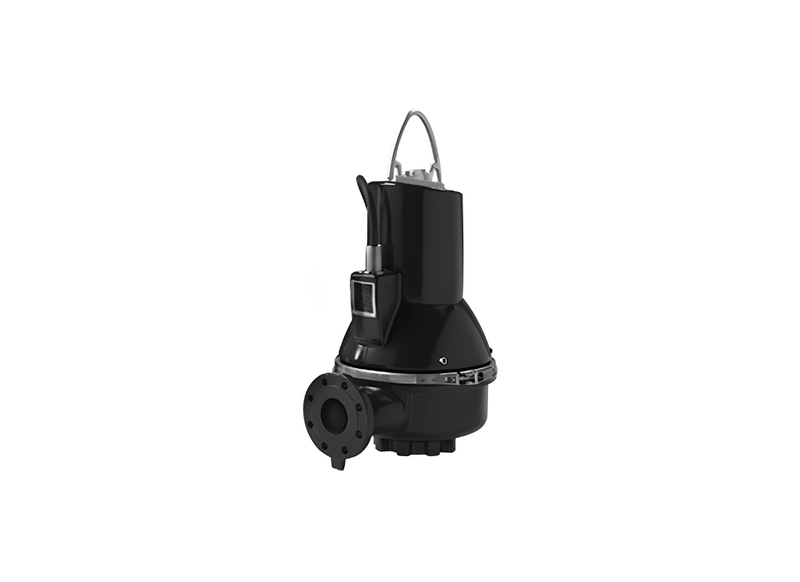

Grundfos SL1.80.80.55.4.50B.C Cast Iron 4-Pole Wastewater Pump for Municipal Transfer with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Municipal transfer applications benefit from the Grundfos SL1.80.80.55.4.50B.C, a submersible wastewater pump suitable for permanent installation in wet wells and basins. This unit holds CE EN12050-1 approval and is intended for handling untreated wastewater containing large solids. It is designed for high-flow fluid transfer in municipal networks.
This model features a 5.5 kW 4-pole motor operating at 1463 rpm. Operating on a 3 x 415V supply with a rated current of 10.9 Amps, it achieves a maximum flow up to 3282 L/min and a maximum head up to 19.4 m. The motor is rated for continuous S1 duty in untreated wastewater at temperatures up to 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
The S-tube impeller provides an 80 mm free passage for untreated wastewater containing solids while helping reduce the risk of clogging. The unit is equipped with a DN 100 inlet and a DN 80 (3") outlet connection. This single-vane hydraulic configuration supports the discharge of raw effluents in municipal collection sumps.
The pump housing and motor casing are constructed from EN-GJL-250 cast iron for durability in submerged service. Protection includes a double mechanical SIC/SIC seal arrangement and integrated PTC sensors for motor monitoring. Integrated moisture sensors are included for seal and motor monitoring, along with a 10-metre LYNIFLEX cable and IP68 rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 80 mm free passage for processing wastewater with high solids content without clogging.
- 5.5 kW 4-pole motor operating at 1463 rpm on a 3 x 415V three-phase supply with 10.9 Amps rated current.
- DN 100 inlet and DN 80 (3") discharge connection for high-volume municipal wastewater relocation.
- Double SIC/SIC mechanical seal arrangement with an oil chamber for redundant motor shaft protection.
- Integrated PTC sensors and moisture detection for advanced motor and seal health monitoring.
- Water-in-oil sensor included to provide early warning of potential fluid ingress into the internal oil chamber.
- 10-metre rugged LYNIFLEX power cable and IP68 protection classification for deep-well operation.
- CE EN12050-1 certified for use in high-capacity municipal transfer and collection systems.
SPECIFICATIONS
| Max Flow | 3282 L/Min |
| Max Head | 19.4 m |
| Power | 5.5 kW / 415v |
| Rated Current | 10.9 Amps |
| Suitable For | High-Capacity Transfer |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
For extensive wastewater detention basins, what maximum fluid displacement is provided during high influx conditions?
High influx conditions in detention basins are managed by Grundfos SL1.80.80.55.4.50B.C with a fluid displacement of 3282 L/Min.
For regional wastewater drainage networks, what peak discharge elevation can this submersible assembly attain?
Regional drainage networks deploy SL1.80.80.55.4.50B.C to attain a peak discharge elevation of 19.4 m.
What are the electrical power consumption, grid voltage rating, and full-load amperage of this pump?
Grid electrical specifications for SL1-80-80-55-4-50B-C include a 5.5 kW motor operating from a three-phase 415 V line at 10.9 Amps.
What spherical passage size prevents clogging from suspended solids across this sewage casing?
Suspended solids up to 80 mm clear the casing of SL1 80 80 55 4 50B C without clogging thanks to its single-channel S-tube runner.
Which guide rail mounting arrangement allows rapid hoist removal without dewatering the pit?
Rapid hoist removal without dewatering the pit is enabled by SL1/80/80/55/4/50B/C docking onto dual guide rail auto-coupling bases.
