SKU: 98625985

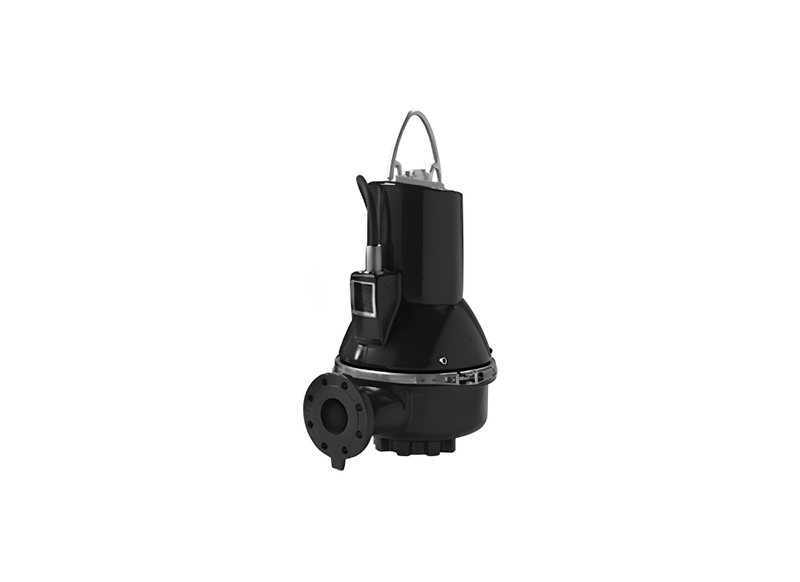

Grundfos SL1.80.80.75.4.50B.C Cast Iron 4-Pole Wastewater Pump for Municipal Transfer with S-Tube Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
High-volume municipal wastewater transfer networks utilise the Grundfos SL1.80.80.75.4.50B.C, a cast iron submersible pump certified under CE EN12050-1. It is suitable for permanent submerged installation and developed for handling untreated wastewater containing large solids in civil infrastructure.
The pump is powered by a 7.5 kW 4-pole motor operating at 1462 rpm on a 3 x 415V supply with a rated current of 14.4 Amps. It achieves a maximum flow up to 3300 L/min and a maximum head up to 23.6 m. The motor is designed for continuous S1 duty in untreated wastewater containing solids between 0°C and 40°C. The motor is cooled by the surrounding pumped liquid during normal submerged operation.
Fluid handling is managed by an S-tube impeller providing an 80 mm free passage while helping reduce the risk of clogging. Hydraulic connections include a DN 100 inlet and a DN 80 (3") outlet with DIN flanges. This design facilitates the transfer of large suspended solids in demanding civil wastewater networks.
Construction features an EN-GJL-250 cast iron pump housing and motor casing. Protection includes a double SIC/SIC mechanical shaft seal and integrated PTC thermal sensors for motor protection. The unit features moisture sensors for seal and motor monitoring, 10 metres of LYNIFLEX power cable, and an IP68 enclosure rating. The pump is suitable for installation depths up to 7 metres.
FEATURES
- S-tube impeller with 80 mm free passage for reliable transit of large solids-laden wastewater in municipal networks.
- 7.5 kW 4-pole motor operating at 1462 rpm on a 3 x 415V three-phase supply with 14.4 Amps rated current.
- DN 100 inlet and DN 80 (3") discharge connection for high-volume extraction in municipal networks.
- Double mechanical SIC/SIC seals in an oil chamber providing a redundant moisture defence for the motor.
- Integrated PTC sensors and moisture detection for advanced motor health and active thermal monitoring.
- Built-in water-in-oil sensor for proactive early warning of moisture ingress into the internal oil chamber.
- 10-metre rugged LYNIFLEX power cable and IP68 moisture protection for deep submerged service.
- CE EN12050-1 certified for use in demanding municipal wastewater transfer and collection networks.
SPECIFICATIONS
| Max Flow | 3300 L/Min |
| Max Head | 23.6 m |
| Power | 7.5 kW / 415v |
| Rated Current | 14.4 Amps |
| Suitable For | High-Volume Transfer |
| Body Material | Cast iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across raw effluent wet wells, what maximum dynamic head does this submersible sewage pump deliver?
Raw effluent wet wells operate with Grundfos SL1.80.80.75.4.50B.C delivering a maximum dynamic head of 23.6 m.
Which motor kilowatt rating, operating voltage, and running current drive this submerged assembly?
Driving this submerged assembly, SL1.80.80.75.4.50B.C relies on a 7.5 kW electric motor drawing 14.4 Amps across a three-phase 415 V line.
How does the wide S-tube profile prevent binding from stringy fibrous materials in municipal sewage?
Stringy fibrous materials traverse SL1-80-80-75-4-50B-C without binding due to its wide S-tube runner featuring a 80 mm spherical clearance.
What physical auto-coupling system secures this unit to permanent discharge risers?
Permanent discharge risers are secured to SL1 80 80 75 4 50B C through an automatic coupling system that seals under pump weight.
Across raw effluent gathering sumps, what peak volumetric flow rate does this sewage pump maintain?
Raw effluent gathering sumps operate with SL1/80/80/75/4/50B/C displacing a peak volumetric flow rate of 3300 L/Min.
