SKU: 98625974

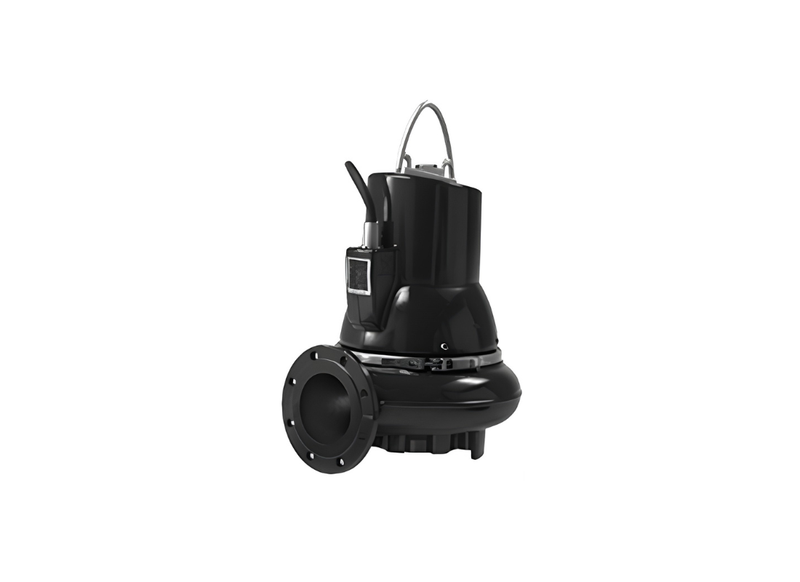

Grundfos SLV.100.100.40.4.50B.C Cast Iron 4-Pole Submersible Pump for Raw Sewage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Highlighting a remarkably resilient material foundation, the SLV.100.100.40.4.50B.C explicitly acts as a heavy-duty non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. This immense commercial machine flawlessly tackles rigorous conditions across demanding subterranean pipelines.
The precisely manufactured dimensional layout is specifically engineered to easily facilitate incredibly dense raw material transfers without delay. Thick unscreened waste liquids are drawn powerfully through a large 100 millimeter suction inlet and instantly ejected out of a matching 100 millimeter discharge port, actively averting structural clogs.
Generating absolute physical authority over severe submerged liquid volumes, the sophisticated motor heavily relies on a balanced 3-phase 415v electrical matrix. Safely utilizing a 4 kW power input while carefully drawing 9.6 Amps during continuous runtime, the rotational assembly produces an approximate maximum flow output of 1998 L/Min.
Guaranteeing unyielding fluid optimization across challenging municipal operations, the reinforced physical structure forces heavy suspended liquids vertically to achieve an approximate maximum head of 14.1 meters. Relying on integrated PTC thermal sensors monitoring the core winding, the apparatus completely evades destructive temperature spikes.
Features
- Driven by a meticulously optimized SuperVortex impeller strictly capable of passing highly destructive solid materials thoroughly up to 100 millimeters.
- Employs a specialized stainless-steel clamp assembling system to strongly expedite deep motor detachment without requiring custom industrial hand tools.
- Defended by an industrial-grade silicon carbide primary shaft sealing ring (SIC/SIC) to entirely isolate raw chemical liquid from the core motor shaft.
- Certified exclusively with an industrial IP68 waterproof enclosure class ensuring total interior component isolation during continuous submerged duty.
- Designed flawlessly to operate at a steady 1464 rpm rotational speed, dramatically maximizing raw physical handling capabilities over long deployments.
- Features a highly flexible 10 meter LYNIFLEX submersible electrical cable engineered to survive constant harsh chemical exposures inside deep waste tanks.
SPECIFICATIONS
| Max Flow | 1998 L/Min |
| Max Head | 14.1 m |
| Power | 4 kW / 415v |
| Rated Current | 9.6 Amps |
| Suitable For | Thick Digested Sludge |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Driven by its high-torque motor, what maximum volumetric throughput does this pump achieve?
Civil collection sumps operate with Grundfos SLV.100.100.40.4.50B.C discharging up to 1998 L/Min.
How many meters of vertical lift can this submerged unit sustain under peak operating duty?
Station engineers configure SLV.100.100.40.4.50B.C to achieve a maximum delivery elevation of 14.1 m.
Under plant electrical standards, which electrical specifications, operating voltage feed, and full-load amperage support this drive?
Electrical feed configurations for SLV-100-100-40-4-50B-C incorporate a 4 kW motor connected to a three-phase 415 V supply at 9.6 Amps.
Channeling unscreened municipal waste, how does the vortex hydrodynamic action sweep heavy wastewater particulates through the casing?
Clearance dimensions in SLV 100 100 40 4 50B C allow 100 mm spherical solids to pass through the vortex created by the SuperVortex runner.
Preventing joint leakage under pressure, which mounting system provides automatic pressure sealing against wet well discharge pipes?
The auto-coupling mounting arrangement for SLV/100/100/40/4/50B/C eliminates in-pit mechanical fastenings during pump installation.
