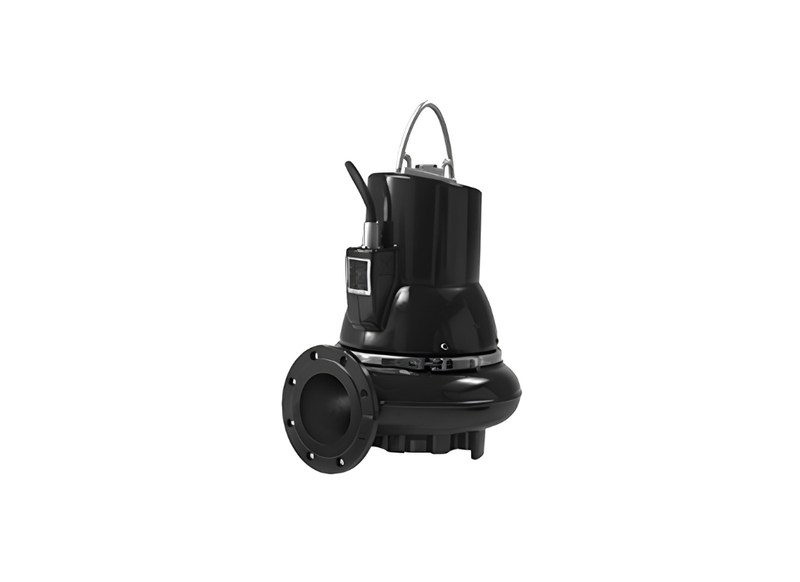

Grundfos SLV.100.100.75.4.50B.C Cast Iron 4-Pole Submersible Pump for Unscreened Sewage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing demanding long-term operational scaling and critical infrastructure protection, the SLV.100.100.75.4.50B.C acts as an exceptionally rugged non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. Its meticulous mechanical engineering dramatically curtails expensive downtime.
The robust external structure heavily anchors a perfectly unrestricted interior fluid corridor uniquely tailored for massive density optimization. Thick raw debris travels unhindered into a 100 millimeter suction connection and forcefully exits out of a matched 100 millimeter discharge opening, relentlessly preserving the mechanical housing integrity.
Processing immense volumetric demands flawlessly, this industrial mechanism overcomes severe fluid tension utilizing a precise 3-phase 415v electrical matrix. Reliably regulating exactly 14.4 Amps to harness a massive 7.5 kW power input, the internal drive forcefully propels an approximate maximum flow volume reaching exactly 2418 L/Min.
Dominating fluid forces during highly intense municipal deployments, the rotational mechanism forces dense waste vertically to confidently overcome an approximate maximum head measuring 19.9 meters. Relying deeply on embedded PTC thermal switches autonomously monitoring the winding, it effectively eliminates destructive heat spikes constantly.
Features
- Engineered strictly with an efficient SuperVortex impeller strategically calibrated to safely allow the passage of solid materials entirely up to 100 millimeters.
- Constructed utilizing a unique stainless-steel clamp assembling system that definitively guarantees rapid field disassembly for mandatory service and maintenance.
- Relies deeply on a high-endurance silicon carbide primary shaft seal configuration (SIC/SIC) to flawlessly protect isolated internal electrical chamber integrity.
- Features a premium industrial IP68 rated waterproof enclosure class paired exceptionally with an H thermal insulation class motor for immensely superior defense.
- Flawlessly calibrated to spin steadily at 1462 rpm, powerfully balancing intense raw suspended flow propulsion with unparalleled mechanical operational longevity.
- Supplied securely out of the box with a flexible 10 meter LYNIFLEX electrical cable entirely jacketed to comfortably survive deep subterranean chemical exposures.
SPECIFICATIONS
| Max Flow | 2418 L/Min |
| Max Head | 19.9 m |
| Power | 7.5 kW / 415v |
| Rated Current | 14.4 Amps |
| Suitable For | Heaviest Unscreened Raw Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
With heavy wastewater entering the vault, what maximum flow rate is evacuated per minute?
Untreated sewage transfer reaches a certified maximum of 2418 L/Min with Grundfos SLV.100.100.75.4.50B.C.
Across low-lying municipal catchment basins, what maximum discharge head does this pump attain?
Operational head boundaries for SLV.100.100.75.4.50B.C confirm a peak dynamic elevation of 19.9 m.
Drawing from main distribution boards, which electrical parameters, supply line voltage, and full-load current run this submersible motor?
Submerged motor performance for SLV-100-100-75-4-50B-C specifies a 7.5 kW output across a three-phase 415 V line drawing 14.4 Amps.
When pumping fibrous waste, how does the recessed runner profile enable large spherical waste to clear without contact?
Vortex hydrodynamics in SLV 100 100 75 4 50B C maintain a 100 mm free spherical clearance around the SuperVortex impeller, preventing fibrous waste accumulation.
In high-capacity collection wet wells, which auto-coupling arrangement facilitates secure submerged docking in municipal wet wells?
Quick-release auto-coupling capability in wet wells allows SLV/100/100/75/4/50B/C to be lifted without disturbing permanent discharge pipework.
