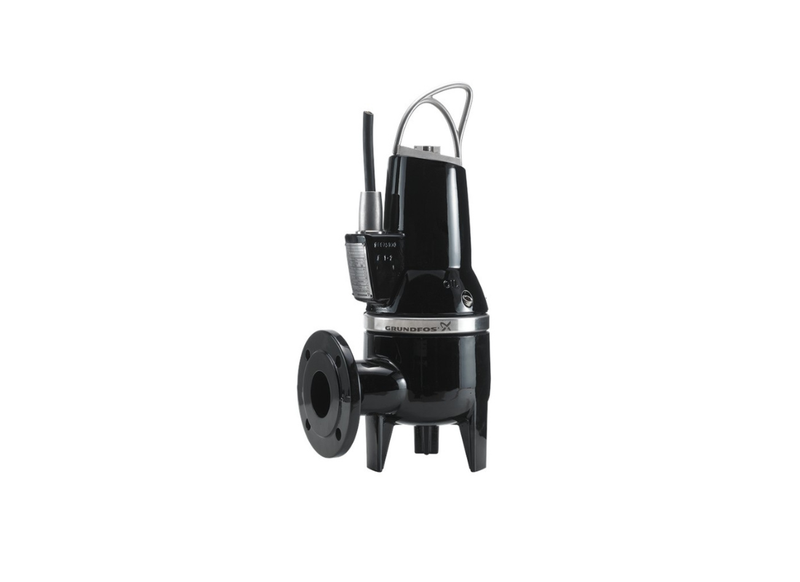

Grundfos SLV.65.65.40.A.EX.2.50B.C Cast Iron 2-Pole Submersible Pump for Process Water with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Detailing internal fluid velocity paths and hydraulic stability, the SLV.65.65.40.A.EX.2.50B.C operates as an elite non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The internal chamber dynamics are meticulously calculated to sustain aggressive submerged workloads.
Addressing heavy operational loads and environmental demands, the unit leverages a highly robust 3-phase 415v electrical framework to deliver a 4 kW power input. Drawing precisely 8.2 Amps, the motor assembly efficiently generates massive rotational torque, resulting in an approximate maximum flow capability of 1002 L/Min.
Highlighting the primary structural material choice, the pump is securely encased within a heavy-duty EN-GJL-250 cast iron exterior housing. This reinforced architectural casting effectively dampens intense vibration while directing pressurized fluids effortlessly from the 80 millimeter suction inlet through to the 65 millimeter discharge port.
The system configuration prioritizes long-term efficiency and explosion-proof safety containment for highly volatile zones. By systematically overcoming profound vertical resistance, the mechanism achieves an approximate maximum head of 30.4 meters, guaranteeing unyielding fluid distribution across the most demanding municipal infrastructure.
Features
- Driven by an optimized SuperVortex impeller capable of passing highly destructive solid materials up to 65 millimeters.
- Employs a specialized stainless-steel clamp assembling system to expedite motor detachment without requiring custom tools.
- Defended by an industrial-grade silicon carbide primary shaft sealing ring (SIC/SIC) to block liquid from the motor shaft.
- Equipped with high-precision moisture sensors and an independent water-in-oil sensor for active diagnostic feedback.
- Certified with an industrial IP68 waterproof enclosure class ensuring total isolation during continuous submerged duty.
- Fitted with an advanced PTC thermal protection standard to instantly safeguard the core from catastrophic temperature spikes.
SPECIFICATIONS
| Max Flow | 1002 L/Min |
| Max Head | 30.4 m |
| Power | 4 kW / 415v |
| Rated Current | 8.2 Amps |
| Suitable For | High-Head Commercial Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 65 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum volumetric flow rate can this submerged wastewater assembly evacuate per minute?
Discharge throughput is rated at a maximum of 1002 L/Min for Grundfos SLV.65.65.40.A.EX.2.50B.C.
Which maximum hydraulic elevation is sustained by this submersible unit during active pumping?
Regional wastewater sumps utilize SLV.65.65.40.A.EX.2.50B.C to sustain an operational dynamic head of 30.4 m.
Connecting to municipal station feeds, what electrical drive parameters, phase voltage feed, and full-load current power this heavy unit?
Operational energy delivery in SLV-65-65-40-A-EX-2-50B-C provides 4 kW across a three-phase 415 V feed, drawing 8.2 Amps at full load.
To prevent particulate lodging, what free internal passage clearance accommodates unscreened sewage across this vortex casing?
Internal volute geometry in SLV 65 65 40 A EX 2 50B C sustains a 65 mm spherical through-let via its SuperVortex profile, preventing particulate accumulation in collection sumps.
To service the unit without pit entry, which auto-coupling pedestal allows rapid hoist extraction without sump dewatering?
Guide rail mounting in collection wells is supported by SLV/65/65/40/A/EX/2/50B/C through direct compatibility with standard auto-coupling bases.
