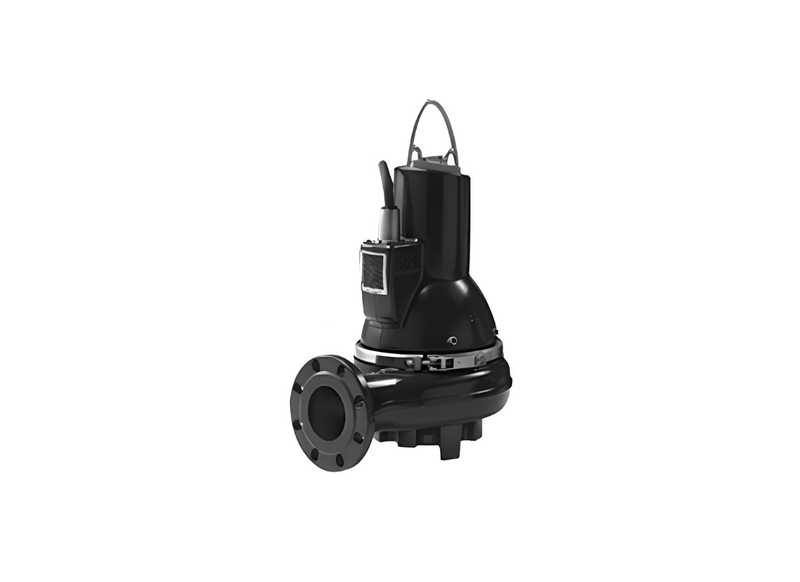

Grundfos SLV.80.100.110.2.50B.C Cast Iron 2-Pole Submersible Pump for Sewage Handling with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Confronting severe continuous fluid burdens, the SLV.80.100.110.2.50B.C operates as an elite non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. It tackles constant operational tension across deep municipal deployments with absolute structural confidence.
Detailing optimal mechanical pathways to permanently evade destructive clogging, the dense cast iron housing leverages an expanding configuration. Viscous raw material travels straight into an 80 millimeter suction connection and accelerates outward via a 100 millimeter discharge flange, dramatically cutting destructive internal turbulence.
Projecting massive kinetic capabilities, the motor relies upon a strictly balanced 3-phase 415v electrical framework to safely harness an 11 kW power input. By accurately regulating heavy electrical consumption at 21.6 Amps, the internal drive smoothly produces an astonishing approximate maximum flow capacity of 2166 L/Min.
Mitigating physical risks during intense deployments, this mechanism completely dominates vertical liquid resistance to reliably maintain an approximate maximum head of 42.1 meters. Equipped precisely with dedicated PTC thermal switches, the electrical core entirely neutralizes devastating internal heat spikes across its extensive lifecycle.
Features
- Fitted with an advanced SuperVortex impeller to cleanly process concentrated long fibres and solid materials up to 80 millimeters.
- Integrates a quick-release stainless-steel clamp assembling system allowing completely instant structural separation of the motor and pump head.
- Protected entirely by a highly resilient silicon carbide mechanical shaft seal interface (SIC/SIC) shielding the interior rotational components.
- Constructed directly to rigorous industrial IP68 waterproof enclosure specifications while strictly maintaining an H class operational thermal rating.
- Designed securely with an ultra-high 2947 rpm rated speed motor architecture that maximizes reliability alongside heavy fluid handling capacity.
- Connected exclusively via a heavily sheathed 10 meter LYNIFLEX electrical cable structured carefully to survive brutal long-term chemical exposures.
SPECIFICATIONS
| Max Flow | 2166 L/Min |
| Max Head | 42.1 m |
| Power | 11 kW / 415v |
| Rated Current | 21.6 Amps |
| Suitable For | Max-Power Raw Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Throughout demanding drainage cycles, what maximum volumetric rate does this pump evacuate?
Channeling raw municipal waste, Grundfos SLV.80.100.110.2.50B.C sustains an operational throughput of 2166 L/Min.
Which peak dynamic elevation does this assembly attain when elevating effluent?
Submerged wet pit operations rely on SLV.80.100.110.2.50B.C to push fluid up to 42.1 m.
Powering steady impeller rotation, which motor kilowatt output, supply voltage rating, and operational amperage power this heavy unit?
The submersible drive in SLV-80-100-110-2-50B-C requires a three-phase 415 V connection to produce 11 kW while drawing 21.6 Amps.
To prevent suction clogging, how does the recessed vortex hydraulic corridor prevent solids from obstructing the suction port?
The recessed SuperVortex configuration of SLV 80 100 110 2 50B C maintains a 80 mm through-let that prevents particulate lodging in the volute.
Across municipal drainage sumps, which guide rail auto-coupling pedestal connects this large discharge pump to wet well risers?
Wastewater station vaults anchor SLV/80/100/110/2/50B/C on a heavy auto-coupling base that supports the entire discharge interface.
