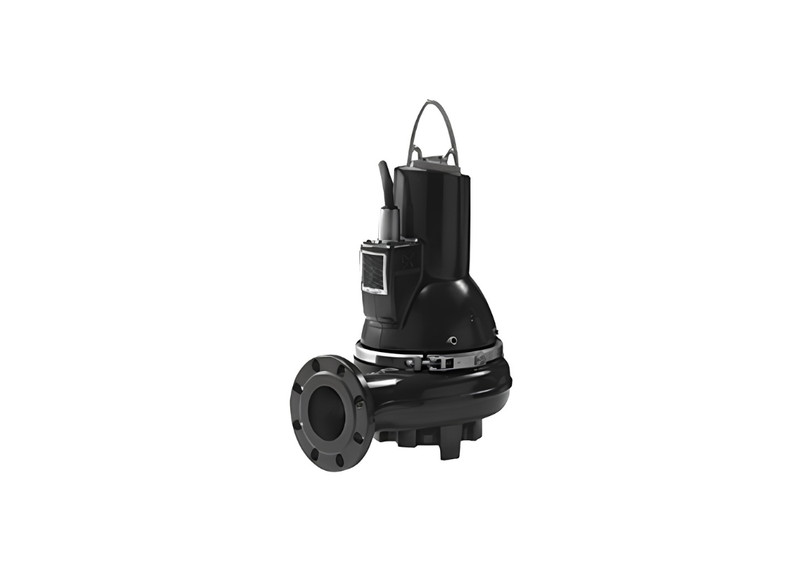

Grundfos SLV.80.100.13.4.50B.C Cast Iron 4-Pole Submersible Pump for Process Water with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Detailing superior internal chamber dynamics and kinetic fluid stability, the SLV.80.100.13.4.50B.C acts as a remarkably advanced non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The internal mechanical configurations meticulously sustain aggressive submerged workloads across demanding municipal infrastructure.
Volatile process liquids are manipulated with absolute precision via a calculated expanding port design. Aggressive unscreened materials aggressively enter through an 80 millimeter suction flange and seamlessly exit via a larger 100 millimeter discharge connection, an engineering strategy that severely cuts destructive internal flow resistance during extended runtime cycles.
Establishing dominant torque output to manipulate dense fluid profiles, the central core integrates an unyielding 3-phase 415v electrical framework accommodating a 1.3 kW power input. The motor safely processes electricity at precisely 3.8 Amps to actively secure monumental fluid displacement, effortlessly generating an approximate maximum flow volume of 1098 L/Min constantly.
Completely focused on critical environmental protection containment, the meticulously balanced mechanism successfully propels incredibly thick suspended debris against an approximate maximum head measuring 9.2 meters. The surrounding reinforced architectural framework is systematically protected by independent thermal arrays ensuring localized heat conditions remain securely bounded.
Features
- Driven by an optimized SuperVortex impeller capable of passing highly destructive solid materials up to 80 millimeters.
- Employs a specialized stainless-steel clamp assembling system to expedite motor detachment without requiring custom hand tools.
- Defended by an industrial-grade silicon carbide primary shaft sealing ring (SIC/SIC) to block liquid from the motor shaft perfectly.
- Equipped with high-precision moisture sensors built directly into the housing architecture for active structural diagnostic feedback.
- Certified with an industrial IP68 waterproof enclosure class ensuring total isolation during intense continuous submerged duty.
- Designed to operate at 1460 rpm, dramatically lowering excessive component strain and significantly prolonging the machine lifecycle.
- Features an extended 10 meter 07RN8-F submersible grade electrical cable to connect safely inside deep containment tanks.
SPECIFICATIONS
| Max Flow | 1098 L/Min |
| Max Head | 9.2 m |
| Power | 1.3 kW / 415v |
| Rated Current | 3.8 Amps |
| Suitable For | Fibrous Municipal Wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Measuring station outflow capacity, what maximum volumetric rate does this unit support?
Operating under severe inflow spikes, Grundfos SLV.80.100.13.4.50B.C evacuates wastewater at 1098 L/Min.
For uphill municipal force mains, what maximum vertical lift is provided?
High-pressure drainage runs benefit from SLV.80.100.13.4.50B.C, which achieves an elevation of 9.2 m.
In submerged wastewater applications, which electrical parameters, operating voltage parameters, and operational amperage run this assembly?
Motor operational parameters for SLV-80-100-13-4-50B-C feature a 1.3 kW output drawing 3.8 Amps on a three-phase 415 V connection.
Routing stringy effluent, how does the recessed vortex design sweep fibrous contaminants cleanly into discharge headers?
Hydrodynamic vortex action in SLV 80 100 13 4 50B C moves solids up to 80 mm in diameter through its recessed SuperVortex runner.
Providing leak-tight wet pit mating, which mounting system provides automatic sealing against station wet well discharge elbows?
The stationary auto-coupling discharge pedestal receives SLV/80/100/13/4/50B/C along guide rails, forming a secure metal-to-metal hydraulic seal.
