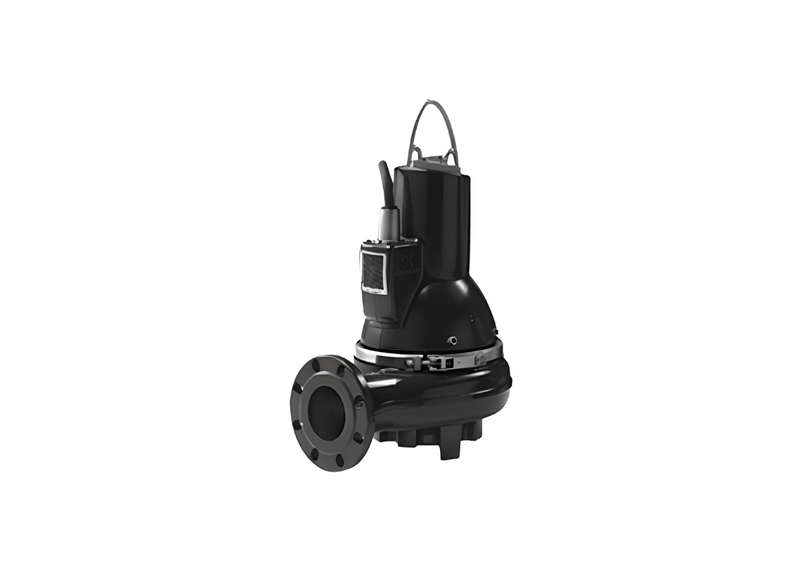

Grundfos SLV.80.100.22.4.50B.C Cast Iron 4-Pole Submersible Pump for Wastewater with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Rising to conquer brutal continuous fluid burdens within immense municipal layouts, the SLV.80.100.22.4.50B.C performs exceptionally as an ultra-durable non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The physical assembly tackles continuous operational tension with total structural confidence.
Fully optimizing internal mechanical pathways to evade destructive clogging, the dimensional cast iron housing leverages a widely expanded discharge configuration. Highly viscous untreated sludge travels forcefully into an 80 millimeter flanged suction port and accelerates rapidly outward via a heavy 100 millimeter outlet flange, thereby dramatically minimizing destructive internal turbulence.
Providing profound kinetic capabilities against extreme submerged environmental forces, the primary core houses a highly refined 3-phase 415v electrical framework responsible for delivering a 2.2 kW power input. The internal mechanism carefully restricts the intense electrical consumption precisely at 5.4 Amps, seamlessly producing an approximate maximum flow capacity of 1332 L/Min.
Completely mitigating the profound physical risks associated with intense depth installations, this powerful piece of machinery easily dominates vertical liquid resistance to establish an approximate maximum head of 12.6 meters. Complete with dedicated internal thermal protection systems, the motor assembly actively neutralizes devastating core heat buildup across its extensive lifetime.
Features
- Fitted with an advanced SuperVortex impeller to cleanly process concentrated long fibres and solid materials up to 80 millimeters.
- Integrates a quick-release stainless-steel clamp assembling system allowing instant separation of the motor and heavy cast pump head.
- Protected by a highly resilient silicon carbide mechanical shaft seal (SIC/SIC) heavily shielding the core rotational drive components.
- Includes dedicated internal moisture sensor arrays for highly accurate early-warning monitoring of extreme submerged structural conditions.
- Constructed to rigorous industrial IP68 waterproof enclosure specifications while strictly maintaining an H class thermal rating profile.
- Designed with a 1462 rpm rated speed motor architecture that continuously maximizes long-term reliability and physical handling capacity.
- Secured exclusively with a heavily sheathed 10 meter 07RN8-F electrical cable structured to survive brutal long-term liquid exposures.
SPECIFICATIONS
| Max Flow | 1332 L/Min |
| Max Head | 12.6 m |
| Power | 2.2 kW / 415v |
| Rated Current | 5.4 Amps |
| Suitable For | Thick Sludge |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
In terms of fluid evacuation speed, what liters per minute does this unit displace?
Throughput performance reaches an operational maximum of 1332 L/Min when deploying Grundfos SLV.80.100.22.4.50B.C.
Which maximum pressure column can this submersible sewage unit overcome?
Gravity main connections rely on SLV.80.100.22.4.50B.C to maintain a delivery head of 12.6 m.
Operating in deep subsurface pits, which electrical specifications, operational line voltage, and full-load amperage drive this unit?
Station electrical panels connect to SLV-80-100-22-4-50B-C via a three-phase 415 V feed to run a 2.2 kW motor at 5.4 Amps.
Minimizing mechanical contact, how does the recessed vortex runner reduce particulate contact while moving heavy effluent?
Unscreened wastewater passes through SLV 80 100 22 4 50B C with zero impeller entanglement, thanks to a 80 mm clearance in the SuperVortex design.
Guiding the pump into place, which auto-coupling arrangement facilitates secure submerged docking on heavy guide rail pipes?
Firm pit stabilization is achieved when SLV/80/100/22/4/50B/C docks onto its dedicated guide rail auto-coupling foot.
