SKU: 98625946

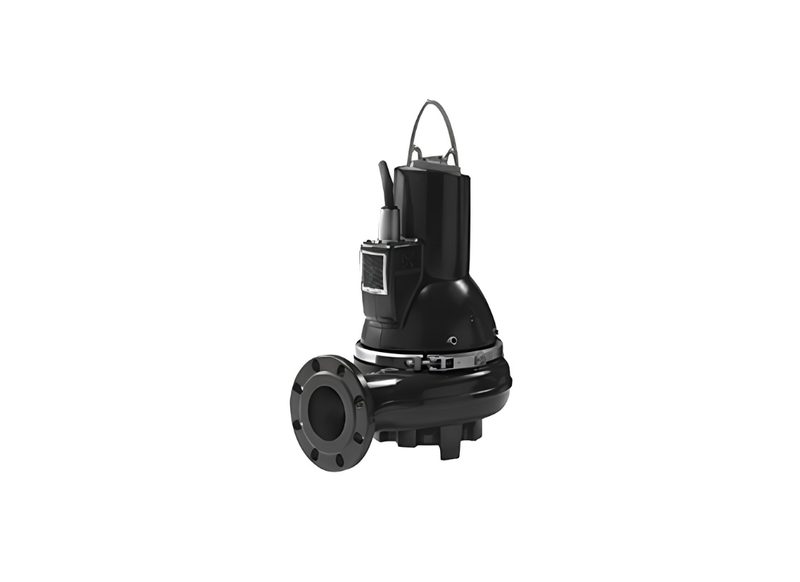

Grundfos SLV.80.100.40.2.50B.C Cast Iron 2-Pole Submersible Pump for Unscreened Sewage with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Confronting severe continuous fluid burdens, the SLV.80.100.40.2.50B.C 100 mm outlet operates as an unyielding non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. It tackles constant operational tension across deep subterranean networks with absolute structural confidence.
Detailing optimized mechanical pathways, the unit channels volatile liquids into an 80 millimeter suction connection and outwards via an expanded 100 millimeter discharge flange. This calculated geometry cuts destructive flow resistance while averting catastrophic material clogging during continuous runtime.
Operating submerged requires a balanced 3-phase 415v electrical framework to safely harness a 4 kW power input. The internal drive restricts consumption precisely at 8.2 Amps, efficiently translating active kinetic torque to reliably establish an approximate maximum flow volume of 1332 L/Min.
Systematically conquering heavy vertical liquid resistance during complex municipal deployments, this machine forces dense materials against an approximate maximum head of 23.3 meters. The integrated PTC thermal protection matrix ensures the motor avoids destructive heat buildup, extending its service life entirely.
Features
- Fitted with an advanced SuperVortex impeller to cleanly process concentrated long fibres and solid materials up to 80 millimeters.
- Integrates a quick-release stainless-steel clamp assembling system allowing instant separation of the motor and heavy cast pump head.
- Protected by a highly resilient silicon carbide mechanical shaft seal (SIC/SIC) heavily shielding the core rotational drive components.
- Constructed to rigorous industrial IP68 waterproof enclosure specifications while strictly maintaining an H class thermal rating profile.
- Designed with an ultra-high 2930 rpm rated speed motor architecture that continuously maximizes physical handling capacity over time.
- Secured exclusively with a heavily sheathed 10 meter LYNIFLEX electrical cable structured to survive brutal long-term liquid exposures.
SPECIFICATIONS
| Max Flow | 1332 L/Min |
| Max Head | 23.3 m |
| Power | 4 kW / 415v |
| Rated Current | 8.2 Amps |
| Suitable For | Long-Distance Raw Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
At peak collection vault capacity, what volumetric throughput does this unit evacuate?
Subterranean pump chambers rely on Grundfos SLV.80.100.40.2.50B.C to sustain a discharge volume of 1332 L/Min.
Under full static head conditions, what vertical elevation does this pump sustain?
Vertical hydraulic force enables SLV.80.100.40.2.50B.C to attain a maximum elevation of 23.3 m.
Across three-phase pumping vaults, what electrical power consumption, operating voltage feed, and running current power this pump?
Driving the rotating assembly, SLV-80-100-40-2-50B-C includes a 4 kW motor running on a three-phase 415 V supply drawing 8.2 Amps.
Beneath regional pump stations, what free passage diameter accommodates untreated sewage solids across this vortex assembly?
Particulate obstruction is avoided in SLV 80 100 40 2 50B C by maintaining a 80 mm spherical clearance inside its SuperVortex housing.
For heavy-duty municipal terminals, what guide rail auto-coupling base allows rapid hoist extraction in municipal stations?
Collection wet wells connect to SLV/80/100/40/2/50B/C through standard auto-coupling pedestals that match municipal riser sizes.
