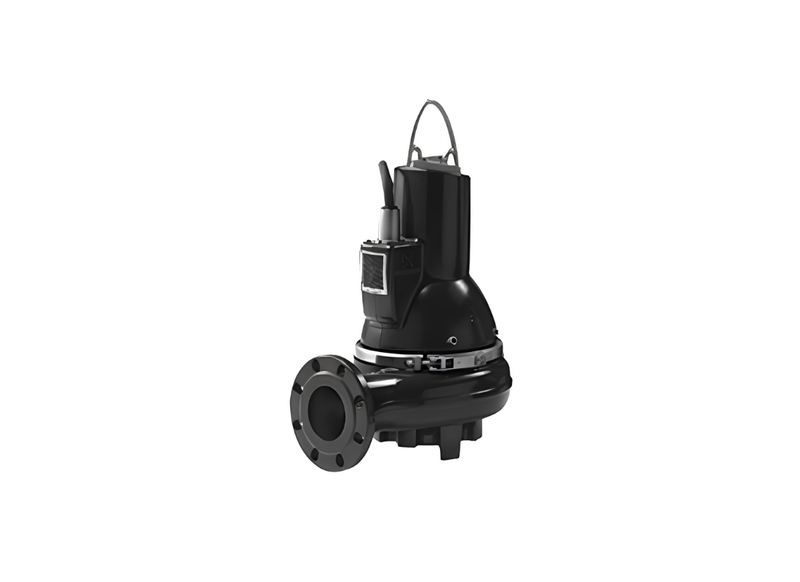

Grundfos SLV.80.100.40.4.50B.C Cast Iron 4-Pole Submersible Pump for Wastewater Handling with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Cast from highly resilient materials, the SLV.80.100.40.4.50B.C 100 mm outlet utilizes a thick iron architecture. Explicitly built as a rugged non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage, this specific mechanism flawlessly tackles brutal external conditions inside deep commercial drainage environments.
The internal dimensional layout is completely optimized to facilitate massive transfers. Thick liquids are drawn forcefully into an 80 millimeter suction flange and smoothly ejected out of a 100 millimeter discharge port, actively mitigating the severe risks of structural clogs and catastrophic pipeline bottlenecks over constant extended pumping applications.
Executing heavy torque under tension requires a premium 3-phase 415v electrical framework. Carefully regulating a 4 kW power input while drawing exactly 9.6 Amps, the internal motor drive forcefully generates an approximate maximum flow output measuring precisely 1500 L/Min to service intensive continuous municipal infrastructure reliably.
Guaranteeing unyielding fluid stability across subterranean deployments, the balanced structure forces heavy debris vertically to conquer an approximate maximum head of 16.7 meters. Using embedded PTC thermal switches continuously surveying the core winding matrix, the apparatus entirely evades destructive internal temperature spikes.
Features
- Engineered around a high-capacity SuperVortex impeller to safely allow unhindered passage of raw debris and solids up to 80 millimeters.
- Uses an exclusive stainless-steel clamp assembling system ensuring absolutely fast and effortless pump housing separation for service.
- Utilizes a high-grade dual silicon carbide primary shaft seal configuration (SIC/SIC) to comprehensively eliminate internal chamber leaks.
- Provides top-tier ingress defense through an industrial IP68 enclosure class rating accompanied by an H level thermal insulation class.
- Calibrated to spin steadily at 1464 rpm, effectively balancing intense raw flow processing capacity with long-term mechanical longevity.
- Fitted securely with an extended 10 meter LYNIFLEX electrical cable explicitly engineered for challenging deep water chemical immersions.
SPECIFICATIONS
| Max Flow | 1500 L/Min |
| Max Head | 16.7 m |
| Power | 4 kW / 415v |
| Rated Current | 9.6 Amps |
| Suitable For | Heavy Untreated Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which maximum outflow rating applies to this submersible drainage assembly per minute?
Fluid velocity through station headers reaches a peak of 1500 L/Min with Grundfos SLV.80.100.40.4.50B.C.
How does the maximum head rating support steep discharge elevation profiles?
Deep vault pumping sees SLV.80.100.40.4.50B.C generate an operational vertical lift of 16.7 m.
To support hydraulic performance, which motor kilowatt rating, line voltage connection, and full-load amperage support this motor?
Subsurface electrical connections power SLV-80-100-40-4-50B-C with a 4 kW drive operating at 9.6 Amps on a three-phase 415 V line.
Moving abrasive wastewater, how does the vortex casing geometry facilitate the passage of abrasive solids without blockage?
An open fluid corridor in SLV 80 100 40 4 50B C accommodates solids up to 80 mm through its precision-engineered SuperVortex runner.
Connecting to high-volume mains, which mounting base connects this high-volume submersible pump to permanent discharge risers?
Servicing efficiency is enhanced because SLV/80/100/40/4/50B/C lifts clear of its guide rail auto-coupling pedestal in seconds.
