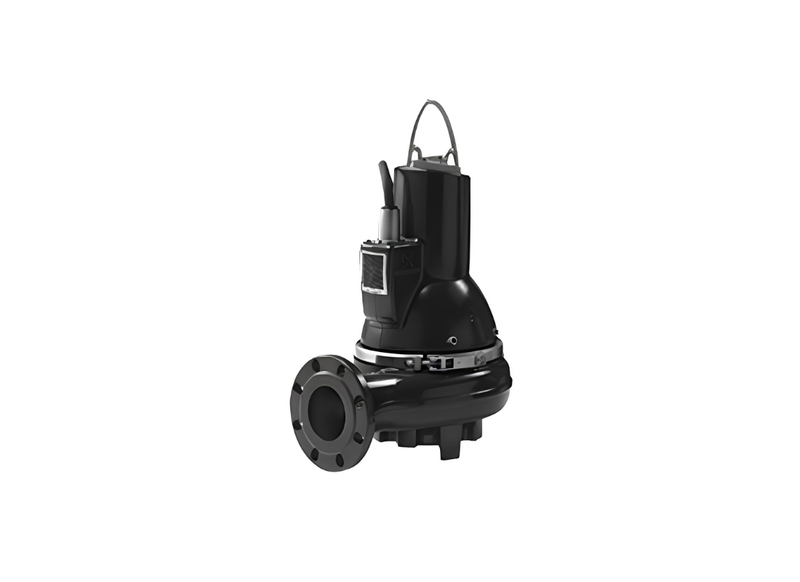

Grundfos SLV.80.100.60.2.50B.C Cast Iron 2-Pole Submersible Pump for Raw Sewage Transfer with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Detailing superior kinetic fluid stability, the SLV.80.100.60.2.50B.C relies on a meticulously engineered 100 mm outlet configuration to dominate intense conditions. This advanced assembly confidently sustains aggressive subterranean workloads across demanding municipal drainage infrastructure without experiencing debilitating rotational stress.
Volatile liquids are processed with precision via an expanding port design optimized for absolute momentum. Materials enter through an 80 millimeter suction connection and expand outward via the 100 millimeter discharge flange, a strategy that drastically cuts internal friction during continuous extended duty cycles.
Establishing dominant torque to manipulate dense profiles requires an unyielding matrix. The core firmly integrates a 3-phase 415v electrical framework to carefully harness a 6 kW power input. Safely processing electricity at 12.3 Amps, the motor secures immense displacement, establishing an approximate maximum flow of 1602 L/Min smoothly.
Focused intently on critical hardware containment, the precisely balanced mechanical structure effortlessly propels thick raw debris against an approximate maximum head of 26.1 meters. The internal motor foundation is systematically protected by integrated PTC thermal arrays, strictly ensuring localized temperatures remain perfectly bounded indefinitely.
Features
- Driven by a meticulously optimized SuperVortex impeller strictly capable of passing highly destructive solid materials up to 80 millimeters.
- Employs a specialized stainless-steel clamp assembling system to strongly expedite deep motor detachment without requiring custom hand tools.
- Defended by an industrial-grade silicon carbide primary shaft sealing ring (SIC/SIC) to entirely isolate raw liquid from the core motor shaft.
- Certified exclusively with an industrial IP68 waterproof enclosure class ensuring total component isolation during intense continuous submerged duty.
- Designed to operate at an intensive 2940 rpm rotational speed, dramatically maximizing raw physical liquid handling capacity over long deployments.
- Features a flexible 10 meter LYNIFLEX submersible grade electrical cable engineered to survive constant harsh chemical exposures safely inside deep tanks.
SPECIFICATIONS
| Max Flow | 1602 L/Min |
| Max Head | 26.1 m |
| Power | 6 kW / 415v |
| Rated Current | 12.3 Amps |
| Suitable For | Industrial Process Water |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 100 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How much fluid volume can this heavy submersible unit discharge under peak loading?
Evacuating contaminated effluent, Grundfos SLV.80.100.60.2.50B.C delivers an operational throughput of 1602 L/Min.
What total dynamic head is achieved when operating at peak pressure rating?
Municipal sewer headers receive effluent elevated to a maximum of 26.1 m by SLV.80.100.60.2.50B.C.
Serving municipal collection sumps, what are the motor output rating, line voltage feed, and operational current draw for this pump?
Rotational torque in SLV-80-100-60-2-50B-C reaches 6 kW when connected to a three-phase 415 V power feed at 12.3 Amps.
Inside the recessed chamber, what internal through-let clearance is provided by the recessed runner for suspended debris?
Vortex pumping mechanics in SLV 80 100 60 2 50B C provide an unobstructed 80 mm spherical clearance for municipal waste via the SuperVortex profile.
Minimizing service downtime, what guide rail auto-coupling arrangement simplifies hoist servicing in large municipal wet wells?
Reliable discharge seating is maintained by SLV/80/100/60/2/50B/C, which utilizes gravity to compress the auto-coupling profile.
