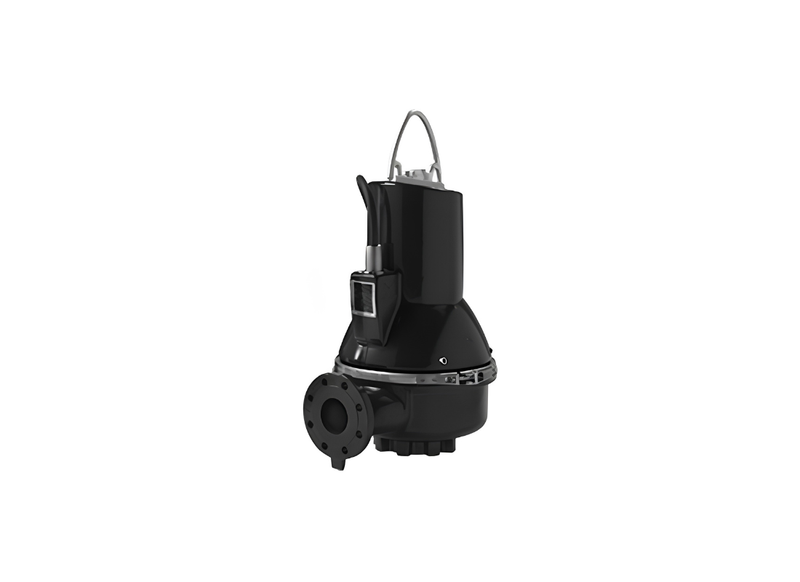

Grundfos SLV.80.80.110.2.50B.C Cast Iron 2-Pole Submersible Pump for Heavy Wastewater with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Establishing absolute authority over intense operational demands within massive commercial wastewater settings, the SLV.80.80.110.2.50B.C operates as an elite non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. It effortlessly endures continuous submerged workloads across deep subterranean municipal networks.
To securely channel incredibly volatile process liquids, the heavy-duty unit relies on a meticulously engineered internal piping layout. Raw materials are aggressively drawn straight from a massive 80 millimeter flanged suction port entirely through to an identical 80 millimeter discharge connection, virtually eliminating destructive internal flow resistance completely.
Operating under extreme environmental tension requires a vastly superior 3-phase 415v electrical framework to accommodate an 11 kW power input. The massive motor actively regulates intense electrical loads at exactly 21.6 Amps, smoothly translating rotational kinetic torque to constantly maintain an approximate maximum flow measuring exactly 1500 L/Min.
Providing unparalleled critical infrastructure defense, this precise mechanism safely propels heavy liquids aggressively upwards to conquer an approximate maximum head of 44.1 meters. The integration of advanced thermal protection mechanisms guarantees the core entirely avoids localized heat buildup, securely preserving the structural hardware limits throughout its service life.
Features
- Fitted with an advanced SuperVortex impeller to process concentrated long fibres and solid materials up to 80 millimeters.
- Integrates a quick-release stainless-steel clamp assembling system allowing instant separation of the motor and heavy pump head.
- Protected by a highly resilient silicon carbide mechanical shaft seal (SIC/SIC) heavily shielding the core rotational components.
- Constructed to rigorous industrial IP68 waterproof enclosure specifications while strictly maintaining an H class thermal rating.
- Designed with an ultra-high 2947 rpm rated speed motor architecture that maximizes long-term reliability and physical capacity.
- Secured exclusively with a heavily sheathed 10 meter LYNIFLEX electrical cable structured to survive brutal long-term exposures.
SPECIFICATIONS
| Max Flow | 1500 L/Min |
| Max Head | 44.1 m |
| Power | 11 kW / 415v |
| Rated Current | 21.6 Amps |
| Suitable For | Max-Lift Raw Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this submersible sewage pump perform under peak volumetric inflow conditions?
Maximum hydraulic output peaks at a volumetric flow of 1500 L/Min for Grundfos SLV.80.80.110.2.50B.C.
Can this submerged drainage unit elevate effluent to elevated treatment plant manifolds?
Municipal collection wells operate with SLV.80.80.110.2.50B.C delivering a dynamic lift of 44.1 m.
Connecting to three-phase supply lines, which electrical specifications, supply line rating, and running current power this submerged motor?
The power assembly for SLV-80-80-110-2-50B-C consists of a 11 kW motor operating from a three-phase 415 V line drawing 21.6 Amps.
Preventing particulate jamming, how does the vortex hydraulic profile prevent particulate lodging in subterranean lift pits?
Untreated effluent solids clear without resistance in SLV 80 80 110 2 50B C via a dedicated 80 mm corridor in the SuperVortex volute.
Supporting deep-pit retrieval, which guide rail auto-coupling pedestal connects this large municipal pump to wet well risers?
Submerged municipal wells support SLV/80/80/110/2/50B/C with dual guide rails that guide the unit directly into its auto-coupling socket.
