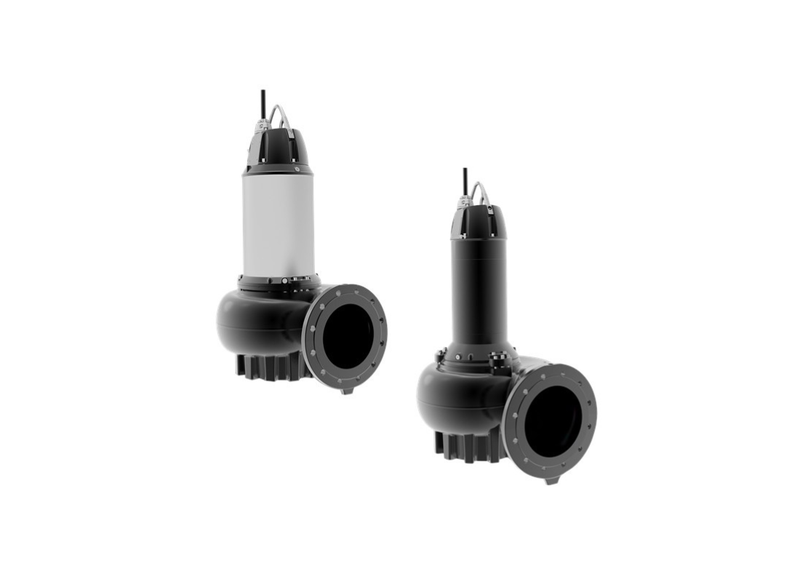

Grundfos SLV.80.80.150.2.52H.N.51D.A.T Cast Iron 2-Pole Wastewater Pump for Flats with Super Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Constructed around a durable cast iron chassis, the SLV 80 80 150 2 52H N 51D A T submersible pump is engineered specifically for demanding architectural environments. Its robust 80 mm outlet allows it to pass heavy debris, establishing this 15 kW platform as a critical component in municipal sewage management infrastructure.
Hydraulic demands in underground car parks require rapid evacuation, which this unit answers with a maximum flow of approximately 2400 L/Min. Powered through a dedicated three-phase 415v connection, its internal SuperVortex impeller generates immense force, allowing the machine to deliver a peak head of 45 m under load.
An expansive 100 mm inlet diameter acts as the primary fluid pathway, smoothly ingesting raw slurry without choking internal clearances. To protect these operational components, sensitive moisture sensors reside inside the main enclosure to track real-time liquid ingress, protecting against stator electrical failure.
Minimizing manual facility downtime is a primary objective achieved through a dual cartridge double shaft seal, which operators can swap rapidly. An innovative cable entry connector further enhances this modular approach, making this advanced mechanical assembly easy to maintain even deep within flooded subterranean basins.
Features
- Manufactured utilizing EN 1561 EN-GJL-250 grade cast iron for enhanced structural cavity rigidity
- Equipped with an EN 1563 EN-GJS-500-7 cast iron impeller capable of handling dense solid municipal waste
- Optimized for deep operational immersion with an officially rated maximum installation depth of 20 m
- Powered by a high-efficiency motor carrying Class H insulation paired with an IP68 enclosure rating
- Incorporates a highly resilient primary mechanical shaft seal forged from tough silicon carbide
- Fitted with an industrial S1BN8-F flexible power cable extending 15 m to simplify remote electrical hookups
- Compatible with DN 100 inlet and DN 80 outlet connections with PN 10 pressure rating
- Approved to CE, EAC, RCM standards with 8 bar maximum operating pressure
- Liquid temperature range: 10-40°C with net weight of 265 kg
SPECIFICATIONS
| Max Flow | 2400 L/Min |
| Max Head | 45 m |
| Power | 15 kW / 415v |
| Rated Current | 29 Amps |
| Suitable For | Municipal Pumping |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across municipal sewer junctions, what maximum fluid displacement volume is delivered per minute?
Operating under heavy inflow demand, Grundfos SLV.80.80.150.2.52H.N.51D.A.T sustains a volumetric displacement reaching 2400 L/Min.
Within regional effluent transmission lines, what peak dynamic lift does this submerged unit develop?
Across demanding drainage routes, SLV.80.80.150.2.52H.N.51D.A.T delivers a maximum vertical discharge elevation of 45 m.
Which electrical drive parameters, supply voltage connection, and operational current run this motor?
Supporting this pump assembly, SLV-80-80-150-2-52H-N-51D-A-T incorporates a 15 kW motor designed for a three-phase 415 V feed at 29 Amps.
How does the recessed vortex runner profile maintain clear fluid transit across municipal wet wells?
Hydrodynamic volute geometry in SLV 80 80 150 2 52H N 51D A T provides an unobstructed path for solids up to 80 mm in diameter.
What mounting pedestal configuration supports guide rail installation in collection chambers?
Discharge risers connect cleanly to SLV/80/80/150/2/52H/N/51D/A/T through a dedicated guide rail auto-coupling pedestal that supports rapid hoist extraction.
