SKU: 99774687

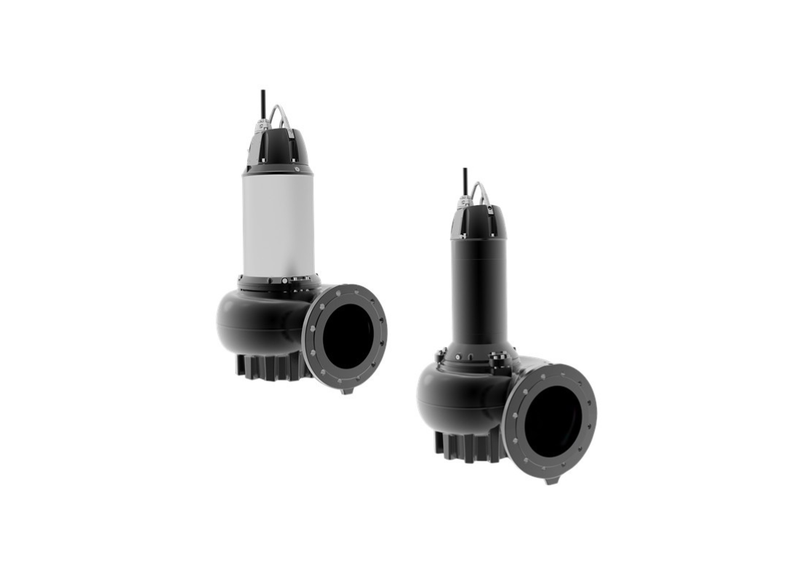

Grundfos SLV.80.80.170.2.52H.N.51D.A.T Cast Iron 2-Pole Sewage Pump for Buildings with Super Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Optimizing fluid flow requires hydraulic stability, a defining characteristic of the SLV 80 80 170 2 52H N 51D A T submersible pump. Equipped with an expansive 80 mm outlet and powered by a 17 kW driver, this advanced municipal machine maintains steady internal pressure to support wastewater network flow.
At the center of its dynamic pumping core is a specialized SuperVortex impeller, driven through a three-phase 415v power topology. This configuration yields a maximum flow limit of approximately 2586 L/Min. Furthermore, it reaches a maximum head of 49 m, ensuring consistent lift capability across deep subterranean grids.
The external pump body consists entirely of premium cast iron, matched seamlessly with a broad 100 mm inlet diameter to ingest thick biological sludge. To prevent sudden internal failures, highly calibrated moisture sensors monitor the inner casing, shutting down operation upon detecting fluid intrusion.
Engineered for minimal operational interruptions, the assembly features a rapid-release double shaft seal enclosed inside a distinct cartridge structure. Paired with an innovative cable entry connector, technicians can conduct thorough maintenance directly in the field, granting longevity to this industrial platform.
Features
- Enclosed in a formidable EN 1561 EN-GJL-250 cast iron exterior specifically formulated for harsh liquids
- Contains an EN 1563 EN-GJS-500-7 grade cast iron impeller designed to process large suspended particulate
- Rated explicitly for a maximum installation depth of 20 m across commercial and industrial holding tanks
- Engineered with strict Class H motor winding insulation complemented by a total IP68 submersion rating
- Operates with a purely silicon carbide mechanical shaft seal to drastically mitigate internal wearing friction
- Supplied standard with a robust 15 m S1BN8-F power cable to safely bridge long electrical junction gaps
- Compatible with DN 100 inlet and DN 80 outlet connections with PN 10 pressure rating
- Approved to CE, EAC, RCM standards with 8 bar maximum operating pressure
- Liquid temperature range: 10-40°C with net weight of 272 kg
SPECIFICATIONS
| Max Flow | 2586 L/Min |
| Max Head | 49 m |
| Power | 17 kW / 415v |
| Rated Current | 33 Amps |
| Suitable For | Industrial Applications |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
For high-volume wastewater collection chambers, what peak volumetric throughput is maintained?
Municipal collection wet wells utilize Grundfos SLV.80.80.170.2.52H.N.51D.A.T to displace wastewater at a peak rate of 2586 L/Min.
Across low-lying catchment basins, what maximum discharge head does this heavy pump attain?
Deep collection wet wells operate with SLV.80.80.170.2.52H.N.51D.A.T attaining a maximum hydraulic lift of 49 m.
What are the electrical specifications, line voltage feed, and full-load amperage of this submerged pump?
Submerged electrical specs for SLV-80-80-170-2-52H-N-51D-A-T feature a 17 kW motor connected to a three-phase 415 V feed drawing 33 Amps.
What free internal passage clearance accommodates raw sewage across this vortex impeller?
Large wastewater solids traverse SLV 80 80 170 2 52H N 51D A T freely thanks to an expansive 80 mm spherical through-let designed into the SuperVortex channel.
Which auto-coupling component connects this pump unit firmly to permanent sump risers?
Routine servicing is simplified with SLV/80/80/170/2/52H/N/51D/A/T, which docks onto guide rail auto-coupling bases for rapid hoist extraction.
