Roll over image to zoom
SKU: 99774707

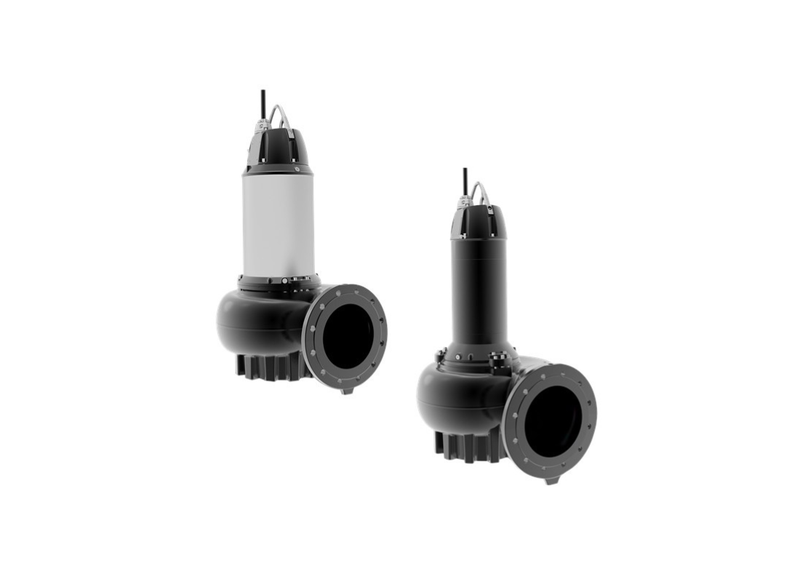

Grundfos SLV.80.80.185.2.52H.N.51D.A.T Cast Iron 2-Pole Wastewater Pump for Hotels with Super Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Scaling long-term operational efficiency and maximizing safety protection containment are fundamental to the SLV 80 80 185 2 52H N 51D A T submersible pump. By utilizing an 18.5 kW motor framework alongside an optimized 80 mm outlet, this industrial unit supports lifecycle energy cost management while processing raw sewage.
Receiving its power through a balanced three-phase 415v connection, the system generates a maximum flow of approximately 2700 L/Min. This throughput is guided by a rugged SuperVortex impeller, enabling the pump to reach a maximum head of 53 m across heavily loaded subterranean pipes.
The primary volute and exterior housing are cast from solid iron, paired with a massive 100 mm inlet to maintain smooth fluid intake. As a protective measure, specialized moisture sensors stand guard within the casing, responding to liquid ingress and shielding the electrical windings inside.
Long-term mechanical maintenance is streamlined thanks to a double shaft seal arranged inside a swappable cartridge. Combined with an accessible top-mounted cable entry connector, maintenance crews can execute necessary component isolations without dismantling the complete unit.
Features
- Forged from extremely rigid EN 1561 EN-GJL-250 cast iron to actively resist corrosive municipal water
- Equipped with a specialized EN 1563 EN-GJS-500-7 cast iron impeller for unhindered biological passage
- Permits a generous maximum installation depth of 20 m directly into heavily flooded commercial catchments
- Secured by an elite IP68 enclosure class rating that works cohesively with an integrated Class H stator
- Relies on a tough silicon carbide primary shaft seal configuration to greatly minimize kinetic degradation
- Delivered safely with a rugged 15 m S1BN8-F power cord to support heavily isolated control panel layouts
- Compatible with DN 100 inlet and DN 80 outlet connections with PN 10 pressure rating
- Approved to CE, EAC, RCM standards with 8 bar maximum operating pressure
- Liquid temperature range: 10-40°C with net weight of 272 kg
SPECIFICATIONS
| Max Flow | 2700 L/Min |
| Max Head | 53 m |
| Power | 18.5 kW / 415v |
| Rated Current | 36 Amps |
| Suitable For | Public Buildings |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Within deep subterranean drainage pits, what maximum volumetric rate is evacuated per minute?
Across heavy municipal pumping cycles, Grundfos SLV.80.80.185.2.52H.N.51D.A.T evacuates wastewater at a peak rate of 2700 L/Min.
In metropolitan flood control reservoirs, what peak dynamic elevation does this pump achieve?
Subterranean collection chambers deploy SLV.80.80.185.2.52H.N.51D.A.T to sustain an operational vertical fluid lift of 53 m.
Which motor output rating, operational line voltage, and running current support this pump?
Configured for utility supplies, SLV-80-80-185-2-52H-N-51D-A-T incorporates a 18.5 kW motor that operates on a three-phase 415 V line drawing 36 Amps.
What spherical through-let clearance allows large solids to move through this vortex volute?
Particulate obstruction is prevented by SLV 80 80 185 2 52H N 51D A T through an internal SuperVortex passage clearance measuring 80 mm in diameter.
What guide rail auto-coupling system facilitates rapid hoist removal during maintenance routines?
Guide rail installation in collection wet wells is facilitated by SLV/80/80/185/2/52H/N/51D/A/T connecting smoothly to automatic coupling brackets.
