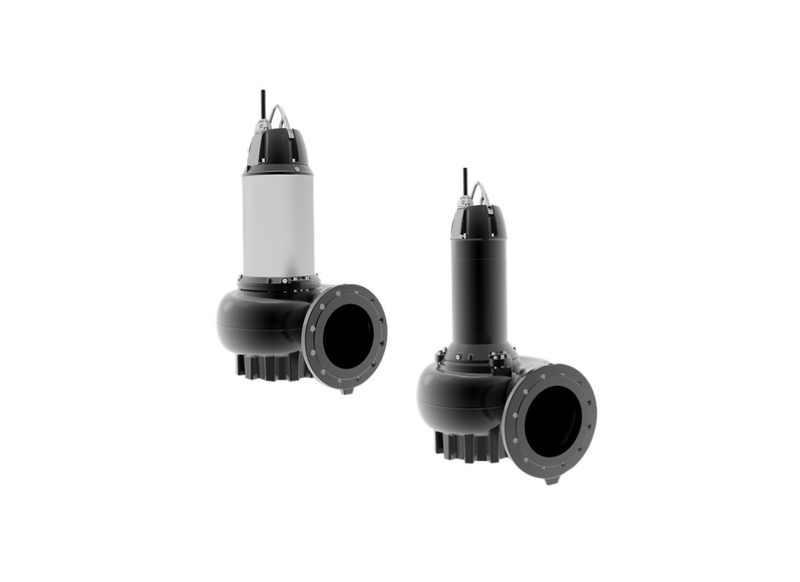

Grundfos SLV.80.80.200.2.52H.N.51D.A.T Cast Iron 2-Pole Sewage Pump for Wash Areas with Super Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Addressing large influxes of dense municipal slurry presents an operational challenge that the SLV 80 80 200 2 52H N 51D A T submersible pump handles with precision. Incorporating a robust 80 mm outlet designed for continuous transit, this 20 kW platform reduces the risk of blockages across wastewater treatment networks.
Operating via a three-phase 415v framework, the assembly generates a maximum flow of approximately 2814 L/Min. Generating a maximum head of 56 m, the internal SuperVortex impeller drives thick sludge upward from sub-surface basins into primary sanitation infrastructure, maintaining consistent operation.
Complete structural integrity is maintained by a robust exterior casing manufactured from cast iron. A precisely engineered 100 mm inlet diameter allows the system to ingest suspended particulates. To monitor the electrical environment, sensitive moisture sensors scan the primary cavity.
Unplanned facility downtime is reduced by the integration of a double shaft seal housed inside a swappable mechanical cartridge. Working alongside an accessible top-mounted cable entry connector, this modular approach allows maintenance teams to conduct isolations in the field.
Features
- Constructed utilizing EN 1561 EN-GJL-250 cast iron for the primary pump housing and internal motor enclosure
- Incorporates an EN 1563 EN-GJS-500-7 cast iron impeller engineered for continuous heavy sewage management
- Rated explicitly for a maximum installation depth of 20 m across commercial and industrial holding tanks
- Engineered with strict Class H motor winding insulation complemented by a total IP68 submersion rating
- Operates with a purely silicon carbide mechanical shaft seal to drastically mitigate internal wearing friction
- Supplied standard with a robust 15 m S1BN8-F power cable to safely bridge long electrical junction gaps
- Compatible with DN 100 inlet and DN 80 outlet connections with PN 10 pressure rating
- Approved to CE, EAC, RCM standards with 8 bar maximum operating pressure
- Liquid temperature range: 10-40°C with net weight of 278 kg
SPECIFICATIONS
| Max Flow | 2814 L/Min |
| Max Head | 56 m |
| Power | 20 kW / 415v |
| Rated Current | 37 Amps |
| Suitable For | Wastewater Treatment |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across heavy municipal collection stations, what peak fluid throughput does this submerged unit achieve?
Displacing fluid through municipal mains, Grundfos SLV.80.80.200.2.52H.N.51D.A.T maintains a maximum discharge throughput of 2814 L/Min.
For high-elevation municipal wastewater conduits, what maximum vertical lift does this assembly deliver?
Municipal sewage lift stations utilize SLV.80.80.200.2.52H.N.51D.A.T to develop a peak delivery head of 56 m.
What motor kilowatt rating, electrical supply feed, and operational amperage power this unit?
The motor in SLV-80-80-200-2-52H-N-51D-A-T produces a power capacity of 20 kW when connected to a three-phase 415 V line at 37 Amps.
How does the recessed vortex channel protect this submersible sewage pump from solids obstruction?
Smooth solids movement is facilitated in SLV 80 80 200 2 52H N 51D A T by its SuperVortex runner, providing a generous 80 mm spherical clearance.
Which guide rail auto-coupling configuration supports secure submerged wet well docking?
Permanent discharge piping interfaces cleanly with SLV/80/80/200/2/52H/N/51D/A/T via a dedicated auto-coupling mounting base for submersible sumps.
