SKU: 99774831

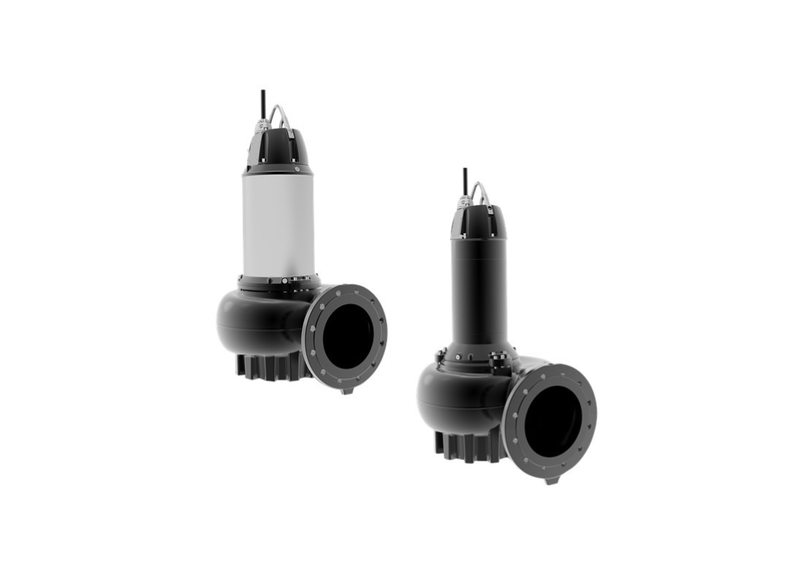

Grundfos SLV.80.80.240.2.52H.N.51D.A.T Cast Iron 2-Pole Sewage Pump for Industry with Super Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Maximizing fluid flow requires hydraulic stability, a characteristic of the SLV 80 80 240 2 52H N 51D A T submersible pump. Equipped with an expansive 80 mm outlet and powered by a 24 kW driver, this advanced municipal machine maintains steady internal pressure to support network flow.
At the center of its pumping core sits a specialized SuperVortex impeller, driven through a three-phase 415v power topology. This configuration yields a maximum flow limit of approximately 3000 L/Min, while reaching a maximum head of 63 m to ensure steady vertical lift across holding tanks.
The external pump body consists of cast iron, matched with a broad 100 mm inlet diameter designed to ingest thick biological slurry. To prevent internal failures, moisture sensors monitor the inner casing, shutting down operation upon detecting fluid intrusion.
Engineered for minimal operational interruptions, the assembly features a rapid-release double shaft seal enclosed inside a mechanical cartridge. Paired with an innovative cable entry connector, technicians can conduct thorough maintenance directly in the field, contributing to longevity of the platform.
Features
- Enclosed in a formidable EN 1561 EN-GJL-250 cast iron exterior specifically formulated for harsh liquids
- Contains an EN 1563 EN-GJS-500-7 grade cast iron impeller designed to process large suspended particulate
- Rated explicitly for a maximum installation depth of 20 m across commercial and industrial holding tanks
- Engineered with strict Class H motor winding insulation complemented by a total IP68 submersion rating
- Operates with a purely silicon carbide mechanical shaft seal to drastically mitigate internal wearing friction
- Supplied standard with a robust 15 m S1BN8-F power cable to safely bridge long electrical junction gaps
- Compatible with DN 100 inlet and DN 80 outlet connections with PN 10 pressure rating
- Approved to CE, EAC, RCM standards with 8 bar maximum operating pressure
- Liquid temperature range: 10-40°C with net weight of 281 kg
SPECIFICATIONS
| Max Flow | 3000 L/Min |
| Max Head | 63 m |
| Power | 24 kW / 415v |
| Rated Current | 49 Amps |
| Suitable For | Industrial Applications |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 100 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Across regional sewage collection sumps, what maximum fluid displacement volume does this submersible unit provide?
Under peak inflow conditions, Grundfos SLV.80.80.240.2.52H.N.51D.A.T delivers a maximum volumetric throughput of 3000 L/Min.
Across steep municipal sewer routes, what maximum hydraulic lift does this heavy submersible pump attain?
Operating in regional wastewater sumps, SLV.80.80.240.2.52H.N.51D.A.T sustains an operational dynamic head of 63 m.
What are the electrical power draw, operating line voltage, and running amperage of this assembly?
The electric drive in SLV-80-80-240-2-52H-N-51D-A-T delivers 24 kW across a three-phase 415 V operational feed, drawing 49 Amps at full load.
How does the vortex hydraulic design facilitate smooth solids movement without clogging the volute?
Internal volute geometry in SLV 80 80 240 2 52H N 51D A T sustains a 80 mm spherical through-let, preventing particulate accumulation in collection sumps.
Which guide rail mounting base facilitates quick hoist extraction during servicing cycles?
Guide rail mounting in collection wells is supported by SLV/80/80/240/2/52H/N/51D/A/T through direct compatibility with standard auto-coupling bases.
