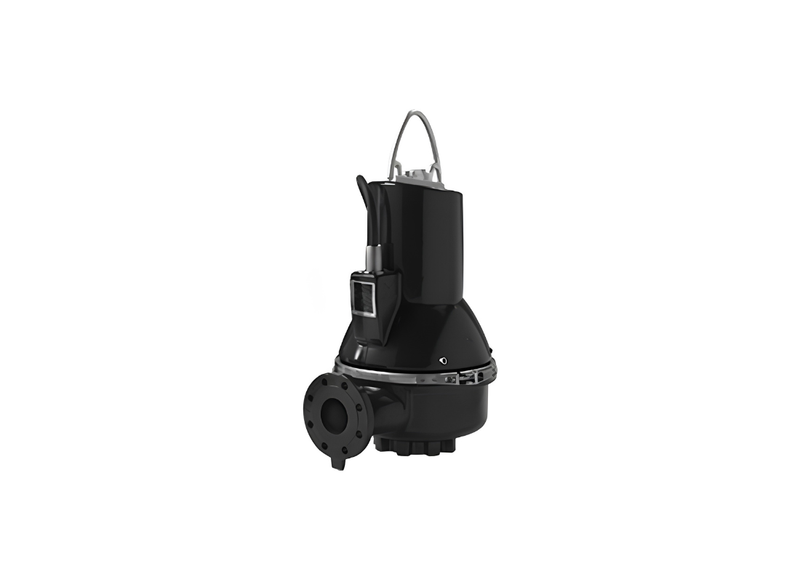

Grundfos SLV.80.80.92.2.50B.C Cast Iron 2-Pole Submersible Pump for Raw Sewage Transfer with SuperVortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Encountering extreme fluid transfer loads in immense commercial wastewater operations demands monumental stability. Rising to the challenge, the SLV.80.80.92.2.50B.C operates as an ultra-durable non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage during continuous applications.
Anchoring the physical framework is a phenomenally thick EN-GJL-250 cast iron exterior containment shell that effectively neutralizes deep vibration signatures. Unscreened waste flows continuously straight into the large 80 millimeter intake connection and completely out of an identically sized 80 millimeter discharge flange without restriction.
To constantly manipulate massive volumes of highly viscous material, the system is empowered by a superior 3-phase 415v electrical infrastructure capable of safely establishing a 9.2 kW power input. The internal mechanism carefully manages intense electrical loads precisely at 18 Amps to establish an approximate maximum flow of 1500 L/Min.
The entire kinetic layout prioritizes paramount environmental safety across treacherous submerged deployments. By forcefully overcoming staggering vertical liquid resistance, the mechanism secures an approximate maximum head measuring 38.1 meters. The accompanying thermal protection matrix flawlessly isolates the core motor winding from overheating.
Features
- Fitted with an advanced SuperVortex impeller to cleanly process concentrated long fibres and solid materials up to 80 millimeters.
- Integrates a quick-release stainless-steel clamp assembling system allowing instant separation of the motor and heavy cast pump head.
- Protected by a highly resilient silicon carbide mechanical shaft seal (SIC/SIC) heavily shielding the core rotational drive components.
- Constructed to rigorous industrial IP68 waterproof enclosure specifications while strictly maintaining an H class thermal rating profile.
- Designed with an ultra-high 2960 rpm rated speed motor architecture that maximizes long-term reliability and physical handling capacity.
- Secured exclusively with a heavily sheathed 10 meter LYNIFLEX electrical cable structured to survive brutal long-term liquid exposures.
SPECIFICATIONS
| Max Flow | 1500 L/Min |
| Max Head | 38.1 m |
| Power | 9.2 kW / 415v |
| Rated Current | 18 Amps |
| Suitable For | High-Head Heavy Raw Sewage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which maximum liters per minute rating governs the output of this wastewater assembly?
Stormwater evacuation rates reach an operational maximum of 1500 L/Min through Grundfos SLV.80.80.92.2.50B.C.
What is the maximum static elevation overcome by this heavy sewage assembly?
Subsurface wastewater transfer sees SLV.80.80.92.2.50B.C maintain a maximum head of 38.1 m.
At maximum rotational torque, what are the motor power output, operational voltage feed, and full-load amperage of this assembly?
Submerged electrical duty in SLV-80-80-92-2-50B-C is performed by a 9.2 kW motor connected to a three-phase 415 V feed at 18 Amps.
Conveying heavy wastewater, what spherical passage clearance allows heavy municipal sewage to traverse this vortex pump?
The recessed SuperVortex runner assembly in SLV 80 80 92 2 50B C establishes an open 80 mm passage that prevents solids from lodging.
In municipal sewage collection pits, what installation bracket supports guide rail alignment in municipal sewage collection pits?
Effortless station maintenance is supported by SLV/80/80/92/2/50B/C docking securely onto standard auto-coupling baseplates.
