SKU: 96023934

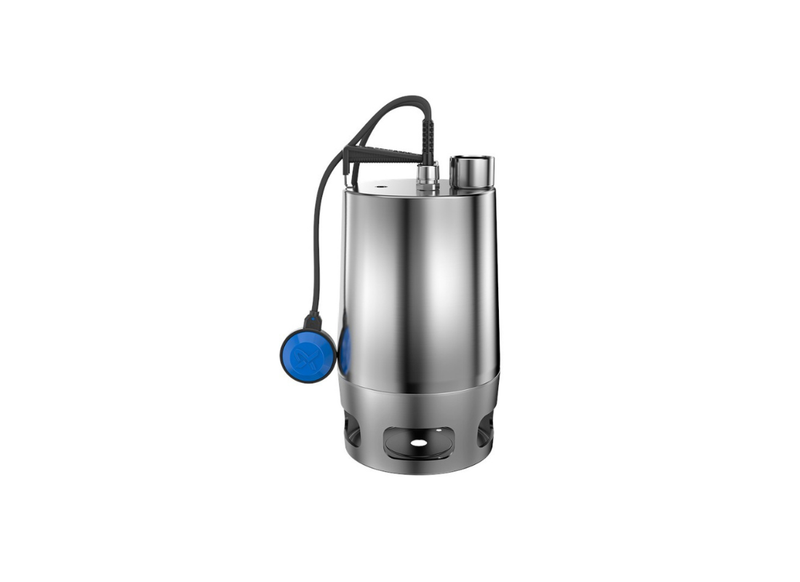

Grundfos UNILIFT AP50.50.08.A1V Stainless Steel Wastewater Pump for Fibrous Liquids with Vortex Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
Utilizing a streamlined fluid path, the UNILIFT AP50.50.08.A1V stainless steel effluent pump handles high displacement in harsh settings. Deployed permanently or portably, it entirely resists blockages. The housing guarantees that untreated wastewater and fibrous liquids are cleared efficiently without structural fatigue.
Extending lifespan during immersion, the platform uses thermal overload protection to actively regulate core temperatures. The enclosed motor utilizes an intermediate oil chamber filled with non-toxic oil to lubricate the shaft seal. A cooling jacket leverages the pumped liquid to cool the stator and maximize bearing longevity.
Stable circulation is driven by a powerful VORTEX impeller, engineered for an expanded 50 mm free passage of large solids. Minimizing hydraulic resistance, it achieves an extreme flow of 416 L/Min and a 9 m maximum head. The single-stage configuration incorporates a vertical discharge port to preserve optimal flow dynamics.
Assuring rapid deployment, the unit includes a 10 m mains cable with a glass sealing compound to prevent humidity penetration. An integrated float switch provides automated functionality by tracking rising liquid thresholds. Shielded by an IP68 enclosure class, this pump guarantees reliability for commercial effluent networks.
Features- Constructed entirely from premium EN 1.4301 AISI 304 stainless steel.
- Designed to effortlessly process maximum solid particles up to 50 mm.
- Operates with a highly efficient 0.99 Cos phi power factor specification.
- Equipped with a robust Brass CW602N C35330 internal cable union.
- Delivers an optimized rated motor speed measuring exactly 2790 rpm.
- Features a built-in contact motor protection system for advanced thermal safety.
SPECIFICATIONS
| Max Flow | 416 L/Min |
| Max Head | 9 m |
| Power | 0.8 kW / 240v |
| Rated Current | 5.9 Amps |
| Suitable For | Light Industry |
| Body Material | 304 Stainless Steel |
| Liquid Temperature | Maximum 55°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Sustaining peak operational movement, what volumetric displacement and total lift are produced?
Field installations show that Grundfos UNILIFT AP50.50.08.A1V is rated for a maximum flow of 416 L/Min and a maximum head of 9 m.
Providing drive rotation, what electrical kilowatt rating and amperage are required?
Rated power metrics show UNILIFT AP50.50.08.A1V requires 0.8 kW / 240v alongside an operational current of 5.9 Amps.
Analyzing fluid thermal limits, what pump body metallurgy and allowable heat ceiling are confirmed?
Formed using durable components, UNILIFT-AP50-50-08-A1V incorporates a 304 Stainless Steel casing rated for temperatures to Maximum 55°C.
Across typical property water systems, what primary fluid transfer roles apply?
Operating in domestic systems, UNILIFT AP50 50 08 A1V addresses stormwater pit drainage, greywater trench evacuation, and suspended soft solids passage.
Reviewing warranty documentation, what factory support length covers this equipment?
Featuring authorized service coverage, UNILIFT/AP50/50/08/A1V provides a 2 Years manufacturer warranty.
