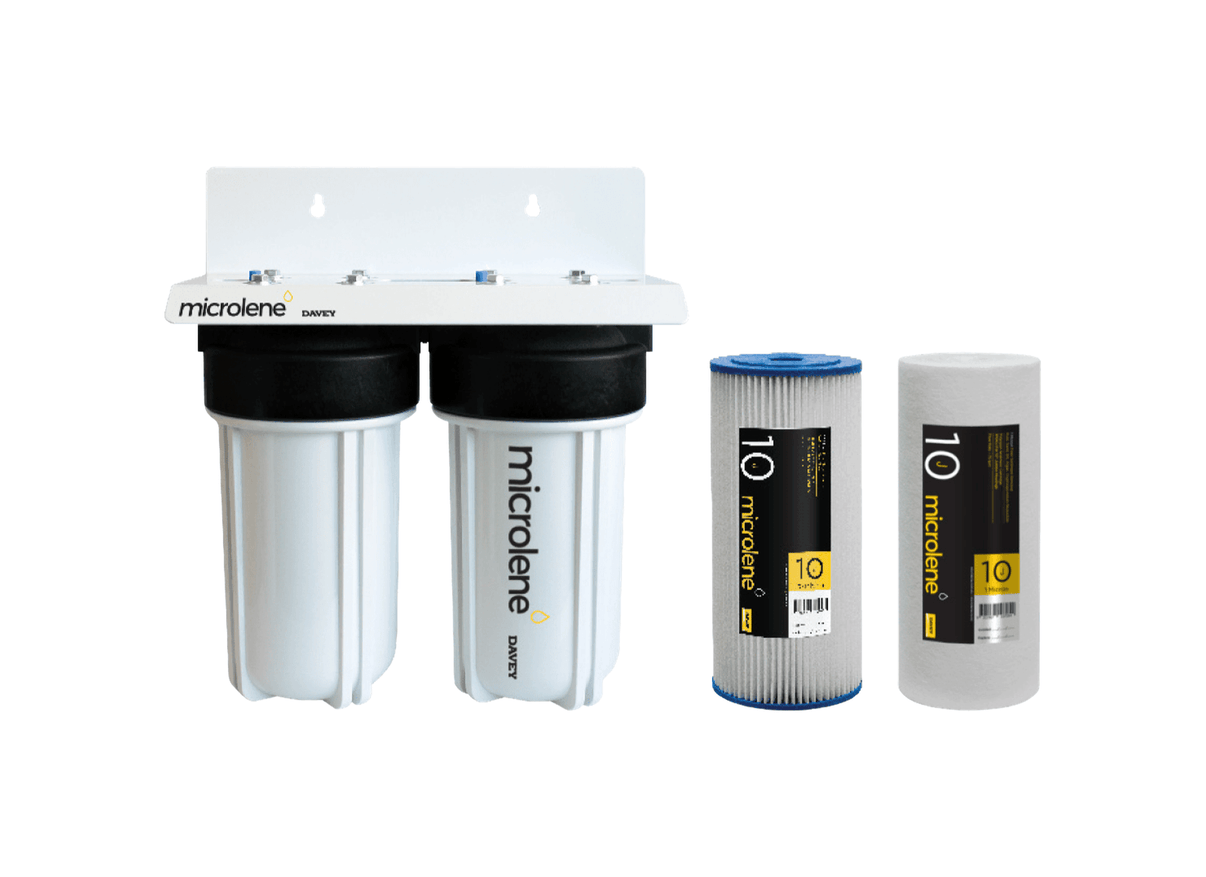

Davey Microlene KAS10J 10" Jumbo Twin Rainwater Filter Kit 20/1 Micron with Spanner

Jumbo twin filter kits for households requiring high dirt-loading capacity use the Davey Microlene KAS10J 10 inch system. This kit is for rainwater applications requiring the reduction of coarse sediment, rust, and leaf matter. It is for installation in residential loops and is matched to UV57 and UV80 models for water purification. The kit includes jumbo cartridges, providing a surface area for filtration between maintenance intervals.

Constructed from glass reinforced polypropylene, the housings are durable and resistant to environmental loads. The internal filtration pass includes a 20 micron poly pleated cartridge for the removal of larger particles from the rainwater stream. The second stage features a 1 micron poly spun cartridge for the reduction of fine particles and parasitic cysts. The assembly uses jumbo 114mm diameter cartridges to provide the required media volume.

The system operates with 25mm 1 inch BSP female connections and is rated for a maximum pressure of 880 kPa. It is specified for a recommended maximum flow rate of 125 L/min and includes a heavy-duty mounting bracket. As a passive unit, it achieves particulate reduction through its multi-stage depth and pleated media. Its large internal volume accommodates high-capacity cartridges for whole-of-house filtration applications.

Operational safety is provided by WaterMark certification and compliance with WMTS-103 licensing. The 1 micron spun filter provides reduction of parasitic cysts, while the cleanable pleated filter manages heavy seasonal sediment loads. The kit is supplied with a dedicated jumbo housing spanner and is for use on biologically safe water sources. This jumbo rainwater solution provides a professional filtration platform for medium homes.

• Manufactured with glass reinforced polypropylene jumbo twin housings
• Features a 20 micron poly pleated cartridge for initial sediment capture
• Features a 1 micron poly spun cartridge for fine particle reduction
• Specified for 25mm 1 inch BSP female inlet and outlet plumbing ports
• Includes jumbo 10 inch cartridges with 114mm outer diameters
• Supplied with a dedicated jumbo housing spanner and mounting bracket
