SKU: 96108763

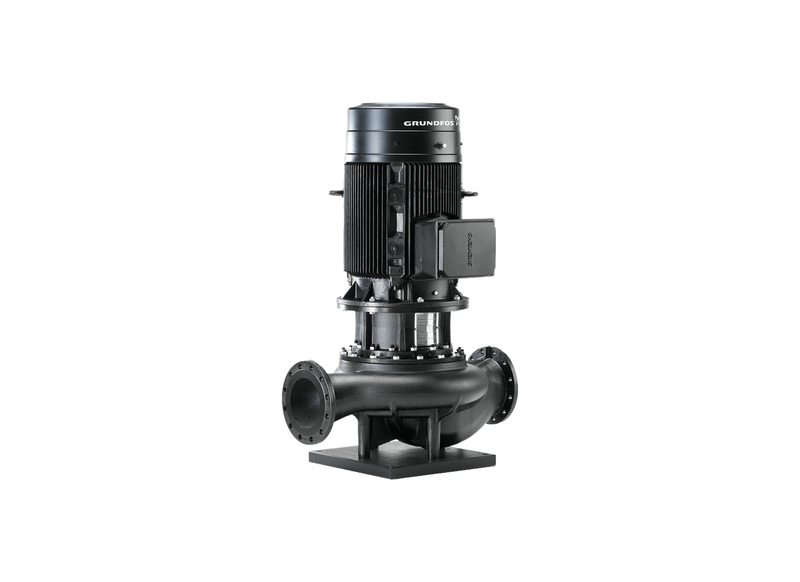

Grundfos TP 80-400/2 Cast Iron 15kW Three Phase Inline Centrifugal Pump with Bronze Impeller
Australia-Wide
(08) 9240 2992
Official Grundfos
Peace of Mind
Product Overview
The inline geometry of the TP 80-400/2 centrifugal pump features opposite DN 80 flanged ports spaced for standard pipework insertion. Motor electrical specifications call for a 415 V three-phase supply rated at 28 Amps operating current for hydronic loops.
Constructed with an EN-GJL-250 cast iron casing, the housing body features cataphoresis electrocoating surface treatment for internal corrosion protection. The internal hydraulic assembly contains a precision bronze impeller fitted with bronze wear rings and a maintenance-free mechanical shaft seal. Net product weight measures 168 kg for fixed mounting placement in mechanical plant rooms.
The motor operates on a 415 V three-phase supply rated at 28 Amps nominal operating current. Operating liquid temperatures span from -25°C to 120°C under maximum working pressures up to 16 bar. In-line opposite port geometry with DN 80 flanged connections enables mounting directly into straight pipework lines or onto foundation bases.
Motor protection features an IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistors. Top-pull-out structural design enables removal of the motor head and impeller assembly without dismantling the pump housing from connected system pipework lines during scheduled servicing routines.
Features
- In-line structural design with opposite suction and discharge ports for direct pipework line mounting.
- EN-GJL-250 cast iron pump casing with protective cataphoresis electrocoating surface treatment.
- Internal hydraulic rotor assembly incorporating a precision manufactured bronze impeller.
- Rated hydraulic output capacity achieving 40 m maximum head and 1922 L/Min flow rate.
- Standardized DN 80 flanged connection ports for commercial HVAC and heating installation.
- IP55 enclosure rating with Class F thermal insulation and integrated PTC thermistor motor protection.
- Top-pull-out mechanical layout allowing service access without removing volute casing from pipework lines.
IMPORTANT: Bulk freight charges apply. Please contact us for a freight quote before ordering.
SPECIFICATIONS
| Max Flow | 1922 L/Min |
| Max Head | 40 m |
| Power | 15 kW / 415v |
| Rated Current | 28 Amps |
| Suitable For | District heating networks |
| Body Material | Cast Iron |
| Liquid Temperature | '-25°C to 120°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What kind of power supply does this pump require to run?
It operates on 415 V three-phase power, with the Grundfos TP 80-400/2 utilizing a durable 15 kW motor rated at 28.0 Amps.
How does this pump connect to standard plumbing and flanged lines?
Discharge pipework interfaces directly with the TP 80-400/2 through a standard g 16 for quick field installation.
What maximum vertical water column can this pump maintain?
Pumping performance for the TP-80-400-2 provides up to 40 m of vertical dynamic lift, depending on system friction and line sizing.
What discharge flow rate does this pump maintain during peak operation?
Moving liquid through the system, the TP 80 400 2 maintains an operational throughput of up to 1922 L/Min during peak demand.
What corrosion-resistant materials are used in the wetted components?
Built with a resilient EN-GJL-250 body, the TP/80/400/2 maintains material durability against fluid abrasion and wear.
