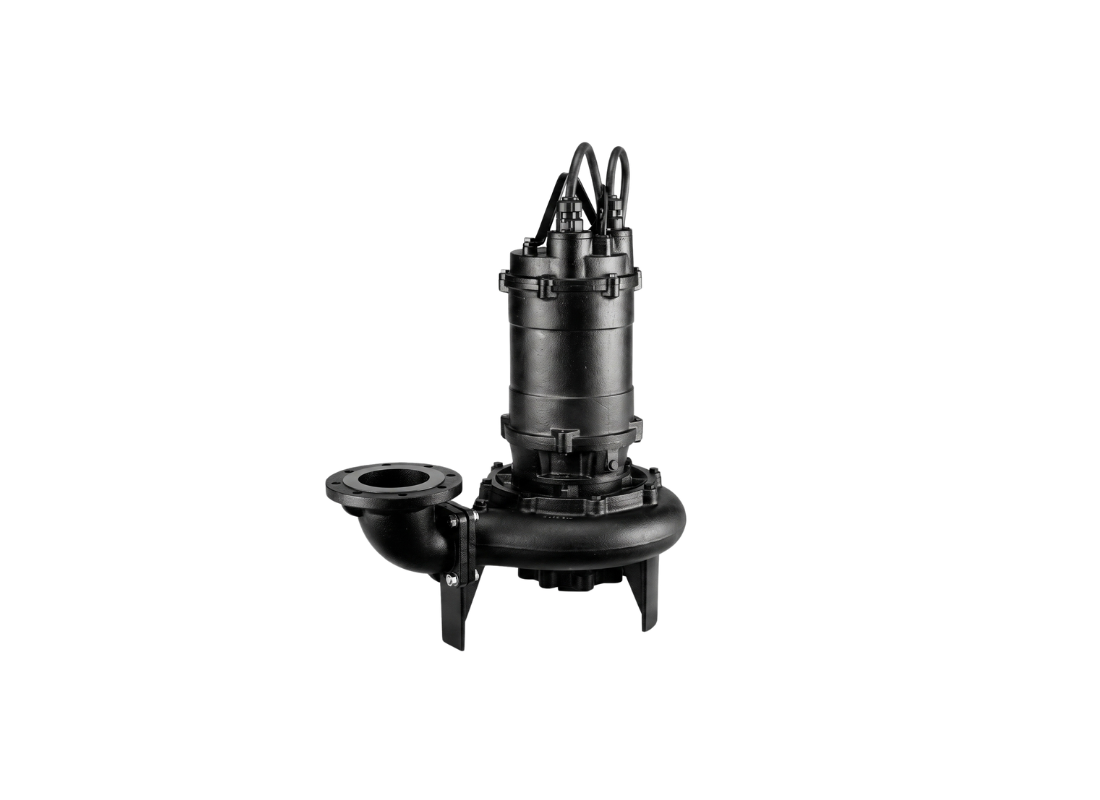

Suitable applications for this vertical unit include raw sewage pumping, waste water, and storm water transfer. It handles liquid temperatures reaching 40°C and is IP68 rated for submerged operation. The pump is designed for manual operation in civil or industrial collection pits where solids-laden fluids must be moved vertically to discharge mains.
Operating with a 2.2 kW motor, this manual three-phase unit reaches flow rates up to 1700 L/Min and a total head of 8.2 m. Drawing a rated current of 5.2 Amps on a 415v supply, the unit is equipped with 10 m of submersible power cable. The air-filled dry submersible 4-pole motor is designed for direct-on-line (DOL) starting and operates at a synchronous speed of 1500 rpm.
The enclosed single-channel impeller arrangement is designed for non-clog operation when handling fluids containing suspended solids. This hydraulic system permits the passage of foreign matter up to 76 mm in diameter. Fluid is moved through an 80 mm vertical delivery port connected to the included discharge elbow with companion flange.
Materials of construction feature a cast iron pump casing, motor frame, and impeller paired with an AISI 403 stainless steel shaft. Sealing is managed by a double mechanical seal in an intermediate oil chamber utilizing Silicon Carbide lower faces and Carbon/Ceramic upper faces. Fasteners are 304 stainless steel, and the motor incorporates an automatic thermal protector.
FEATURES
- Enclosed single-channel non-clog impeller enables the handling of 76 mm solids.
- Air-filled dry submersible 4-pole motor rated for continuous duty at 50Hz frequency.
- Shaft sealing uses a double mechanical system isolated in an oil chamber for motor protection.
- Utilizes Silicon Carbide lower seal faces for wear resistance in abrasive wastewater.
- Includes an 80 mm screwed discharge elbow with companion flange, gaskets, and bolts.
- AISI 403 stainless steel shaft and 304 fasteners provide resistance to environmental corrosion.
- Intermediate oil chamber filled with turbine oil (SAE 10W/20W) for seal lubrication.
- Double-row lower bearings provide mechanical support for the rotating assembly.
