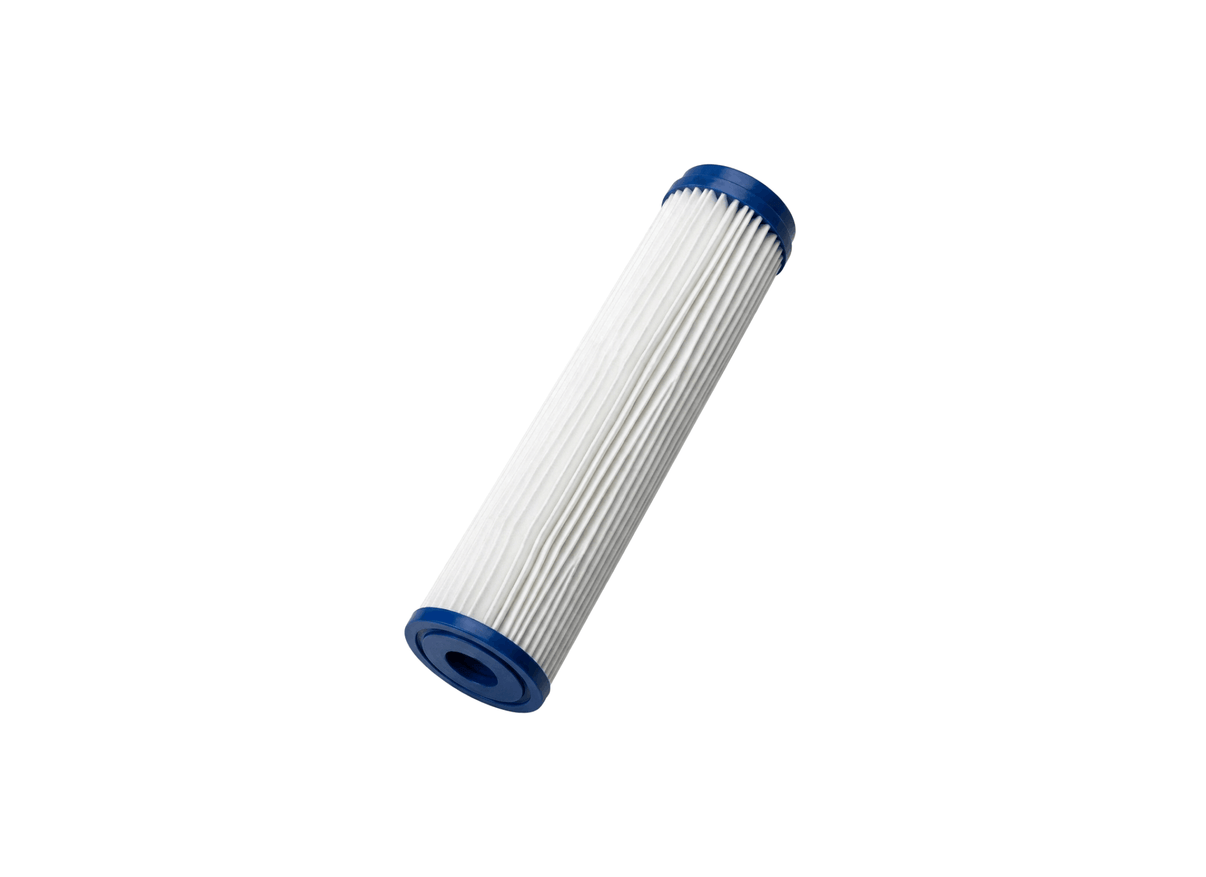

Onga 5PP20BB Pleated Polyester Sediment 5 Micron 4.5" x 20" Replacement Cartridge

Elongated to fit high-flow residential systems, this pleated polyester cartridge is suitable for point-of-entry sediment reduction. It is designed for installation inside 20-inch Big Blue filter housings, including the Stage 1 of UV7505.

Created from washable polyester media with vinyl plastisol end caps, the construction features a pleated surface area to maximize particulate holding capacity. The physical dimensions measure a nominal 20 by 4.5 inches. Polypropylene core support provides structural integrity under water pressure.

Hydraulic testing indicates an pressure drop of under 1 psi at a test flow rate of 76 Lpm, showcasing high-flow efficiency under test conditions. The cartridge is rated at a nominal 5-micron filtration level, trapping suspended solids, rust flakes, silt, sand, and fine clay. It is designed for cold water lines and operates at temperatures up to 51.7°C.

Sized for high-volume domestic water lines, the element is cataloged under part number 5PP20BB. Synthetic non-cellulose material resists decay, allowing for use in chlorinated and non-chlorinated applications. Servicing guidelines recommend replacing the cartridge every 6 to 12 means.

FEATURES

• Pleated polyester construction allows repeated washing and reuse.
• Tested and certified by NSF International to NSF/ANSI Standard 42.
• Vinyl plastisol end caps provide stable sealing inside 20-inch sumps.
• High dirt-loading capacity is provided by the pleated surface area design.
• Resists chemical degradation and bacterial attack on chlorinated water.
• Nominal 5-micron filtration rating captures very fine silt and sand.

Warranty: Manufacturer warrants this product against defects in materials and workmanship under normal use and service for a period of one year from the invoice date.
